AFILADORA DE CUCHILLAS

PARTE: 2GB-JC-312 - AFILADORA DE CUCHILLAS PARA MOLDURADORA

New with Warranty

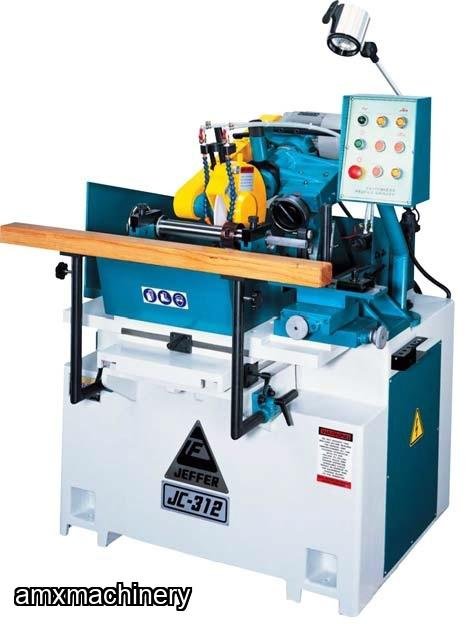

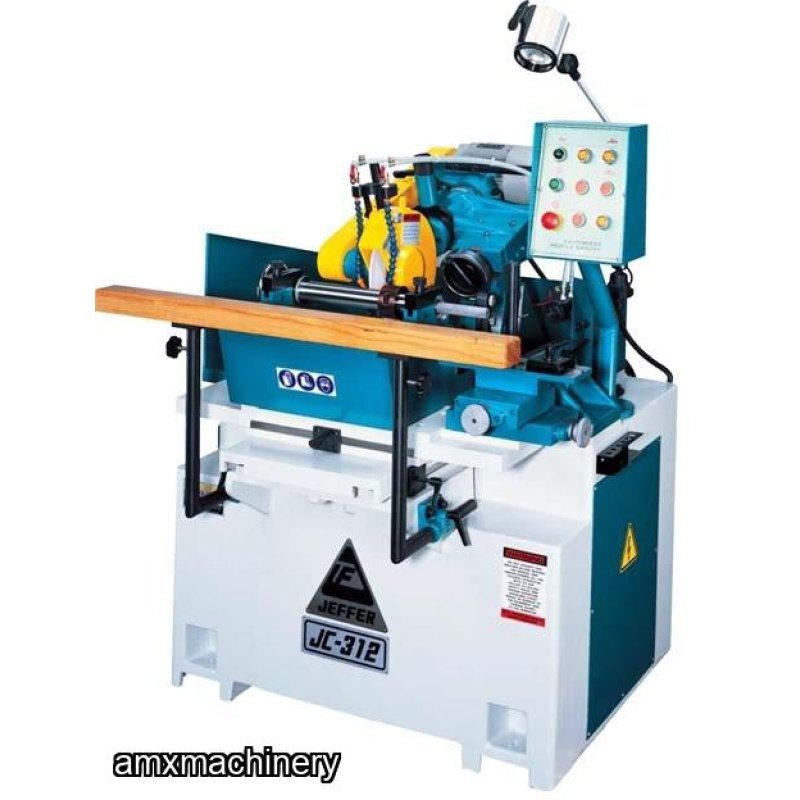

We offer the Jeffer JC-312-GT profile grinder for 1:1 profi le grinding on all your moulding and planing knives. Designed much like the German profile grinders that utilize a template, with additional features at a much more competitive price. We sell this model loaded with all the extra features for no extra charge.

The larger capacity is able to sharpen heads up to 12” long x 12” diameter.

Standard features include; stainless steel flood coolant tank w/ 1/8 hp pump, .0002" tolerance cross roller bearing table, choice of mandrel diameter sizes, side clearance tilting, diamond point side dressing, 2hp adjustable grinding wheel RPM, & more! Uses CBN and Diamond wheels hubs, up to 10" wheel diameters.

Specifications:

Grinding Capacity:  Cutters 12" Long x 12" Diameter

Work Table (Max.):  Left to Right 12.6" Travel

Back-Front:  5" of Travel In / Out

Grinding Wheel Size (Standard): 225 Diameter x 60mm Bore

Optional Grinding Wheel Size: 10" Diameter x 1.25" Bore

Side Clearance Tilt: 5°, 10°, & 15° Left & Right

Back Relief Angle Adjusts: 10° to 30° Adjustable

Grinding Wheel RPM:  1,720 to 2,940 RPM

Wheel Motor:  2 HP Seimens TEFC (1/6 HP Coolant Pump)

Power Supply: 240 Volt / 3 PH (480V Optional) Teli Electronics

Grinder Dimensions:  41" L x 48" W x 54" H

Crate Size:  52" L x 52" W x 62" H

Gross Weight:  2,420 LBS / 2,070 LBS Net

Arbor Mandrel Diameters: 1-1/4", 1-1/2", 1-13/16", 2-1/8", 40mm, etc.
