Descripción

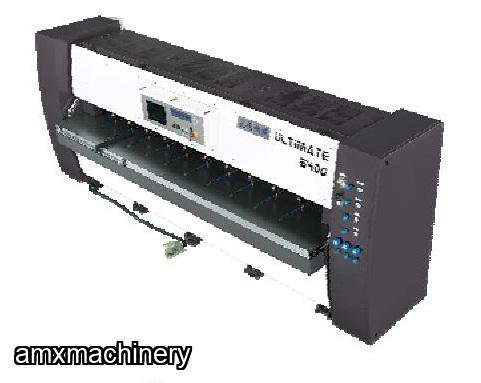

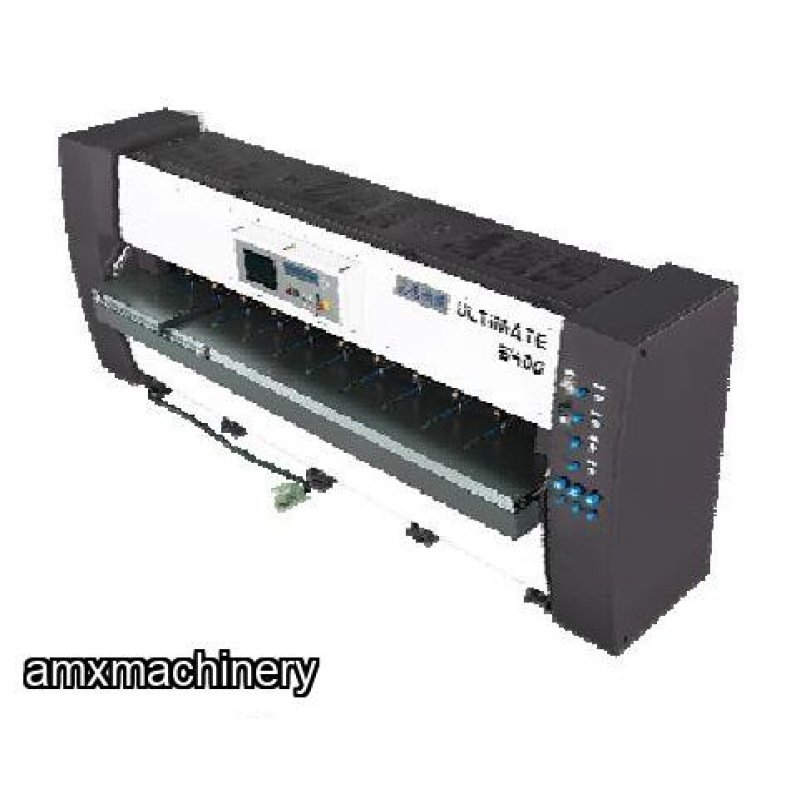

PARTE # 3NN-ULTIMATE3400 - ARMADORA DE SABANAS DE CHAPA – 3400 MM
PARTE # 3NN-ULTIMATE2800 - ARMADORA DE SABANAS DE CHAPA – 2800 MM
Machine Specification
Model | UltiMate 3400 | UltiMate 2800 |
Veneer Strip Length | 450 ~ 3400 mm | 450 ~ 2800 mm |
Veneer Strip Thickness | 0.25 ~ 1.5 mm | 0.25 ~ 1.5 mm |
Veneer Strip Width | min. 75 mm (85 mm for 1 strip) | min. 75 mm (85 mm for 1 strip) |
Production Speed | up to 15 ~ 20 cycles/min. | up to 15 ~ 20 cycles/min. |
Electric Power | approx. 28 kw | approx. 23 kw |
Compressed Air | 5 bar | 5 bar |
Dimensions (L x W x H) | 4800 x 1800 x 1800 mm | 4200 x 1800 x 1800 mm |
Net Weight | approx. 6200 kg | approx. 5300 kg |
Color | RAL 8019 / RAL 9003 | RAL 8019 / RAL 9003 |
The UltiMate crossfeed splicing machine is designed for glue-spliced joint for long and panel-sized veneer faces.
Veneer bundles can be well-cut straight with double knife guillotines and then pre-glued on the edges as
preparation. The pre-glued veneer strips are fed into the machine manually with feeding stoppers for fast and easy
operation. The efficient production output of the crossfeed splicing machines is a great deal faster than the
longitudinal splicing machines, especially beneficial for long veneers. We also supply Automatic Stacking
System with Trimming as optional equipment for a big step towards the automated production. Together with
our Double Knife Veneer Guillotine, CutMate D series, Double Sided Veneer Glue Applicator, GlueMate
700, and Veneer Fanning Machine, FanningMate, a full set of veneer splicing line is completed.
Features
- veneer aligned after clipping
- JAPAN YUKEN hydraulic system
- JAPAN MITSUBISHI PLC control system
- self-diagnosis system for fast maintenance
- infeed guides for veneer jointing alignment
- air cleaning system for photoelectric sensors
- program setting for different species of veneers
- GERMANY FESTO pneumatic system
- safety guard of light curtain with European safety standards
- fix-length (cut-to-size) and endless (fix-jointed) splicing modes offered
- pre-feeding stopper system to avoid mismatching in the beginning of feeding stage
- hydraulic driven clipper for the pre-selected width of veneer faces
- “clear-and-easy” operation control panel with user-friendly PLC based interface touch screen
- veneers with the thinness as low as 0.2 mm spliced (certain species of veneers)
UltiMate series
- independent cylinders for crossbeam pressure for thin veneers splicing even possible with extremely thin
veneers
- remote monitoring maintenance system for faster access from the manufacturer in case of machine breakdown
- In case of machine breakdown, our service personnel can check customers’ PLC program via the internet so as to solve the problem in time
