Descripción

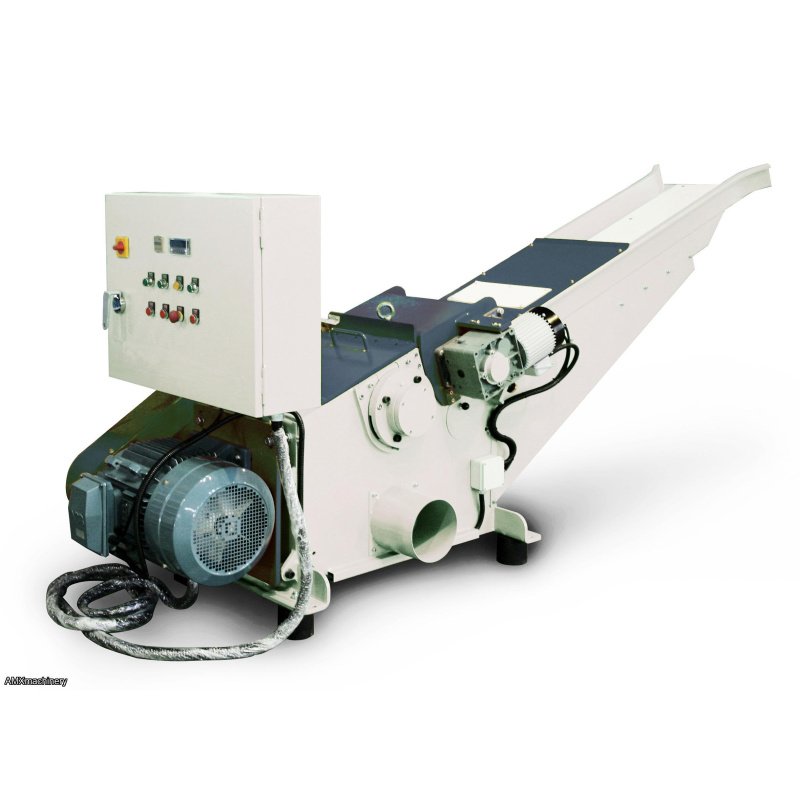

PARTE: 2TA-WG-1502H - ASTILLADORA - HORIZONTAL - 15 PULGADAS
Features:
- A specially designed, powerful crusher for different materials such as wood, MDF, particle board,plastic, rubber, corn cob, etc.
- Excellent wearing ability and impact-resistant for time & labor saving.
- Large busting capacity and easy feeding system.
- The shaft rest for the cutter head is constructed by round hollow with special angle to keep cooling for long hours' usage
- Cutter head angle cutting design allows aggressive cutting rates & high speed shredding of waste with maximum durability.
- Movable screen for changing the size of chips and easy to clean-up.
- Energy efficient & quiet running industrial motor.
SPECIFICATIONS | WG-1502H | WG-2502H | WG-1504HC | WG-2404HC |
Entrance Capacity (L x W) | 15-3/8" x 2-3/8" | 25" X 2-3/8" | 15-3/8" x 4" | 24" X 4" |
Rotary Cutter (Sets) | 18 | 30 | 18 | 30 |
Conveyor In-feed Length | -- | -- | 98” | 98” |
Stationary Cutter (Sets) | 4 | 4 | 4 | 4 |
Cutter Speed (RPM) | 575 | 540 | 680 | 680 |
Standard Finish Size or Option | 1/2" | 1/2" | 1/2" | 1/2" |
Cutter Head Motor | 20 HP | 30 HP | 20 HP | 30 HP |
Feed Motor | -- | -- | 1 HP x 2 | 1 HP x 2 |
Dust Hood | 8” x 1 | 8” x 1 | 8” x 1 | 8” x 1 |
Machine Size (L x W x H) | 126" x 53” x 36" | 126" x 53” x 47" | 155" x 51" x 37" | 155" x 51" x 46" |
