Descripción

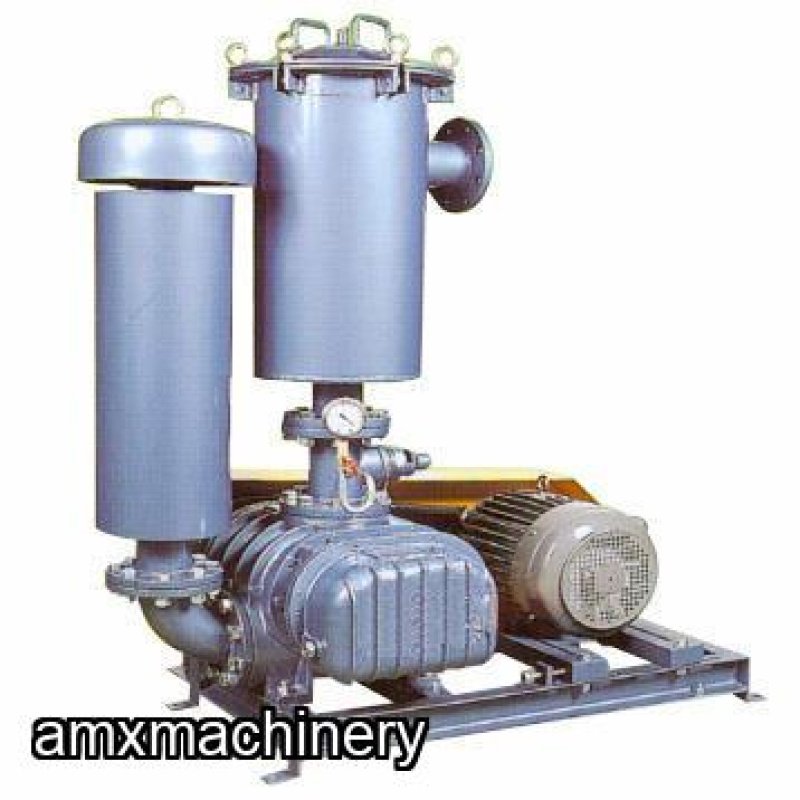

PARTE: 2TA-VC-RT07 – BOMBA DE VACIO – 15 HP – ROOTS TYPE
(VC-RT15) Roots Type Vacuum Blowers
Because there is no friction between the moving parts, the Root Blower allows high-speed rotation for offer a combination high flow-rates vacuum, high exhausting efficiency in medium or high vacuum, wide working range, obvious energy-saving results.
High automation, simple operation, easy maintenance, safe, reliable and durable running.
The Root Blower is a displacement-discharge blower as well as a suction type vacuum pump. The unit uses 2 rotors, in the shape of , rotating in opposite directions, for compressing or extracting the air to enhances precision and efficiency
It also minimizes the maintenance cost and prolongs the life span of the blower to a synchronized gear set. While rotating, the rotor-to-rotor and rotor-to-chamber gaps are maintained fractions of millimeters; therefore no lubrication is required, thus delivering non-contaminated air.
TEFC motor
Specification | VC-RT15 | VC-DR07 |
Max. Pressure (in. Hg) | 13 | 25 |
Max. Capacity (CFM) | 459 | 177 |
Speed (RPM) | 3650 | 1420 |
Motor Power | 15 HP | 7.5 HP |
Inlet size | 2" | 2" |
Weight (lbs) | 680 | 350 |
Machine Size | 56" x 29" x 58" | 38" x 23" x 19" |
