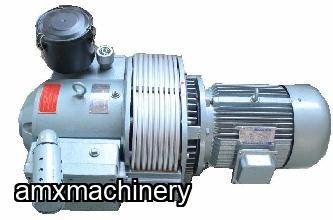

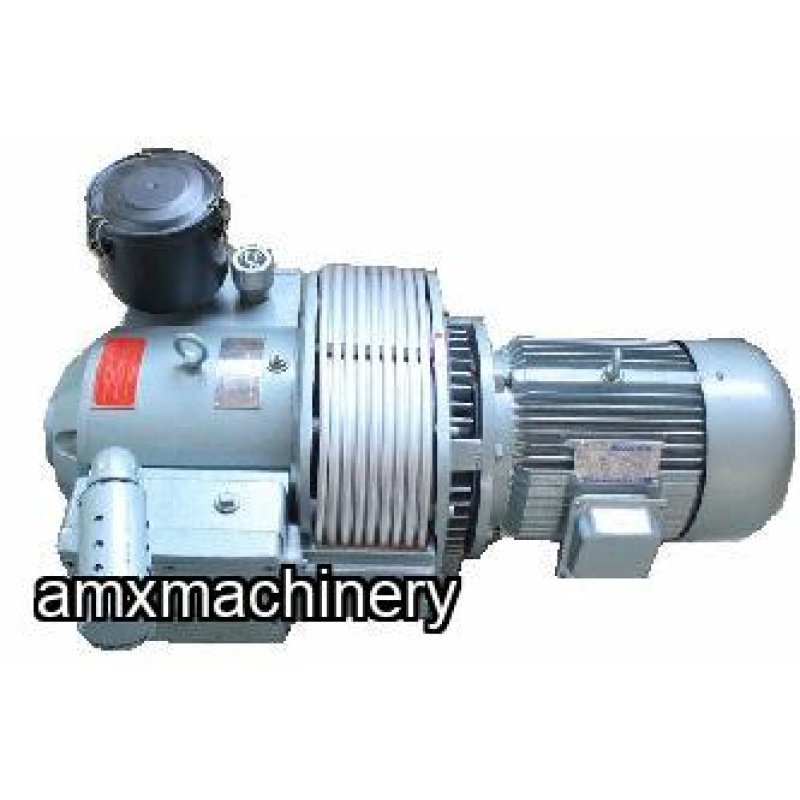

PARTE: 2TA-VC-DR07 – BOMBA DE VACIO – 7.5 HP - DRY ROTARY VANE
(VC-DR07) Dry Rotary Vane Type Vacuum Pump
Single stage rotary vane vacuum pump are directly connected the outer covers of aluminum alloy pump with the electrical motor, for efficient and heat dissipation.
The pump are advanced in stable functioning and low noise for acquiring High vacuum pressure, high water vapor tolerance
Dry operation for oil-less and direct drive with no belts or gears to ensure low energy consumption usage
Compact construction, light weight, low noise.
Equipped with the suction filter and exhales muffle, with large filter area and quick change lock for easy maintenance
TEFC motor
Specification | VC-RT15 | VC-DR07 |
Max. Pressure (in. Hg) | 13 | 25 |
Max. Capacity (CFM) | 459 | 177 |
Speed (RPM) | 3650 | 1420 |
Motor Power | 15 HP | 7.5 HP |
Inlet size | 2" | 2" |
Weight (lbs) | 680 | 350 |
Machine Size | 56" x 29" x 58" | 38" x 23" x 19" |
