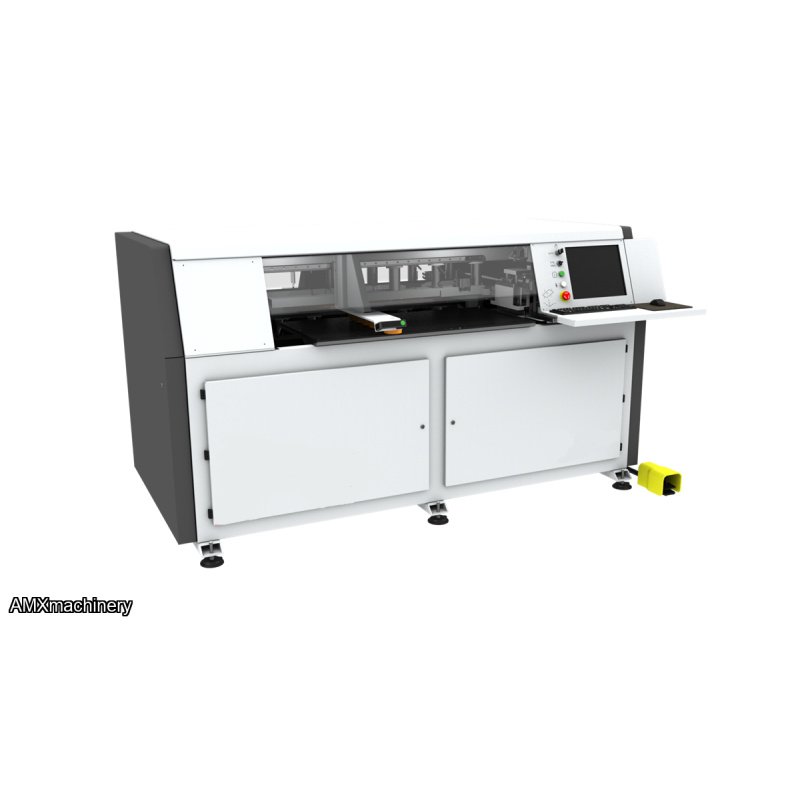

PARTE : 2JG-MAG-EVOLUTIONFLEX - CENTRO DE MAQUINADO - EVOLUTION FLEX CNC
Accurately routes, drills, and grooves from underneath with automatic operator return or can be unloaded from the back.
This machine is designed for one man operation and practically zero set-up time
It is capable of routing, boring both vertically and horizontally, and for hinge holes, while also providing a grooving saw
It has an integrated control panel with an industrial PC using Windows Operating System, 17" color monitor, CD, keyboard and mouse
- TPA "PRO" on board software
- The machine is equipped with (1) Electrospindle router, (12) Vertical drills, (3) 1 + 1 Horizontal drills (TH1, TH2 and TH3), (1) Grooving Saw
- (4) Horizontal drills are in X-axis and (2) in Y-axis
- A laser measuring tool is included to determine the dimensions of the panel and to reset the boring process according to the real length of the panel itself
- Automatic Lubrication of Y and Z axis
- The entire head unit is moved via ball screws and controlled by brushless servo motors with automatic timed lubrication
- A panel holddown presser ensures the panel is perfectly flat to provide accurate assembly
- Air flotation machine surface makes handling the panel easy
- INCLUDES a starter tooling package
TECHNICAL SPECIFICATIONS:
- Voltage: 230V 3-Phase
- 3.6 kW HSK32 18,000 RPM Electrospindle
- Max boring depth: 60 mm
- X/Y axis Speed 42 m/min (137 ft/min), Z axis 10 m/min (32 ft/min.)
- Grooving Saw with 120 mm diameter and 4 mm kerf
- Minimum Panel Size: 300 mm (11.81") x 75 mm (3") x 8 mm (.31") thick
- Maximum Panel Size: 10000 mm (393.7") x 1000 mm (39.36") x 60 mm (2.4") thick
- Dust collection requirements: 700 CFM at 98 FPS air speed
- Machine dimensions: 92" x 57" x 54" tall
- Weight: 1870 lbs
