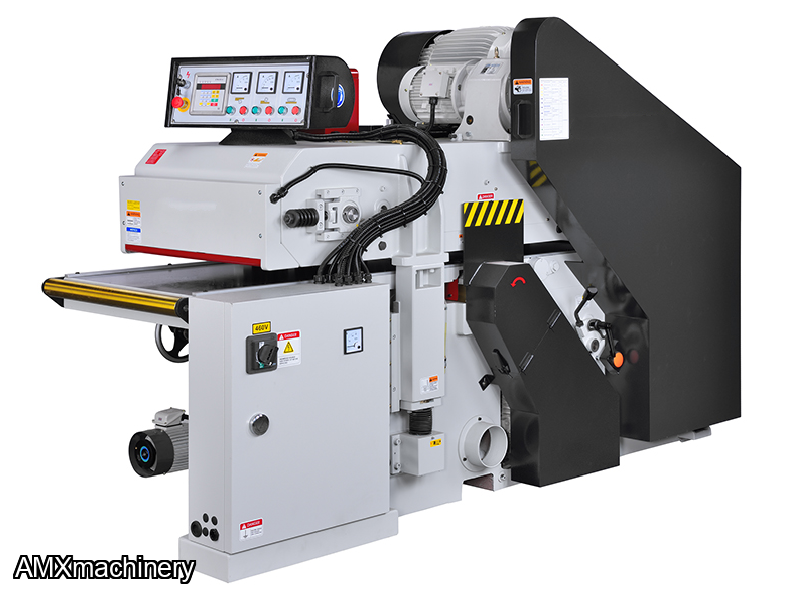

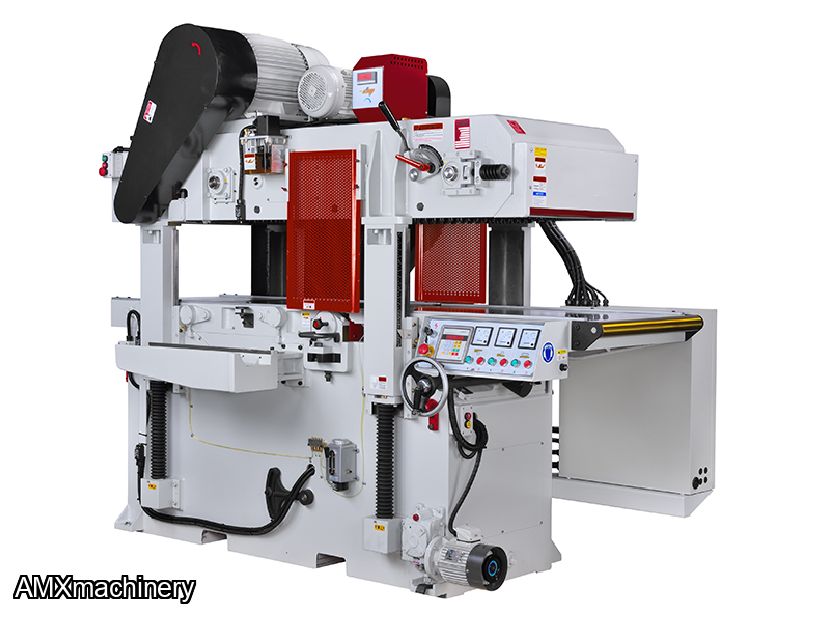

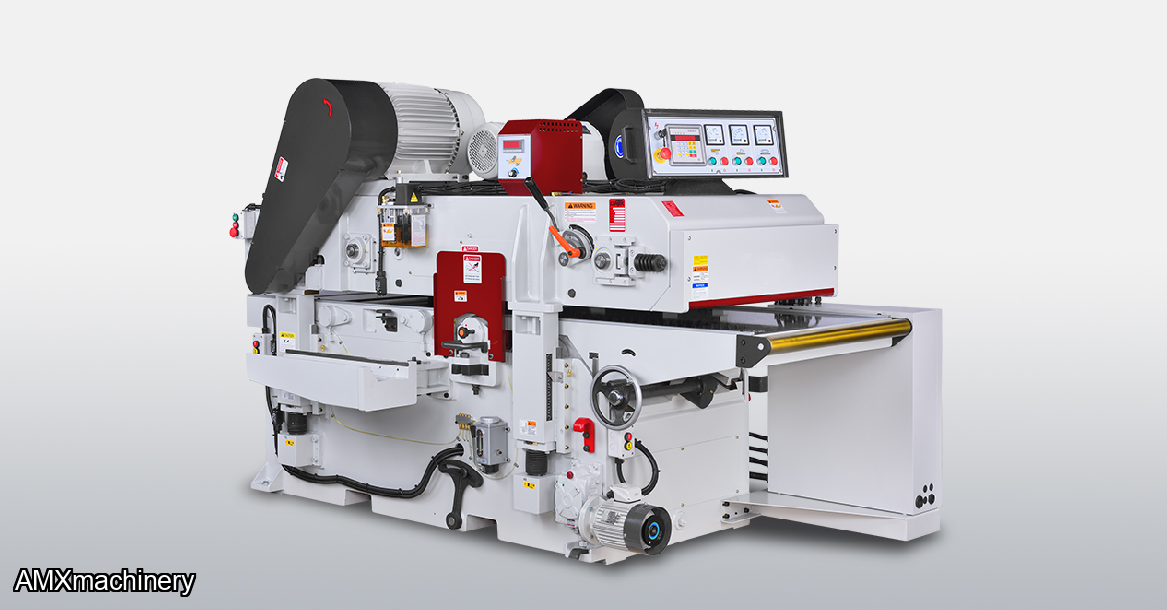

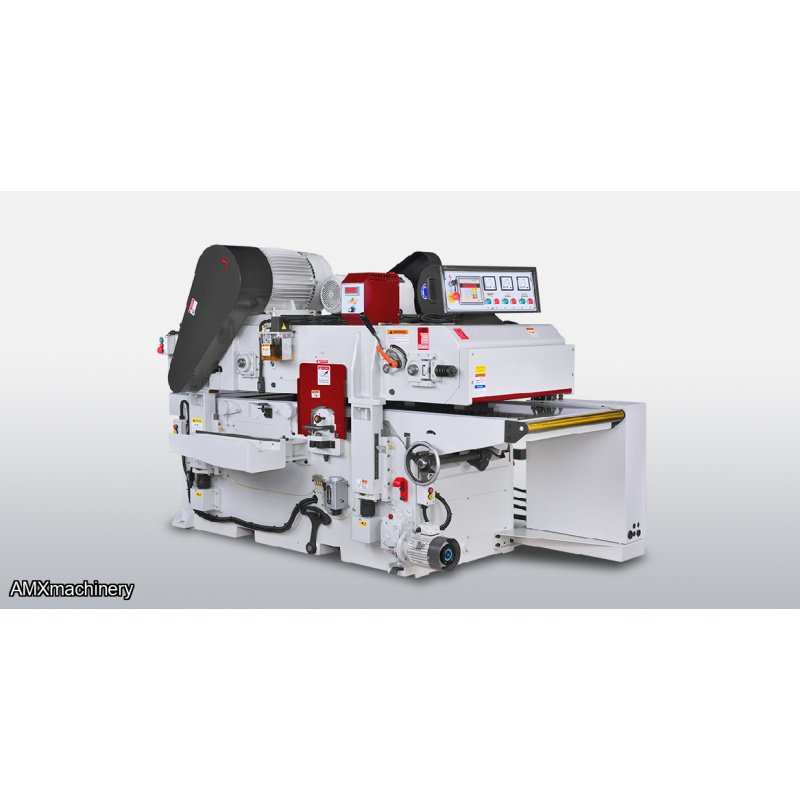

CEPILLO 2 CARAS 25" X 8"/16"/20"/24"

Has a robust cast-iron body for industrial planing day in and day out.  The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal.  The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head & feed assembly automatically move in place.

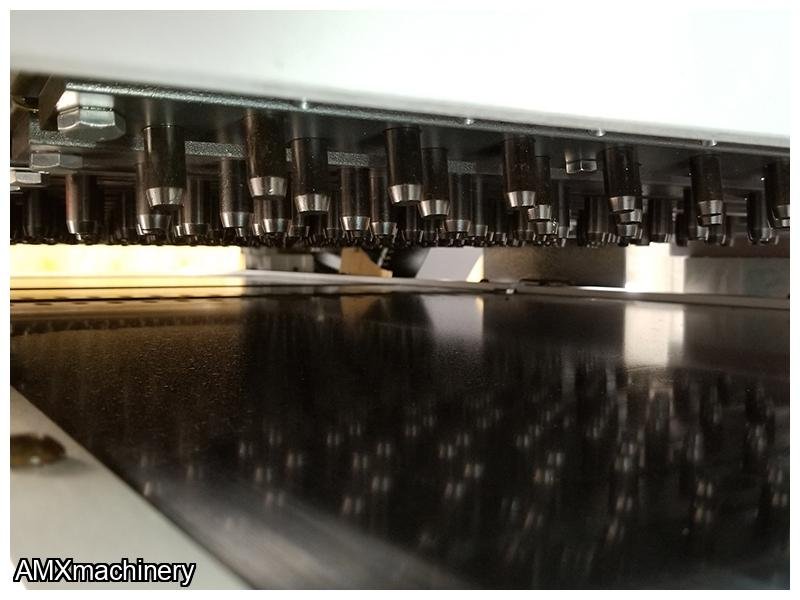

• Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head

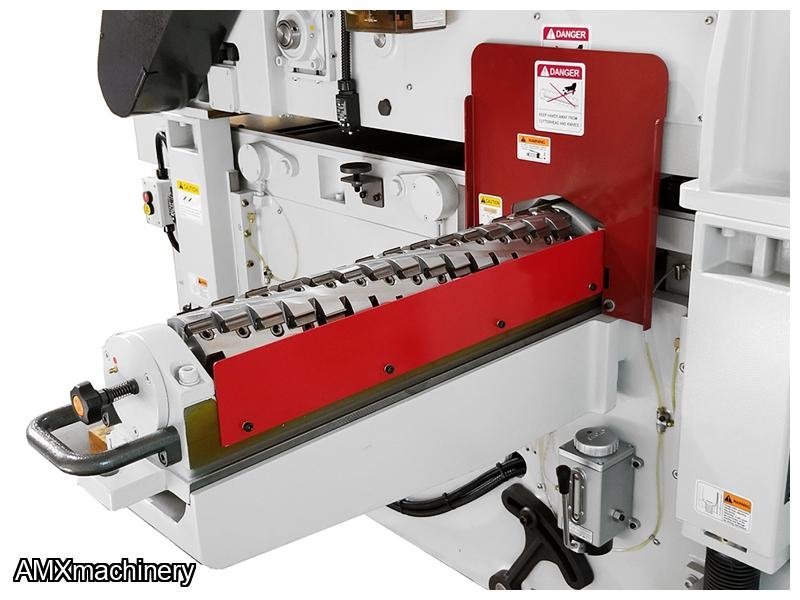

• Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
• Heavy-duty cast-iron machine body and table for vibration free cutting
• Digital electronic thickness adjustment in INCH and MM (Inch = 0.001” / mm = 0.01mm resolution) for precise thickness control

• 25″ x 8″ capacity as standard with optional 16″, 20″, 24″ thickness capacity
• Cutterheads are spiral insert type with six (6) rows of carbide inserts

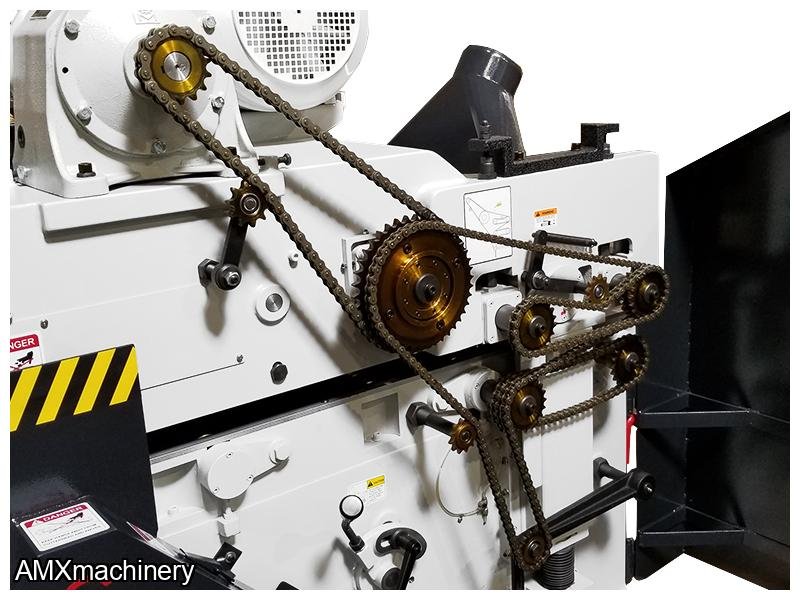

• (2) driven and (1) idle bed roll for superior feeding of even difficult material
• Swiveling control panel for more ergonomic access to machine controls

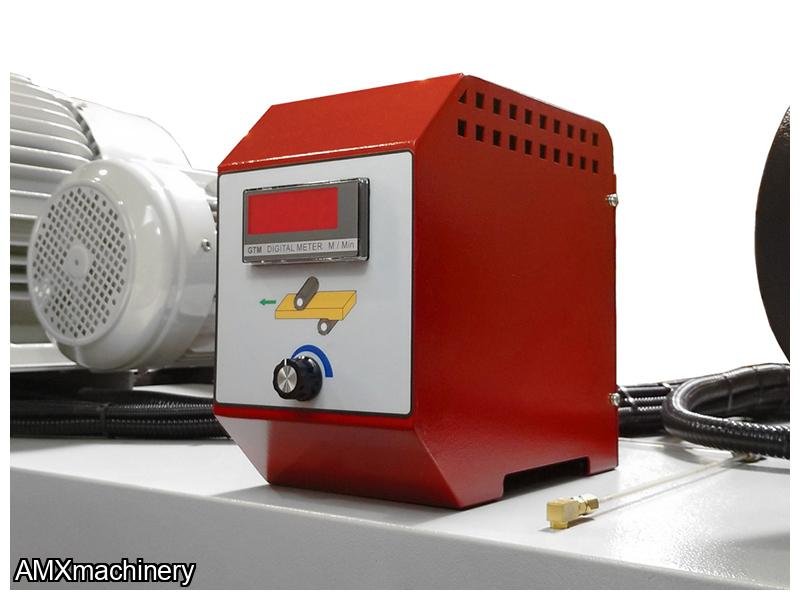

• Inverter variable speed control with feed speeds from 26 to 80 FPM

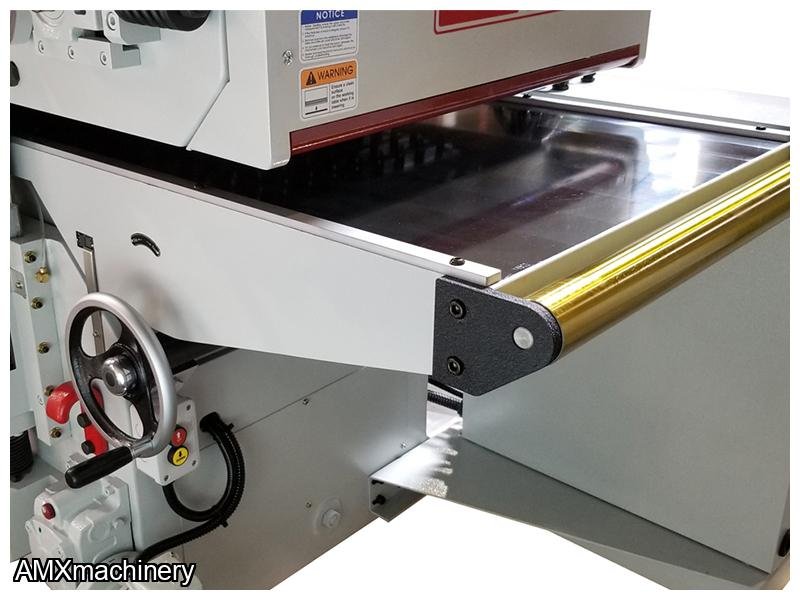

• Easy to access external handwheel adjustment of infeed bed
• Hard chromed worktable for high wear resistance

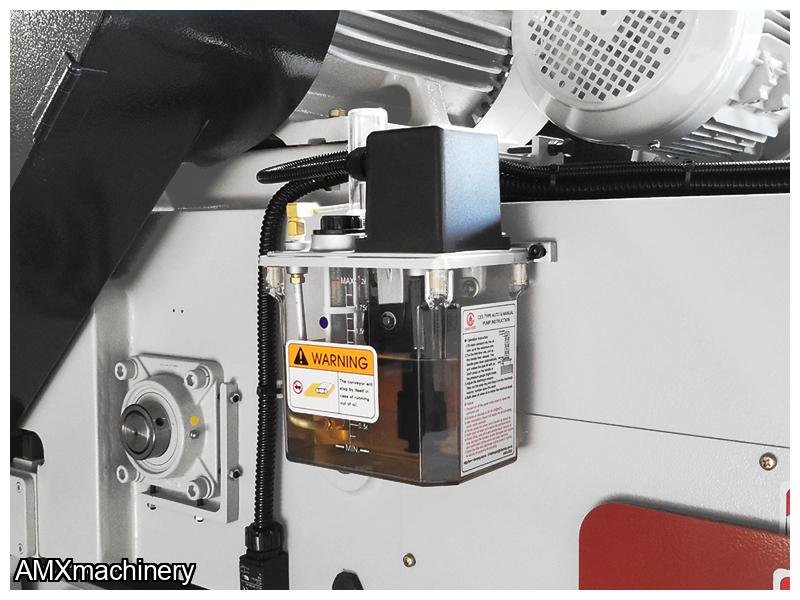

• Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways

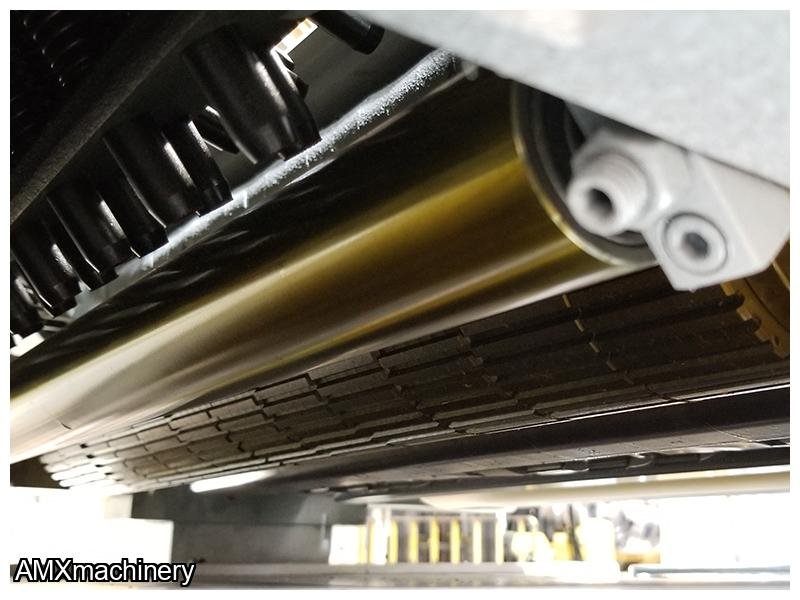

• Section chipbreaker and sectional feed roller before top cutterhead
• Rubber outfeed top roller to prevent chip marking
• Over thickness safety shut-off bar across infeed.
• Ammeter for each motor on control panel to monitor motor load
