Identificador: 126
Abierta
Descripción

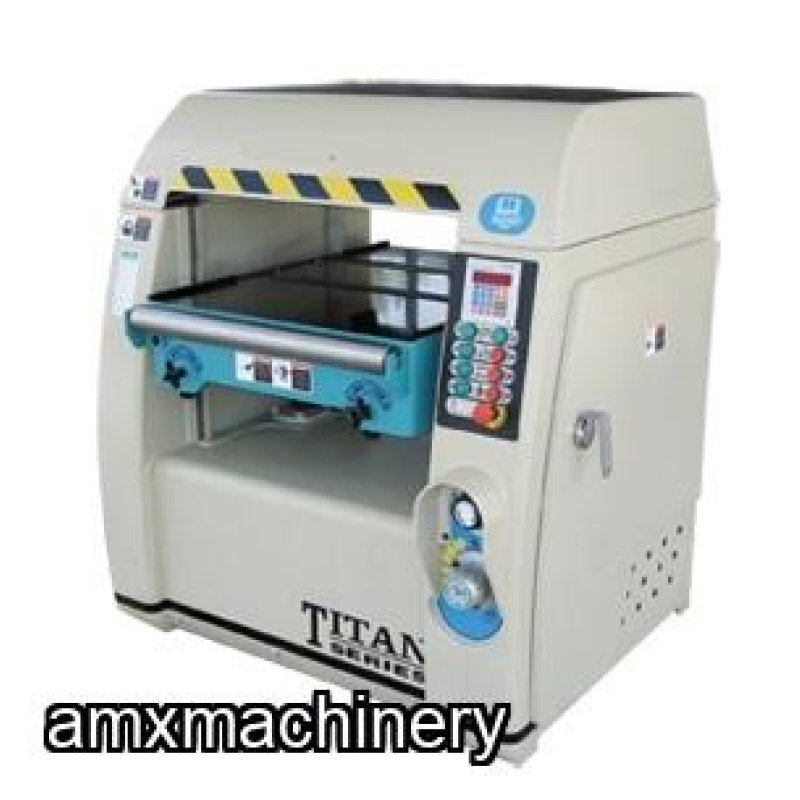

2EX-XP124T – CEPILLO 24” ANCHO – MOTOR 15 HP – TITAN – CABEZAL HELICOIDAL
2EX-XP124T – CEPILLO 26” ANCHO – MOTOR 20 HP – TITAN – CABEZAL HELICOIDAL
Nuevo con garantía
Cabezal Helicoidal VECTOR
Features:
VECTOR or straight knife cutter heads
11-3/4” thickness capacity
High Horsepowers: 20 HP & 15 HP
6000 RPM cutterhead
Powered top and bottom bed rollers
Motorized table elevation
Digital thickness controller
Solid cast-iron construction
Triple v-belts
Sectional chipbreakers
Externally adjustable front and rear bed rollers
Sound deadening enclosure
Available 208-230V or 460V
Powered top and bottom feed rollers
| 2EX-XP124T | 2EX-XP-126T |
Width | 24" | 26" |
Main HP | 15 HP | 20 HP |
Feed HP | 1 HP | 1 HP |
Elevation HP | 0.5 HP | 0.5 HP |
Max Thickness | 11.75" | 11.75" |
Min Thickness | 0.375" | 0.375" |
Max Cut | 0.375" | 0.375" |
Min Lenght | 10.5" | 10.5" |
Cutterhead RPM | 6000 | 6000 |
Feed Speed | 20-75 ft/min | 20-75 ft/min |
CFM Requirements | 1100 | 1100 |
Thickness Adjustment | PLC Controller | PLC Controller |
Bed Roller Adjustment | External | External |
Powered Bed Rollers | Top and Bottom | Top and Bottom |
Amps (230V / 460V) | 40A / 20A | 52A / 26A |
Weight | 2500 lbs | 2675 lbs |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
SIERRA TRONZADORA - PENDULO - MOTOR 7.5 HP - DISCO 22”
PARTE: 1FJ-020 - SIERRA TRONZADORA - PENDULO -
MOTOR 7.5 HP - DISCO 22”
Nueva con garantía – 6 meses
sobre defectos de fabricación en partes mecánicas
Disco 22” diámetro
Motor 7.5 HP, 220/440V, 3
fases
Medida maquina: 48"
largo x 33" ancho x 48" alto
Peso: 250 kg
AMXmachinery
ROUTER CNC - MODEL P
PARTE: 2TA-P-0408 - ROUTER CNC - MESA 4' X 8' - MOTOR 3 HP - CON MESA DE VACIOAll “SERVO MOTOR” driving systemPC base CNC controller is set up to accept standard G code programming formats along with on board conversational applications.User friendly IC Control System powerful closed positioning loop software with Ethernet interface for data transfer from PC.All axis are driven by brushless type high torque AC servo motorsOptional CAD/CAM system can create and edit part programs then send to...
AMXmachinery
MOLDURADORA – 5 CABEZALES - SCM SUPERSET 23
PARTE: 12107 – MOLDURADORA – 5 CABEZALES - SCM SUPERSET 23Usada – Muy buenas condicionesMaximum working width of finished workpiece 9”Maximum workpiece thickness 4-3/4”Feed speed 20 – 98 ft/minFeed motor 5HPSpindle diameter 1-13/16”Speed of spindle 6,000 RPMMin/Max diameter of profiling tools 100/200mmMin/Max diameter of planer tools 120/140mmLength of infeed table 78”Dust hood diameter (Top horizontal) 6”Dust hood diameter (All others) 5”Shipping Footprint: 140 (length) x 86...
AMXmachinery
ENGOMADORA DE 40” - MARCA BLACK BROTHERS
PARTE: 11752 - ENGOMADORA DE 40” - MARCA BLACK
BROTHERS
2 - ENGOMADORA DE 40”. ENGONADORA MARCA BLACK
BROTHERS, ACCIONADA POR 2 RODILLOS DE 44” DE LARGO Y 6 ½” DE DIAMETRO, CON
ELEVADOR OPERADO CON CONTROL BARS, MOTOR IZQUIERDO CON PERILLA MANUAL Y
ELECTRICA, CONTROL DE MANO DERECHA, ENGOMADO EN MEDIDAS DE 0.8 MM A 2.5
PULGADAS DE GROSOR CON UNA CAPACIDAD DE PROCESO DE 88 PIES POR MINUTO, MOTOR DE
3 HP Y MOTORREDUCTOR DE 1.5 HP.
