Identificador: 1939
Abierta
Descripción

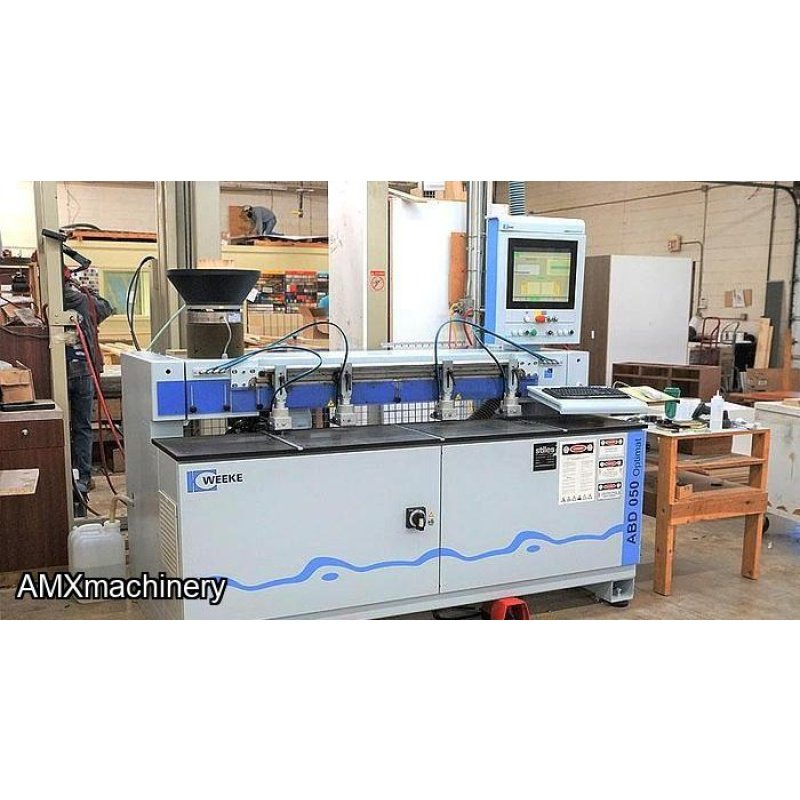

PARTE: 12381 - CNC TALADRO, ENGOMA, INSERTA – WEEKE
USADA – MUY BUENAS CONDICIONES
Year 2013
Model Optimat ABD-050
Year 2013
460 volt three phase, 60 hz, 10 amps
(1) horizontal CNC controlled X-axis drilling head
0.55 kw drill head drive motor
Spindle speed 7500 rpm
Max tool length 70 mm (2.75")
(1) glue injector with dowel insertion head
Top mounted vibrating dowel hopper feeder
Pneumatic actuation of drill head stroke and dowel insertion head
(2) independent table work zones (can be used together for full working width)
Max working width (both zones) 1260 mm (49.6")
Max working width (single zone) 620 mm (24.4")
Min working width 50 mm (1.96")
Workpiece thickness range 10 mm to 60 mm (0.39" to 2.36")
Dowel capacity 8 mm dia. X 30 mm length or 8 mm dia. X 35 mm length
Foot pedal table zone clamp controls
(4) top adjustable width pneumatic stock clamps
89" wide x 20" long machine work table size
36" table work height
Front mounted operator computer control station
17" color display screen with keyboard and mouse
Beckhoff computer C9900-1374 V1.1
Intel Core 2 Duo CPU T7400 @2.16Ghz
1.99 GB of RAM
Microsoft Windows Xp operating system
Hand held bar code scanner
Weeke machine software
Includes machine manual
