Identificador: 1746
Abierta
Descripción
PARTE: 2CK-UFO102B

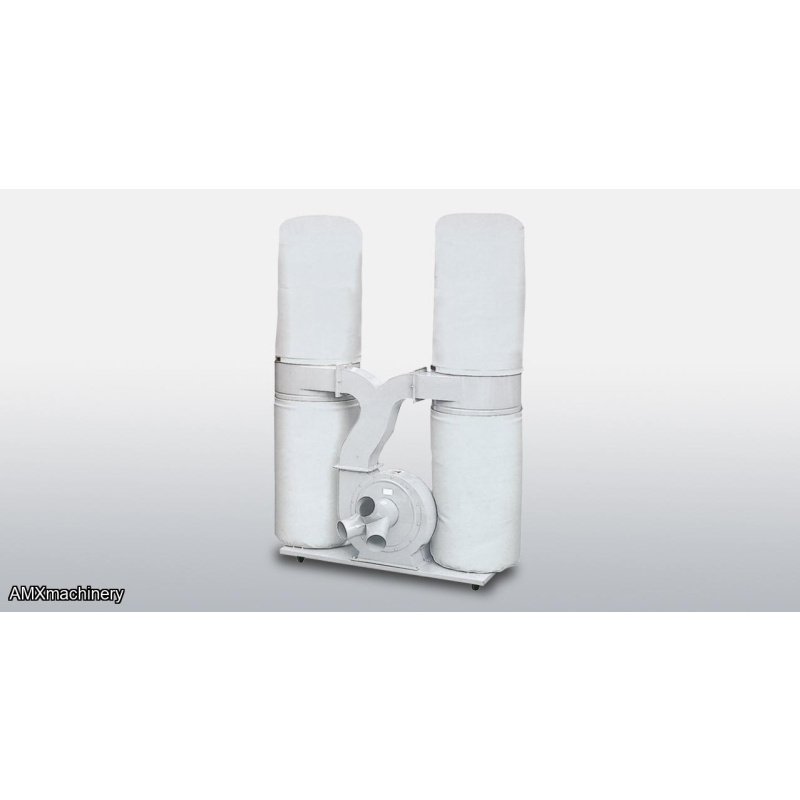

Is ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on casters so it can be taken to where it is needed in the shop.
- 3HP generating 1883 CFM
- Base is mounted on casters so it can be moved around the shop to where it is needed
- Durable cotton filter bags
- CSA / UL magnetic starter included
KEY ADVANTAGES
- 3HP Motor
- 1883 CFM
- 6” main inlet with removable outlet with (3) 4” ports
|
CFM |
1883 CFM |
|
Motor |
3 HP |
|
Main inlet diameter |
6″ |
|
Connector inlet diameter |
(3) 4″ |
|
Bag Volume |
10.48 cubic feet |
|
Static pressure of water |
9.26 inch |
|
Top bags (2) |
18.9″ x 31 ½” |
|
Bottom bags (2) |
18.9″ x 31 ½” |
|
Electrics |
230/1/60 = 17 Full Load Amps |
|
Net weight |
169 lbs |
|
Shipping weight |
180 lbs |
|
Shipping dimensions |
48″ x 23″ x 23″ |
|
Noise Level |
80dB |
