PARTE # 2EV-6600 - CORE BUILDER - EVANS 6600
Maquina para hacer el centro o la base de las cubiertas de cocina

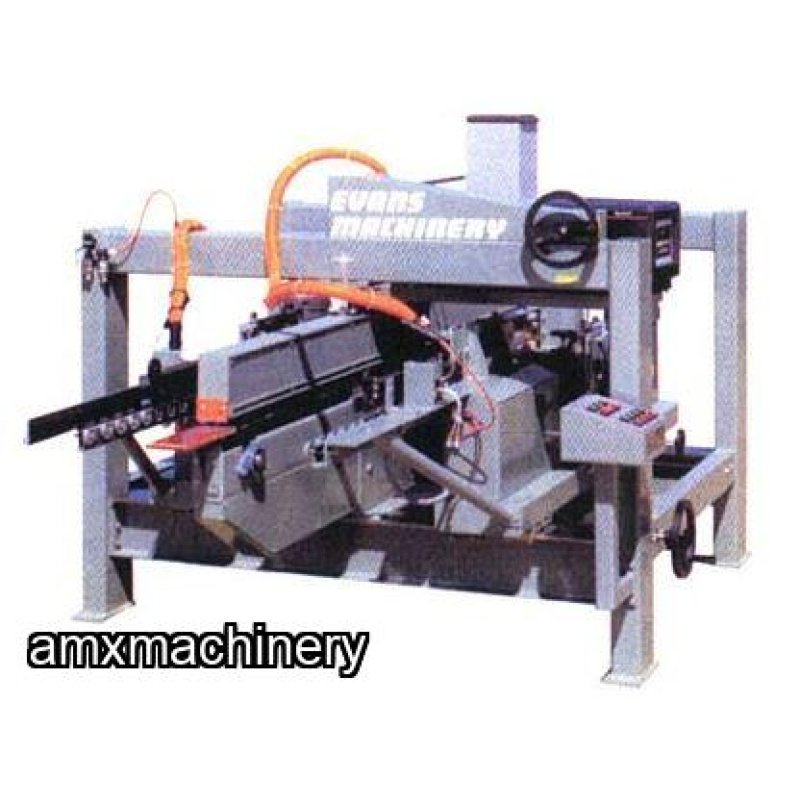

The Evans machinery model 6600 core builder produces a quality core every time. Within one pass, this machine bonds the build up to both sides of the panel using hot melt adhesive applies T-Mold for no drip edges and shapes your core to the required profile. The model 6600 Core Builder operates at a feed rate of 20 FPM as it travels on a non-skid straight line feed system. The model 6600 Core Builder is a smart investment by helping you and your company save time and money.
MACHINE SPECIFICATIONS:
Machine Length | 158" |
Machine Width | 89" |
Machine Height | 72" |
Working Height | 36" |
Electrical | 220v 60 Hz 3 Ph |
Air Supply | 100 PSI |
Edge Shaper | 5 HP 5850 RPM 1.25 Spindle Diameter |
Hot Melt Unit | 20 lbs Capacity 1500 Watt Heater |
Feed Rate | 20 FPM |
Center Feed Drive | Non-Skid Pad |
Board Width | 16" Min. to 48" Max |
Board Thickness | 2" Maximum |
Build Up Width | 3/4" Min. to 1-1/2" Max. |
Build Up Thickness | 1-1/2" Maximum |
T-Mold Slotter | 1-1/2 HP 3600 RPM .875" Spindle diameter 8" Blade |
Groover | 1-1/2 HP 3600 RPM .875" Spindle diameter 8" Blade |
