Descripción

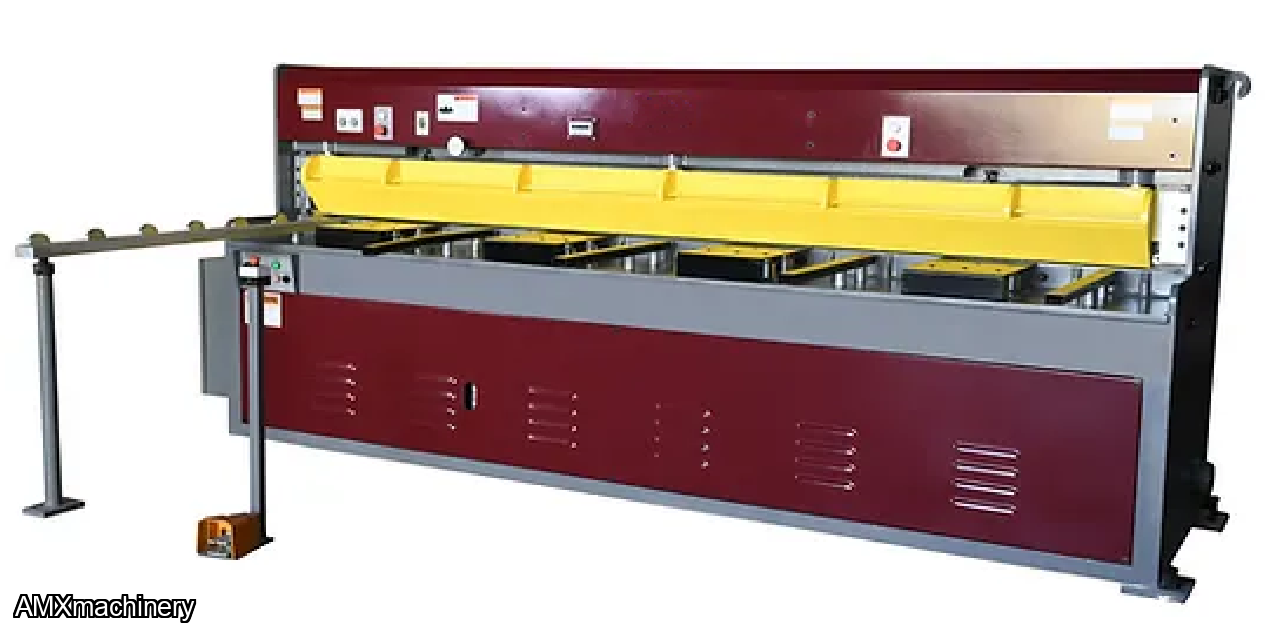

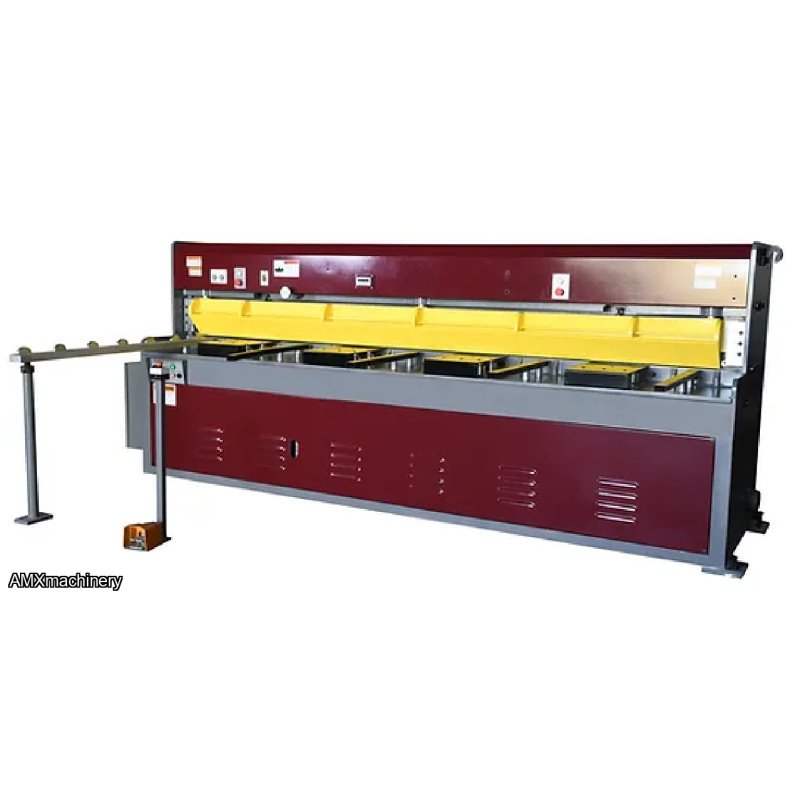

CORTADORA 10' X 10 GA PARTE:2GM-HS-1010E
This powerful and precise machine features a 36" German SIKO Front Operated Power Back Gauge, quick change blade gap adjustment, and a full-length viewable finger guard for operator safety. With its advanced features and reliable performance, the HS-1010E is the perfect choice for achieving accurate and efficient metal cutting results.
- ISO 9001 certified
- Taiwan machines

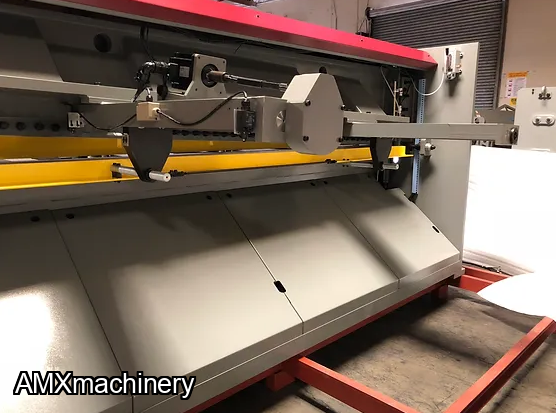

- HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- Shadow line for accurate straight cutting
- 60” squaring arm with inlaid inch/metric dual scale
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA)
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
Cutting capacity: Mild steel Stainless steel soft aluminum min. thickness |
10’ x 10 Ga. 10’ x 14 Ga. 10' x 1/4" 24Ga. |
| Blade length | 10'1" |
| Strokes per minute | 10-15 |
| Worktable height | 34 1/2" |
| Front support arm | 24" |
