Identificador: 2567
Abierta
.PNG)
Descripción

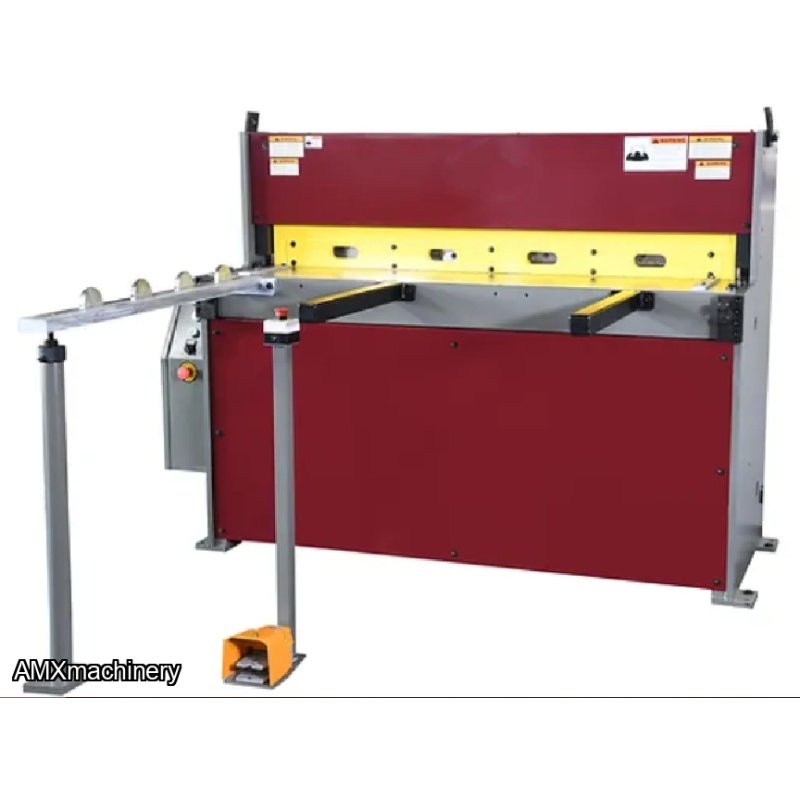

CORTADORA DE METAL HIDRAULICA 8' x 8 Ga PARTE: 2GM-HS-0808M
- ISO 9001 certified
- Taiwan machines
- HS-0808M with 24” manual back gauge
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- HS-0808M comes with 24” manual back gauge
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA) with gap dial
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
Cutting capacity: Mild steel Stainless steel |
8'x 8 Ga. 8' x 11 Ga. |
| Blade length | 8'2" |
| Strokes per minute | 10-15 |
| Worktable height | 34 1/2" |
| Front support arm | 24" |
Back gauge | 24" Manual Back Gauge |
| Blade rake angle | 2 degree |
| Oil tank cap. | 22 Gal |
Main Motor
Powered B.G. Motor | 10 HP, 220V/35A - 440V/18A, 3 PH,
1 HP, 220v/440v, 3 PH |
| Machine weight | 11,350 LBS |
| Machine dimensions | 157" x 76" x 65" |
