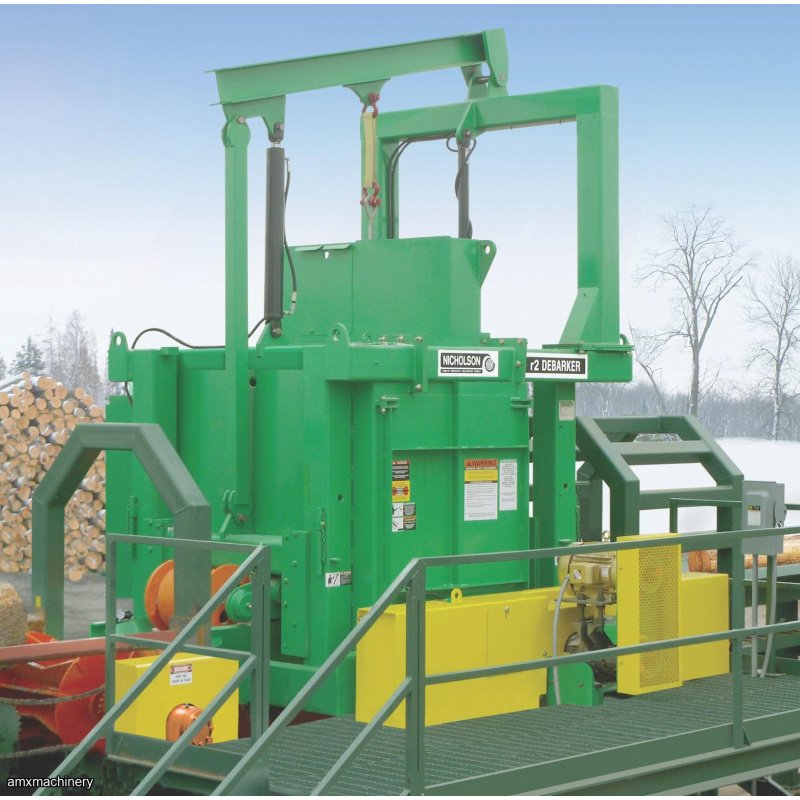

DESCORTEZADOR 40"

PART # 2NI-DE-R2 – DESCORTEZADOR – CAPACIDAD 40”

- Slow speed, sliding ring design

- Innovative 3 arm air cell type ring is simple in design and highly responsive in operation

- Unique actuator/reservoir system allows setting of different tool pressure gradients when stopped

- Excellent all round maintenance access

- Chain bed style infeed and out feed

- Hydraulic actuation for ring/infeed centering and out feed hold down rolls

- Manual operator control standard, automation package is optional

- Hydraulic power unit (with motor) included

Options

- Control Console - Provides basic operator control functions. includes switches for debarker control, c/w Pedestal and Base.

- Remote Lockout Panel

- Automation Package - Includes a basic PLC and controls so that the debarker can be run on auto.

Note: Above automation package includes control console c/w pedestal and base

Electric Motors

- Feed Drive: One (1) 11KW, 1500RPM, D160M WEG Motor.

- Ring Drive: One (1) 37KW, 1000RPM, D250M WEG Motor.

Nicholson or customer supplied electric motors are required

Manuals

- One hard copy (1) Operation and Maintenance manual, including complete set of

assembly drawings and parts list is provided

- Two (2) Operation and Maintenance manuals on CD are included

- Additional hard copy manuals are available at added cost

Start Up Service

- The services of an experienced Nicholson field technician to perform final machine

and installation inspection, adjustment, commissioning and operator training are

recommended but not included.

TECHNICAL DATA

A. Length (overall) 139.1 (353)

B. Width (overall) 126.3 (321)

C. Height (max. overall) 189.0 (480)

D. Top of feed chain 14.8 (38)

Ring Size* 40.0 (101.6)

# of knife arms 3

Weight 26000 lb (11818 kg)

Dimensions: inches (cm)

* Recommended maximum log diameter is 2” less than ring size
