Descripción

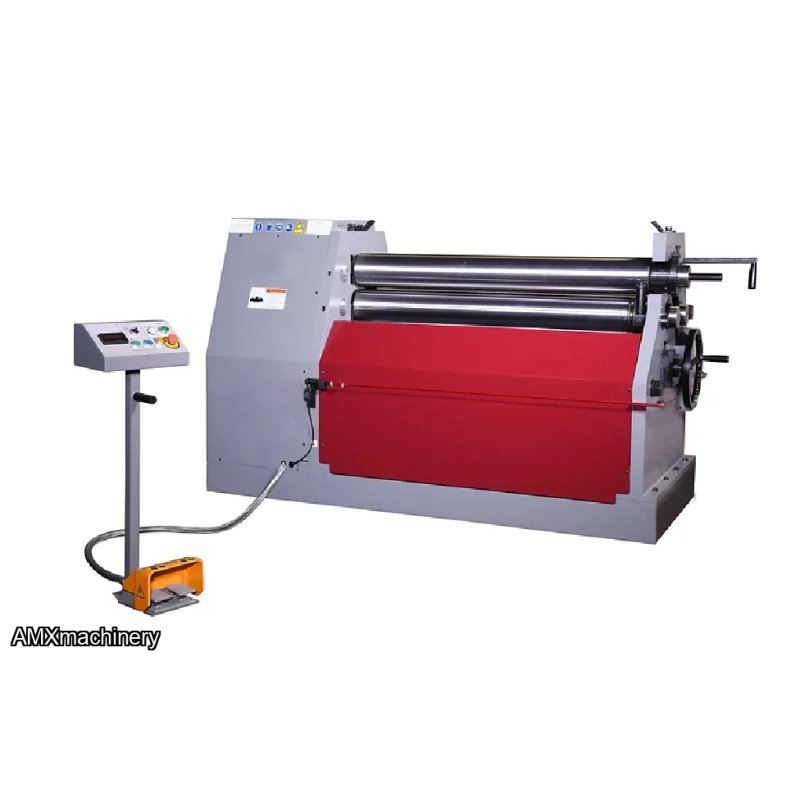

DOBLADORA DE METAL 4' X 1/4'' PARTE: 2GM-HBR-0425
4 foot plate rolls are made for bending and rolling 1/4" metal sheets or plates into cones and other cylindrical shapes. All three rolls are hydraulic driven, hardened, and made of high grade alloy steel. Equipped with a cone attachment, LED digital readout, operation pedal controls safety line, and a quiet hydraulic system.
- ISO 9001 certified
- Taiwan Machines
- All three rollers are driven
- All three rollers are hardened, up to 50-52 HRC
- Easy swing –out top roller
- Standard cone attachment installed
- 1 each LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Heavy Duty all steel welded machine construction
- German Hydraulic logic system centrally located and quiet
- Bending roll is hydraulic powered up/down & tilting adjustment
- Planetary reduction gear and pump
- All three rolls are made of high grade alloy steel
- All rolls run forward and reverse
- Safety type foot pedal control
- Overload protection and disconnect switch
- Power source 208V/220V, (Option 460 V , 3 phase)
- LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Removable safety foot pedal and tool box
- Cone attachment (to make cone parts)

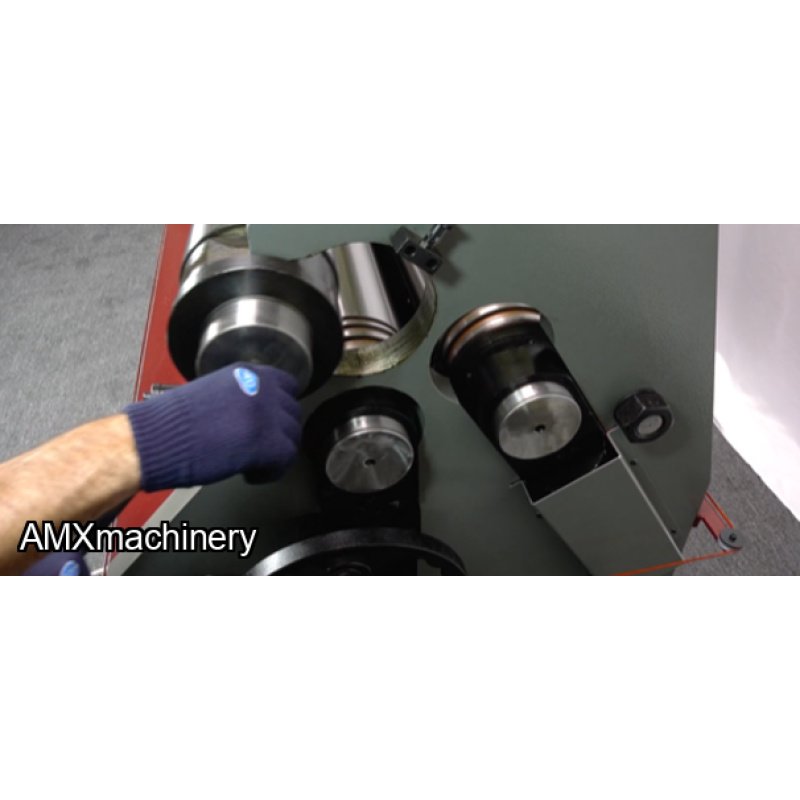

- (3) grooves 3/8”, ½”, 5/8” on roll for bending wire
Roll Capacity: Mild Steel Stainless Steel soft aluminum min. thickness
|
4' x 1/4" 4' x 3/16" 4' x 3/8" 22Ga
|
| Min. Roll dia. | 8" |
| Rolls Length | 4' 3" |
| Rolls Dia. | 6" |
| Pre-bend | 0.18" |
| Rolls speed | 5 RPM |
| Rolls Opening | 2 1/2" |
| Oil Tank Cap. | 12 Gal. |
| Main Motor | 3 HP, 220V/ 10A or 440V/5A |
