Descripción

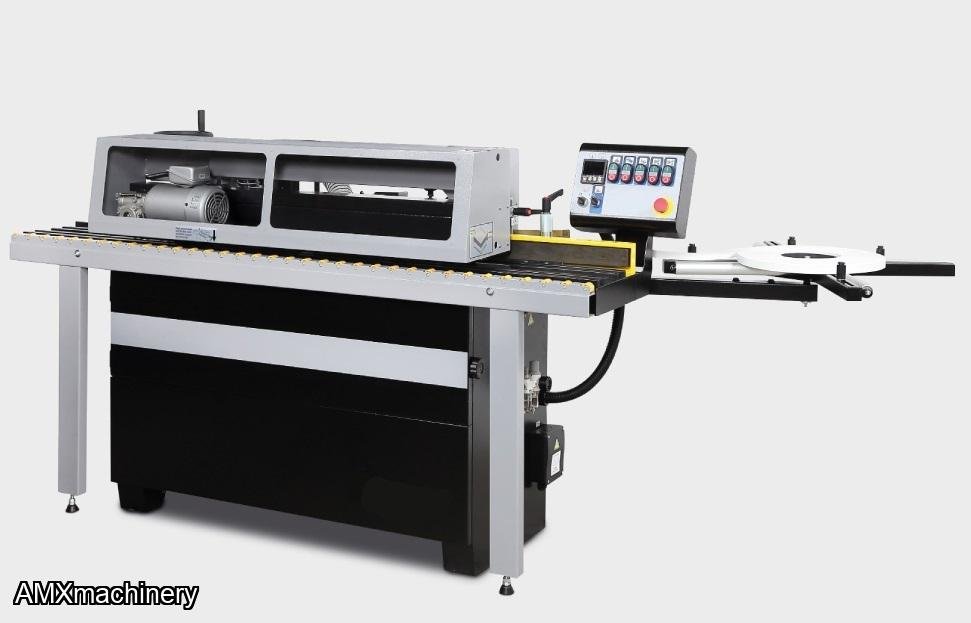

PARTE: 2MK-CBC.T – ENCHAPADORA DE CANTOS – 220V, 2 FASES
Nueva con garantía
FRONT/REAR TRIMMING
TOP/BOTTOM TRIMMING
BUFFING UNIT
This machine is a master piece of engineering, packet with features that will make your job easier giving you a product finish like never before. Super steady and stable the CBC.T platform is a stainless steel mono-block base. All operating units are easy to be accessed through the upper protection hood.
The friction-free worktable feed panels with high-precision and rollers moves the panels through effortlessly and smoothly. All stations are adjusted with a mechanical readout for reference and panel processing is fully automatic with all operating units synchronized.
Our new CBC.T is already one of our customers favorite!
Machine frame made out of steel, single block base with superior stability.

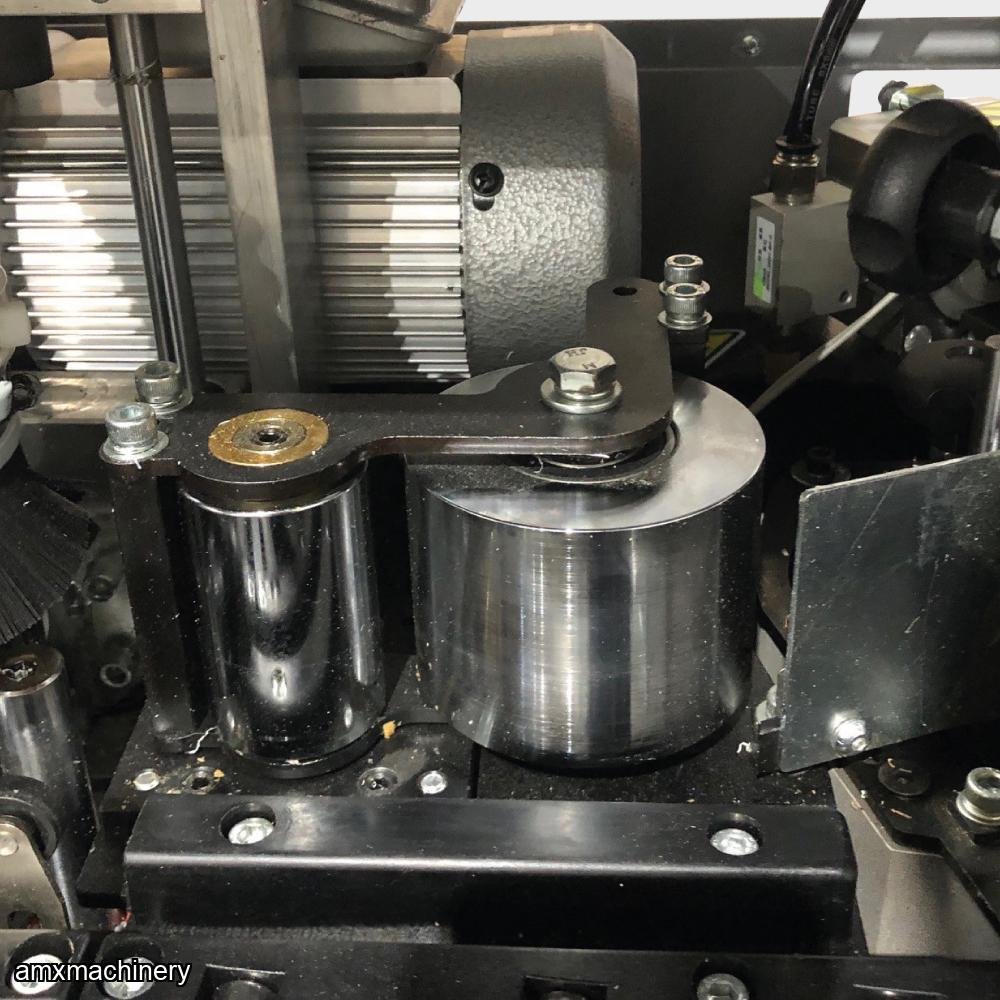

Dual pressure rollers.
Automatic belt feed.
Dust collection Port.
Friction-free worktable.

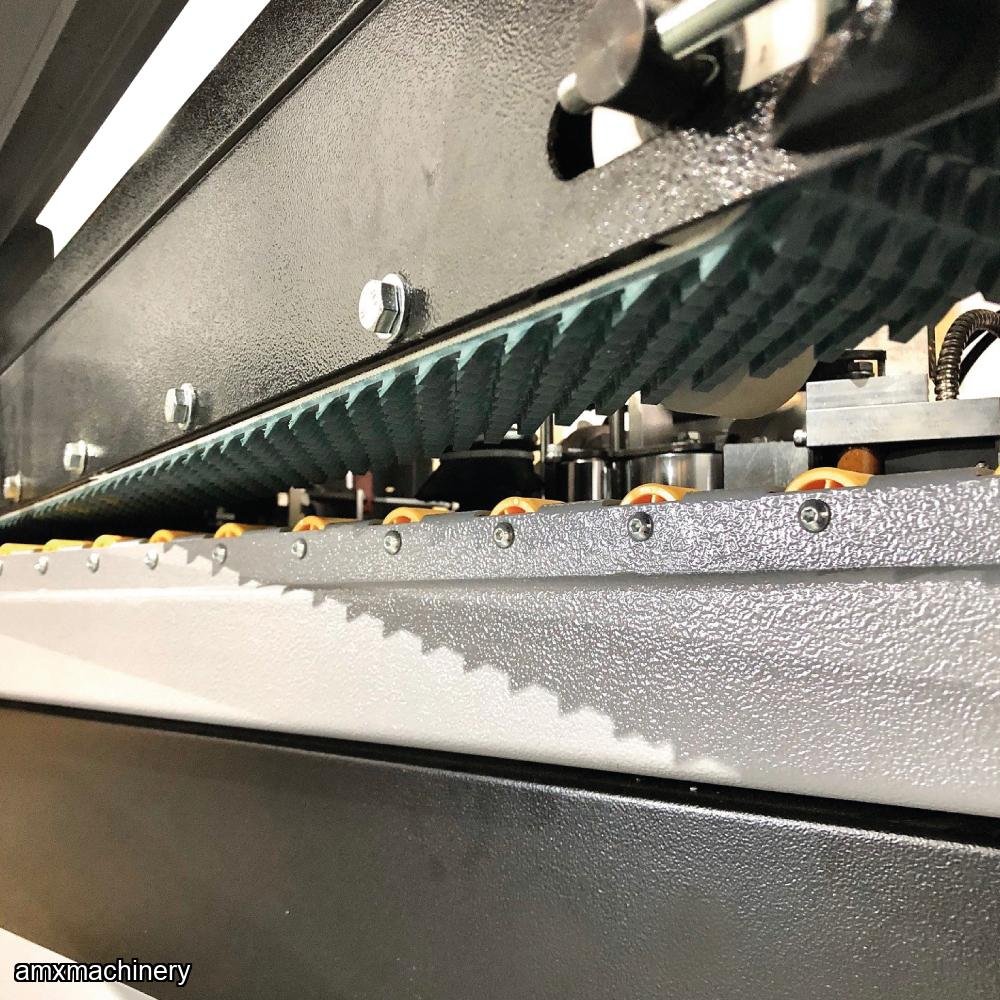

Top feeder with high-adherence toothed head belt with steel cables inside.
Telescopic front support with rollers.
Anodized aluminum outfeed fence.
Emergency push button.

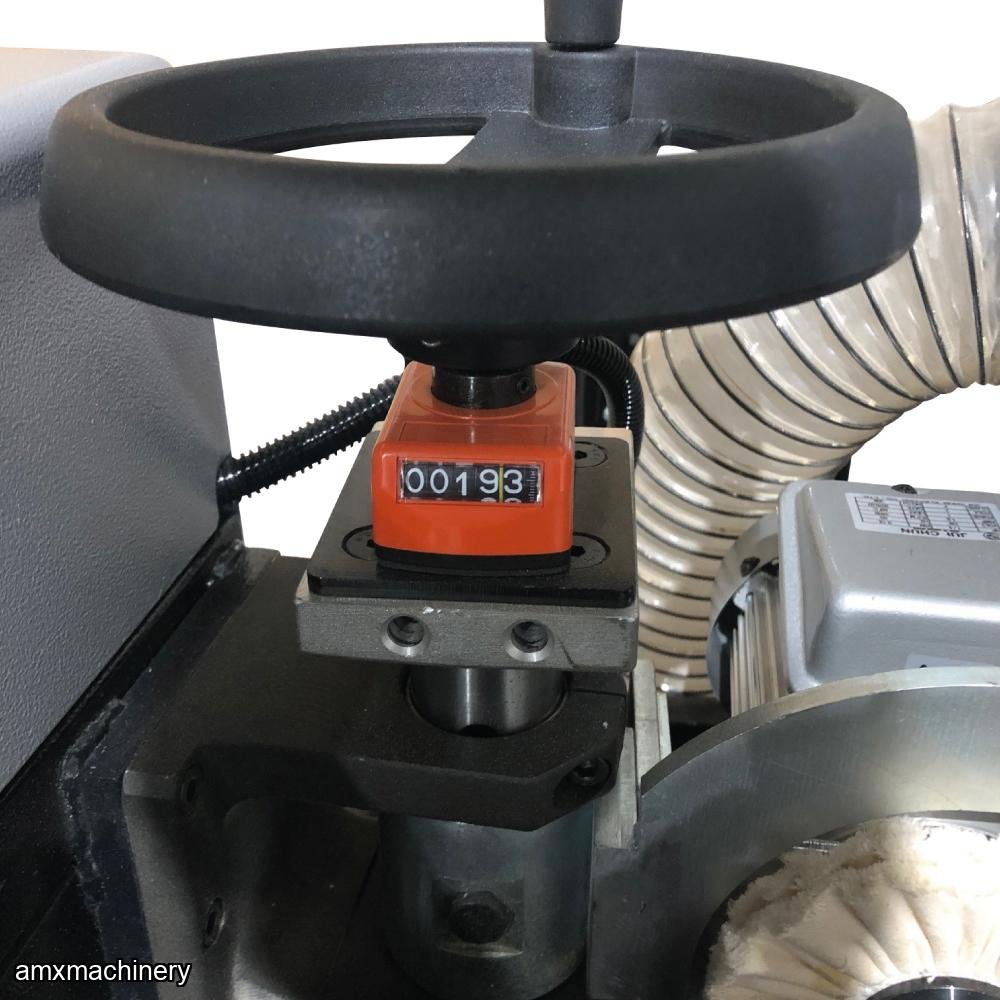

Mechanical indicator for panel thickness.

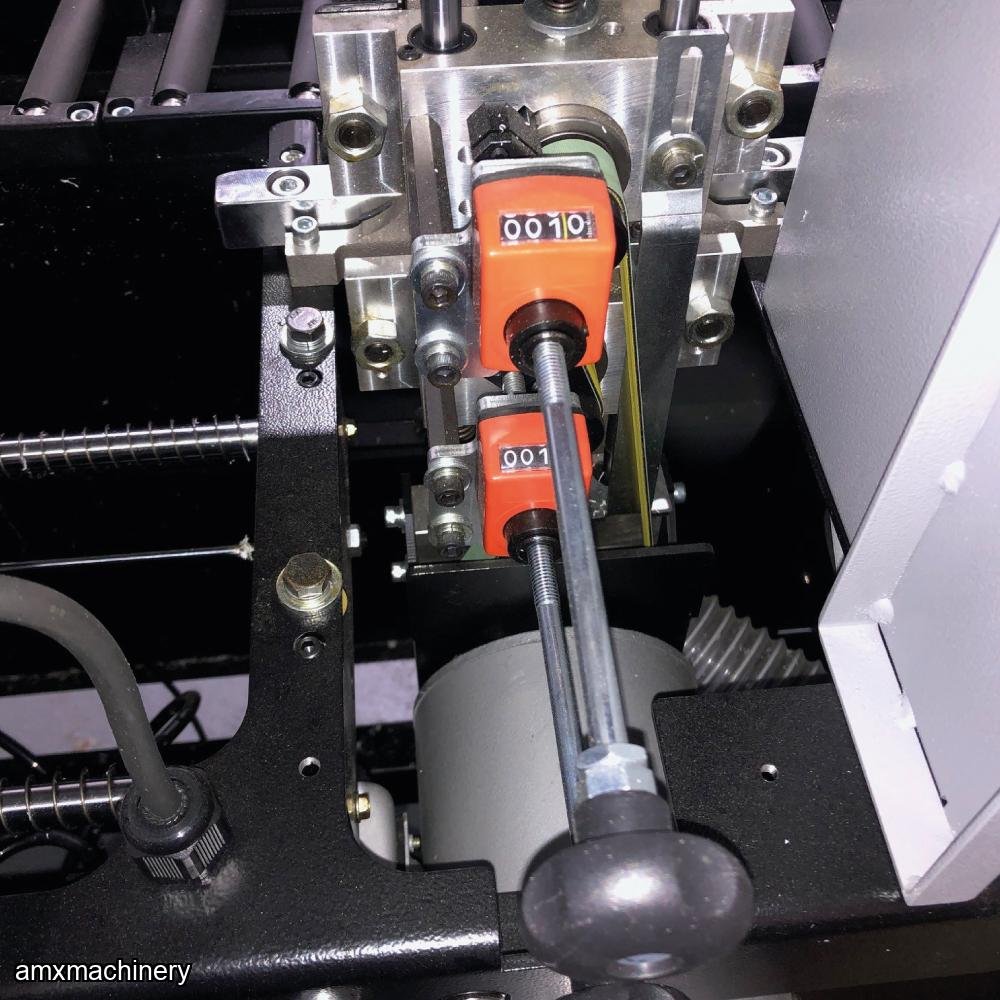

Mechanical indicators for top and bottom trimmers.
Mechanical indicators on fence for tape thickness.
Electrical cabinet with PLC, padlockable main switch and overload protection.
Angled feed rollers in table bed.
Angled feed rollers in table bed.

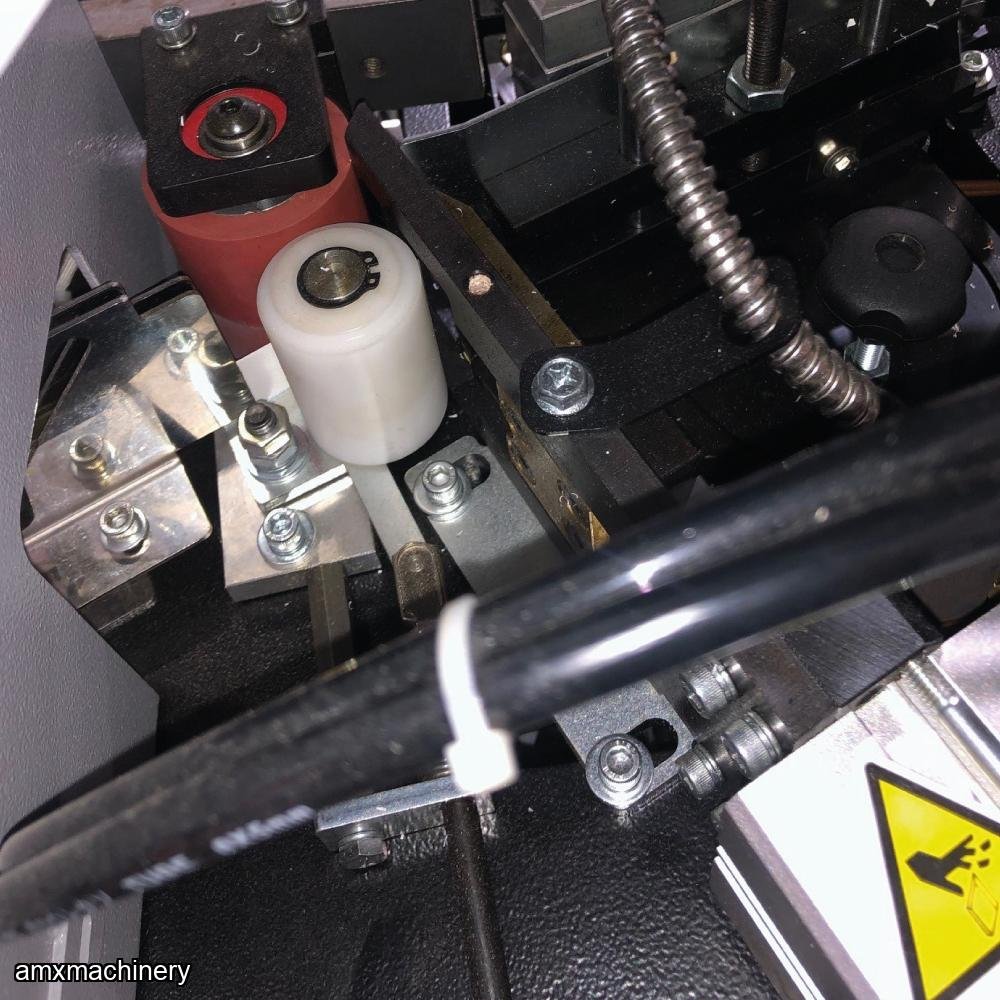

Roller copy bearings.
End trim with saw blade.
Safety enclosure.
MACHINE PERFORMANCE
Incredibly versatile, it handles panels up to 45mm thick, automatic feed and spread glue directly on the workpiece and can be adjusted to use edge tape between a thickness of 0.4 and 3 mm.

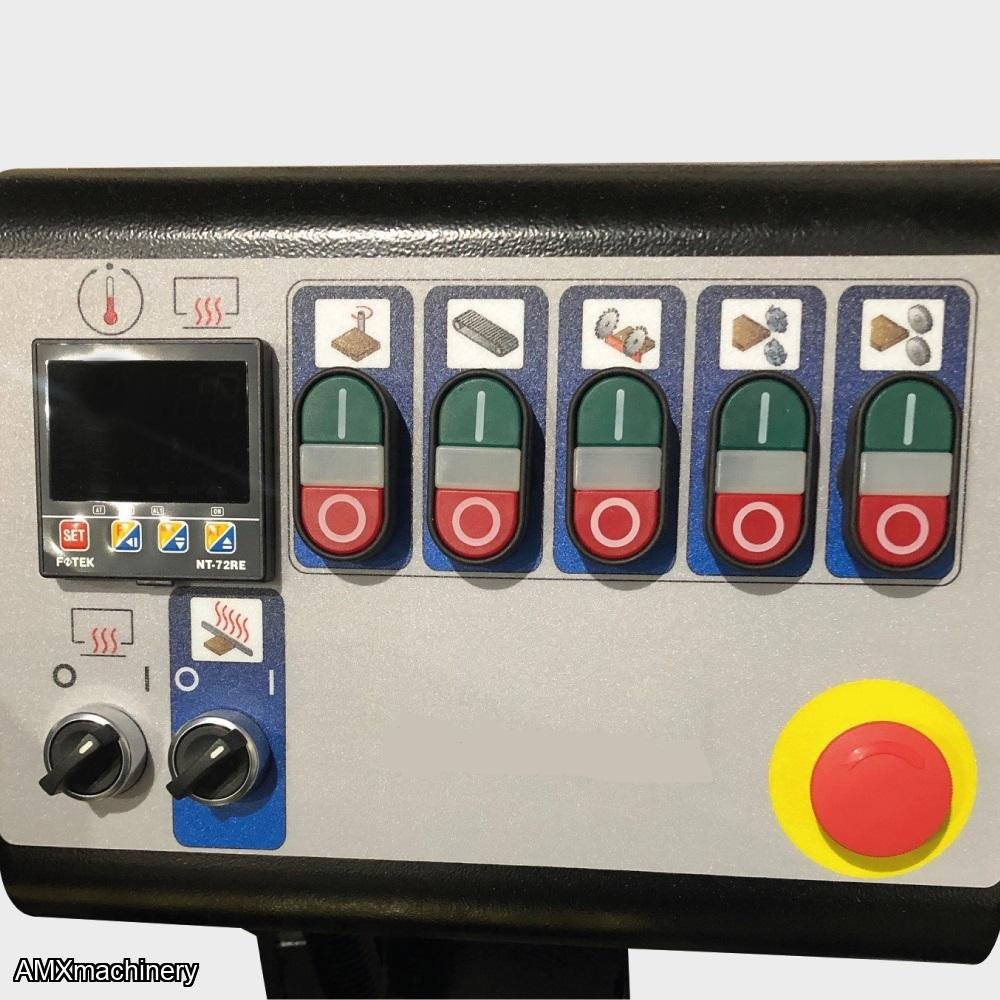

PANEL CONTROL
Located on the front of the machine in an ergonomic position. This unit is used to control all of the machine’s functions quickly and intuitively. There you can see and adjust the Digital Glue Temperature Control – shows the desired and current temperature; activate pre-heating and glue pot heating, glue spindle, conveyor belt, front/rear trimming, top/down trimming, and buffing unit.

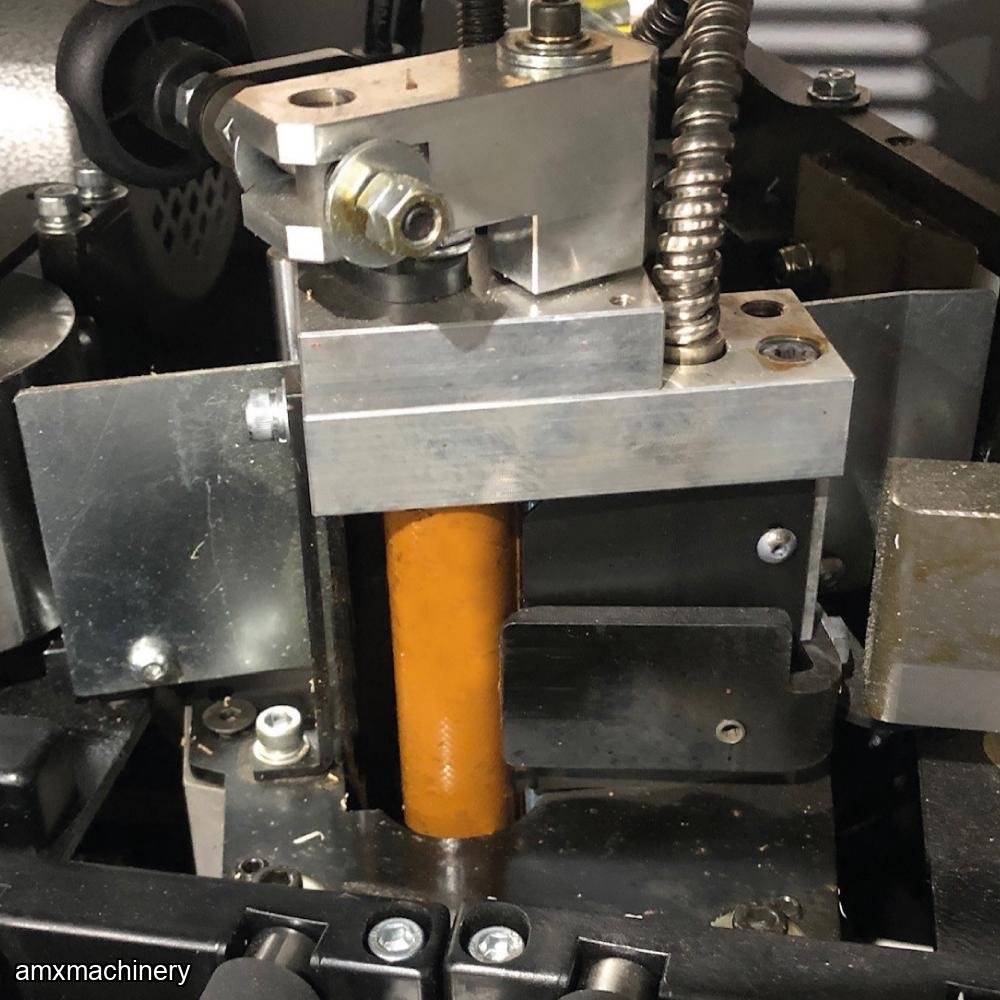

GLUE POT UNIT
The glue pot unit is heated rapidly and evenly to maintain the optimal temperature. This is made easy by using the Digital Control, once set it keeps the temperature constant unless in “stand-by” mode which lowers the temperature without turning off the machine, the glue spindle has two pressure rollers allowing the glue to be spread evenly to the panel.
CONVEYOR BELT
With a movement system designed for a perfect finish, moves the panels to be edge through the machine smoothly, providing the very best finish.
FRONT/REAR TRIMMING
The glue pot unit is heated rapidly and evenly to maintain the optimal temperature. This is made easy by using the Digital Control, once set it keeps the temperature constant unless in “stand-by” mode which lowers the temperature without turning off the machine, the glue spindle has two pressure rollers allowing the glue to be spread evenly to the panel.
BUFFING UNIT
The buffing unit is designed to polish edges and maintain their natural colors. Two independent buffing wheels for cleaning and polishing can be adjusted to a particular angle to maximize its effect for better workpiece finishing and extending buffing wheel service life.
TOP/BOTTOM TRIMMING
The top/bottom trimming units are automatic and manually adjustable. These trimmers consist of high-polish chrome plated copy shoes which ensure a smooth and accurate profile.

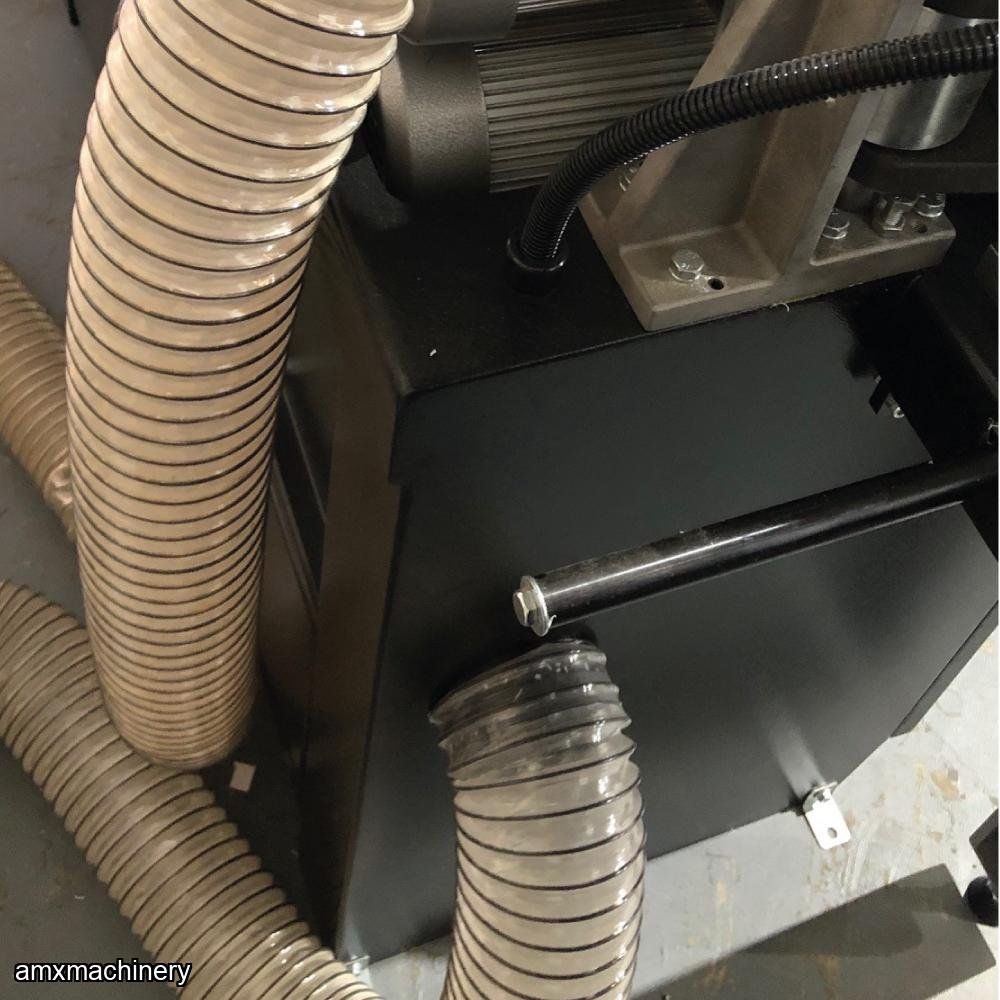

DUST CONNECTION
The machine can be equipped with centralized dust collector 100 mm situated on the main protection of the machine.
TECHNICAL INFORMATION
Working table dimensions: 2000 x 265 mm
Extensible support: 310 mm
Panel thickness: 12 / 45 mm
Automatic panel feed speed: c.a5 mt/1’
End trimming unit rotation speed: 9.000 RPM
Flush trimming unit rotation speed: 10.000 RPM
(T.C.T) cutters Ø 75 mm Z4-12° R=2 mm
Dust collection outlet: Ø 100 mm
Glue pot elements: 1.135 W
Total power installed: Ca. 3.3 KW
Voltage: 380 – 440/50 – 60/3, 220 – 240/50 – 60/3
Approx. weight (N.W./G.W.): 336 / 385KGS *** 740 / 849LBS
Warranty: 2 Years
