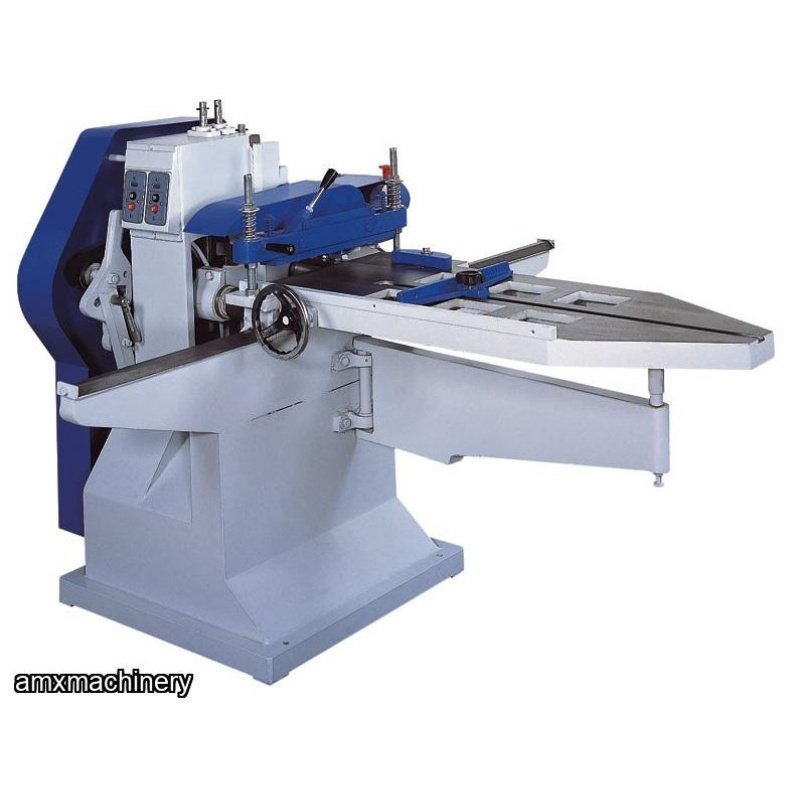

PARTE: 2TA-SET-60 - ESPIGADORA 1 LADO - FINGER JOINT
Features:
It performs cut off, burrs trimming, and moulding functions.

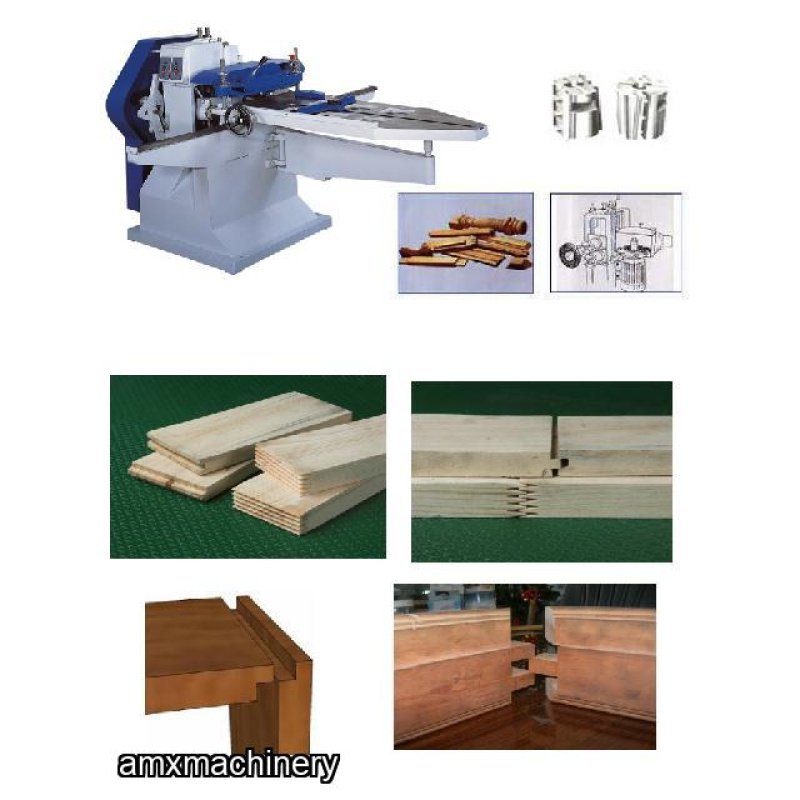

Two 4" D x 5" L max. tenon cutters, cope spindle accepts general shaper cutter. Suited for cutting tenons, finger joints for window or doorframe and general joint-tenon.
Hand, manual operated clamping and feeding of stock.
First the trim saw to cut off the end of stock evenly.
Then two moulding, tenon spindles are mounted at the rear of saw enable machine performs edge moulding.
Since each head is adjusted independently, a wide variety of tenon can be cut.
At the end the cope spindle provides 6000 RPM cutting which allows it to feature a spindle sharper function.
All operations can be accomplished in a single pass of feeding, high efficiency is assured.
Powerful industrial motor for maximun cutting capacity.
Precision sealed long-life bearing.
Heavy cast iron frames and table for durability usage.
|
SPECIFICATIONS |
|
2TA-SET-60 |
|
CAPACITY |
Max. Length of Cut |
~ |
|
Min. Length of Cut |
5" |
|
|
Max. Width of Cut |
17" |
|
|
Max. Clamping Thickness |
4" |
|
|
TRIM SAW |
Saw Blade Dia. |
8" ~ 10"x 1 |
|
Saw Arbor Dia. |
1" |
|
|
Saw Blade Speed |
4000 RPM |
|
|
Saw Head Tilt |
NO |
|
|
TENONER HEAD |
Spindle Shaft |
1" Dia. Taper x 4" L x 2 |
|
Spindle Speed |
4000 RPM |
|
|
COPE HEAD |
Spindle Speed |
3600 RPM |
|
Spindle Shaft |
1" Dia. x 4" L |
|
|
Spindle Tilt |
NO |
|
|
TRAVERSE |
Saw Longitudinal Travel |
3" |
|
Saw Vertical Travel |
3" |
|
|
Carriage Cross Travel |
20" |
|
|
MOTOR |
Saw & Tenoner Head |
3 HP x 1 |
|
Cope Head |
3 HP x 1 |
|
|
WEIGHT |
N.W. |
990 LBS |
|
|
G.W. |
1200 LBS |
