Identificador: 170
Abierta
Descripción

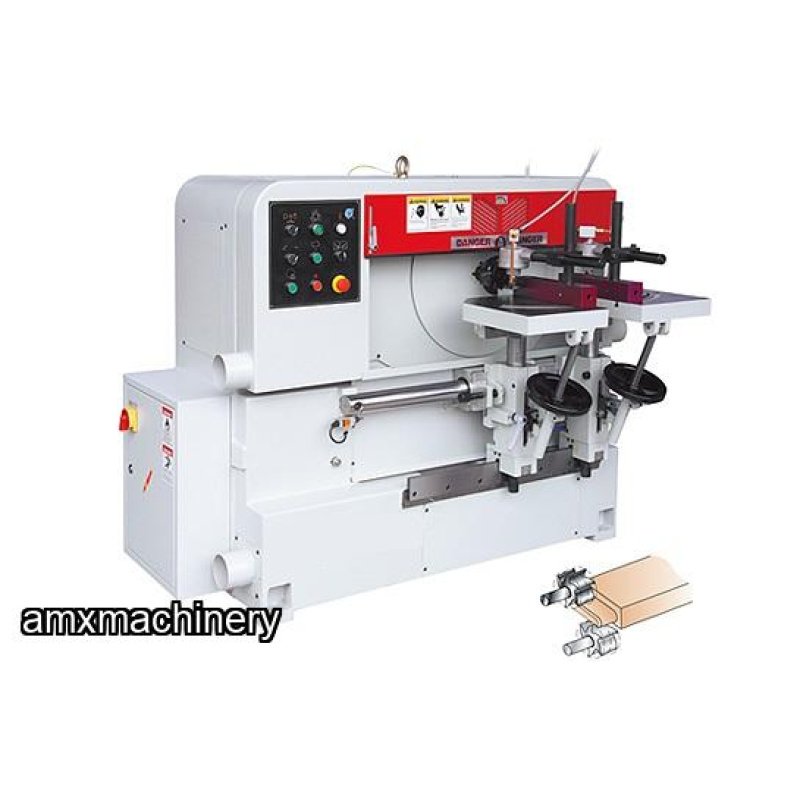

PARTE: 2TA-SET-100 - 3YC-YRT-115 - ESPIGADORA - 2 MESAS - AMX MACHINERY
Nueva con garantia
- Built with two working tables for high efficiency operations.
- Table longitudinal traverse is pneumatic operated for smooth cutting.
- Tenon’s width is easily adjustable by hand wheel.
- Convenient tenon depth adjustment from outside without removing covers.
- Table can be tilted to 20 degrees at each side for angular tenon.
- Cutter moving speed is infinitely adjustable to achive the best results.
- Pneumatic hold down clamps and pneumatic cutting movement for smooth finish.
- Fully automatic tenon produce cycles.
- Automatic lubrication system.
- Powerful industrial motor for maximum cutting capacity.
- Precision sealed long-life bearing.
- Heavy cast iron frames and table for durability usage.
SPECIFICATIONS | SET-100 | CM-100 |
Max. Width of Tenon (Mortise) | 4" | 4" |
Max. Depth of Tenon (Mortise) | 2" | 2-3/8" |
Oscillation Rate | 13 ~ 80 PCS/MIN. | 7 ~ 200 STROKE/MIN. |
Table Tilts | 20° | 20° |
Spindle Drive Motor | 3 HP | 3 HP |
Cutter Feed Motor | 1 HP | ½ HP |
Cutter Speed | 9500 RPM | 9500 RPM |
Table Vertical Adjustment | 3" | 3" |
Max. Thickness | 4" | 4" |
Max. Stoke Width | 5" | 4" |
Air Pressure | 80 PSI | 80 PSI |
Machine Size | 63" x 51" x 51" | 51" x 47" x 47" |
N.W. | 2200 LBS | 1540 LBS |
G.W. | 2640 LBS | 1880 LBS |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
REASERRADORA HORIZONTAL – 2 SIERRA BANDA – 400 MM ANCHO X 250 MM ALTO
PARTE:
3HP-HP-400-2 - REASERRADORA HORIZONTAL – 2 SIERRA BANDA – 400 MM ANCHO X 250 MM
ALTO
Nueva con garantía – Uso
Rudo
Specifications:1.With Digital Readout
2.Max. Workpiece Size: 400mm(W) x 250mm(H)
3.Conveyor Belt Size: 385mm(W) x 8130mm(L)
4.Saw Wheel Dimension: Φ28" x
2"(Thickness)
5.Saw Blade Size: 180"(L) x 2"(W)
6.Dust Hood Diameter: 4" x4
7.In-feed Speed: 4-20M/min
8.Cutting Size: 4-250mm(T)
9.Controlling Blade Tension: Air/Hydraulic
Compensa...
AMXmachinery
TALADRO PARA BASTIDORES – 1 TALADRO - RITTER
PARTE: 12017 - TALADRO PARA BASTIDORES – 1 TALADRO - RITTERUsada - En buenas condicionesMotor 1HP, 220V, 1 PH
AMXmachinery
REASERRADORA 1 SIERRA 12"
PARTE # 2TA-BS-1212HR - REASERRADORA HORIZONTAL – 1 SIERRANUEVA CON GARANTIAMachine was built with ruggedly constructed throughout for maximum stability, high precision cutting and minimum trouble.It is equipped with a digital controller for convenient and accurate thickness setting.The feed conveyor has a tilting design allowing for maximum 30 degree bevel cuts.When the feed conveyor is tilted for bevel cutting a side support is applied for safe and stable cutting operations.Variable feed spe...
AMXmachinery
PARTE: 12295 - LIJADORA DE BANDA ANCHA - 52” ANCHO - 2 LIJAS - TIMESAVERS
PARTE: 12295 - LIJADORA DE BANDA ANCHA - 52”
ANCHO - 2 LIJAS - TIMESAVERS
USADA BUENAS CONDICIONES
460/60/3 electrics
Standard
Specifications:
1st head,
75 HP, 230/460/60/3 hard rubber contact drum
2nd head,
60 HP, 230/460/60/3 hard rubber contact drum
Weighs 16,000 lbs.
