Descripción
FRENO PARA DOBLADORA DE METAL PARTE: 2GM-BB-612-6HD
- ISO 9002 certified
- Large 1-9/16” beam opening, adjustable
- 1” beam adjustment (front and back)
- Hem light gauge material 26 Ga. or thinner
- Total pieces fingers assortment:
- BB-412-6HD: 2”/1pc, 3”/4pcs, 4”/2pcs, 25”/1pc
- BB-612-6HD: 2”/2pcs, 3”/2pcs, 4”/1pc, 5”/3pcs, 6”/3pcs, 11”/3pcs
- Stop rods for repeat bends
- All steel heavy body construction with extra heavy tie rod for minimum deflection
Bending capacity in Mild Steel: | 12 Ga. |
Bending capacity in Stainless Steel: Bending capacity in soft aluminum | 16 Ga. 3/16" |
Max. hemming thickness for mild steel: | 26 Ga. |
Max. box depth | 6" |
Bending length capacity | 6’ |
Bending angle, degree | 0-135 |
Beam adjustment, front and back | 1" |
Minimum reserve bend | 1/2" |
Manual clamping | Standard |
Beam opening | 1-9/16" |
Net weight | 2,250 lbs. |
Shipping weight: | 2,350 lbs. |
Machine Dimensions: | 120" x 32" x 77" |
Shipping Dimensions: | 100” x 30” x 40” |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery1
SIERRA MULTIPLE DE VAIVEN
PARTE: 2TA-TRS-150F - SIERRA MULTIPLE DE VAIVENFEATURESMinimum kerf multi blade frame saw designed to maximize production and minimize material loss.Thin frame saw design accepts different saw frames & blade combinations.Unique design allows multiple saw fence configurations to produce single, double or multiple cuts in a single pass.Machine supplied with PLC controller to allow operator to maximize saw production & minimize down time.Production times are reduced because of the machine's du...
AMXmachinery1
SIERRA MULTIPLE - 1 SIERRA - 12 PULGADAS
PARTE: 2CK-C12RSHIs a single-blade ripsaw geared towards the shop looking to increase efficiency in their ripping operations but can not justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C12RSH can produce a glue joint finish ready for panel glue-up right out of the saw.Produces a guaranteed glue joint finish to 10′, which eliminates the need to joint the material after rippingPrecision straight line feeding for parallel and...
AMXmachinery1

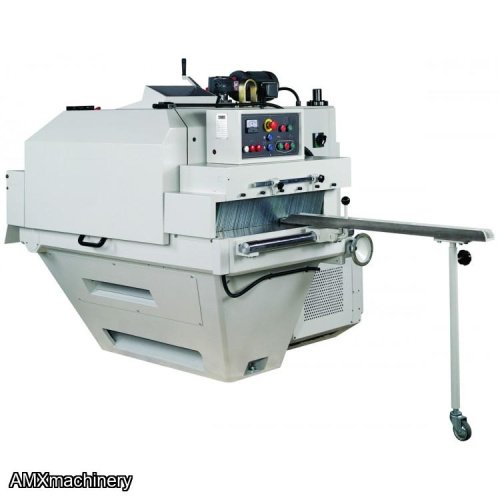

SIERRA MULTIPLE PARA CORTE DELGADO
