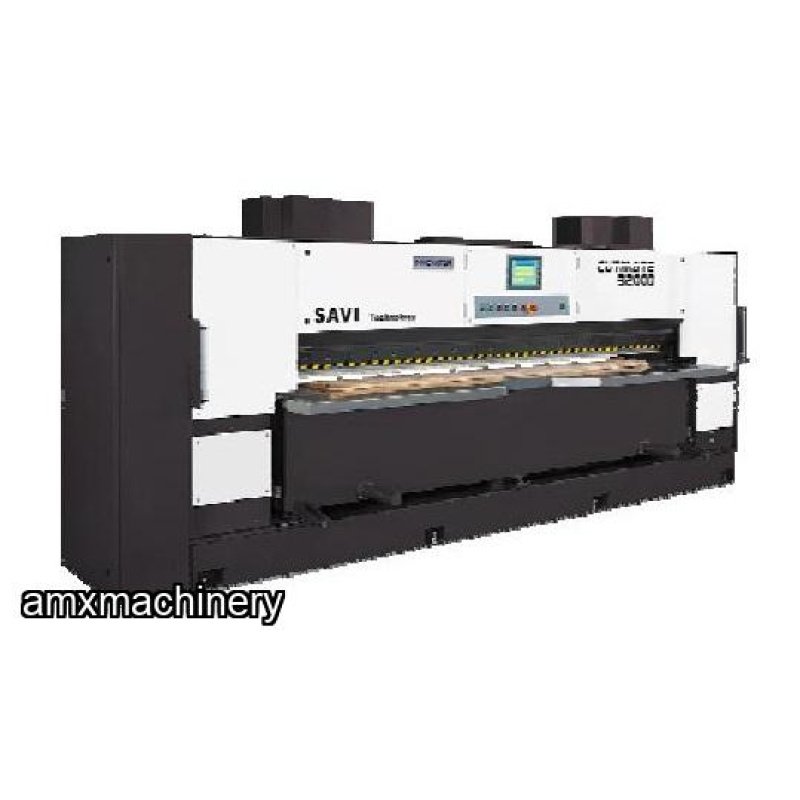

GUILLOTINA CHAPA 2 NAVAJAS

PARTE # 3NN-CUTMATE3400D – GUILLOTINA PARA CHAPA – 2 NAVAJAS - 3400 MM

PARTE # 3NN-CUTMATE2800D – GUILLOTINA PARA CHAPA – 2 NAVAJAS - 2800 MM

Specification

All double knife guillotines are constructed with a view to the highest security of the operator without causing any inconvenience to the working. All guillotines are completely hydraulic on both knives and pack beam with SAVI original technology and know-how. This double knife guillotine is particularly useful when cutting waving veneer bundles. The cutting accuracy is obtained by the fact that the whole veneer bundle is fully under pressure while cutting so that buckles in the veneers will be straightened out. The cutting movement is done on both sides of the veneer edges at the same time. The series with European superior quality of manufacturing guillotines offer the precise linear and parallel cutting. Coupled with Double Sided Veneer Glue Applicator (GlueMate 700) & Crossfeed Veneer Splicer (UltiMate series), the perfect gluing and jointing result is accomplished with high production efficiency.

Features

- parallel cutting guaranteed

- JAPAN YUKEN hydraulic system

- with European safety standards

- able to use the front knife individually

- JAPAN MITSUBISHI PLC control system

- rigid welded machine body for stable movement

- safety light barrier of knife and pack beam in front

- safety light barrier at the rear of the machine for safety concerns

- able to cut various materials including veneers, paper, plastic, etc.

- knives manufactured with high speed steel to extend the grinding life

- pack beam with two cylinders & four firm guides for long-time operation

- adjustable pressure with hydraulic knives and pack beam for all kinds of veneers

- hydraulic-driven rear fence for adjustment of the veneer pack to minimize the scrapes

CutMate D series

- simultaneously cutting with two knives for timesaving production cycle (short working cycle)

- "safety locker" at the front end of the knife beam (unique and only in INNOVATOR’s guillotines)

- extra safety valve of knife beam with additional safety knife protective cylinder to keep off any drop of knife

- special designed “emergency valve” for front knife to minimize operational danger caused by mechanical faults

- high speed movement of the firm working table by servo motor with three sets of linear guides and two sets of ballscrews

- optimizing program including manual cut mode, direct prog. mode, final width mode, etc. to cover all requirements of veneering work

- the user-friendly touch screen control panel with more than 50 sets of different veneer width at the same time in a direct program mode

CutMate D series Movements

A. The working table is moved forwards and backwards by a servo motor with three sets of linear guides and two sets of ballscrews.

B. The pack beam is moving up and down clamping the veneer bundle completely during the cutting process so

that the veneers are straightened out while cutting.

C. The front knife is mounted on the pack beam and cuts from the top against the working table.

D. The rear knife is mounted on the rear of the table and cuts upwards against the pack beam.

E. The rear fence is used for the adjustment of the veneer bundle when placing the veneers on the working table.
