Descripción

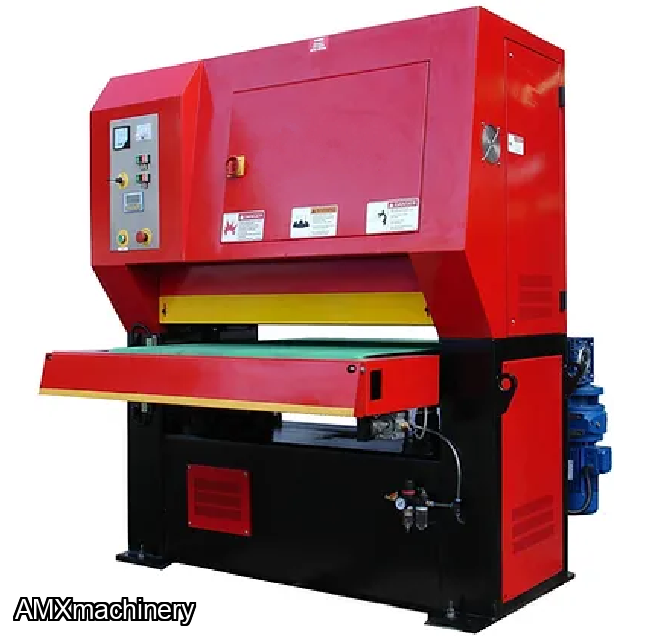

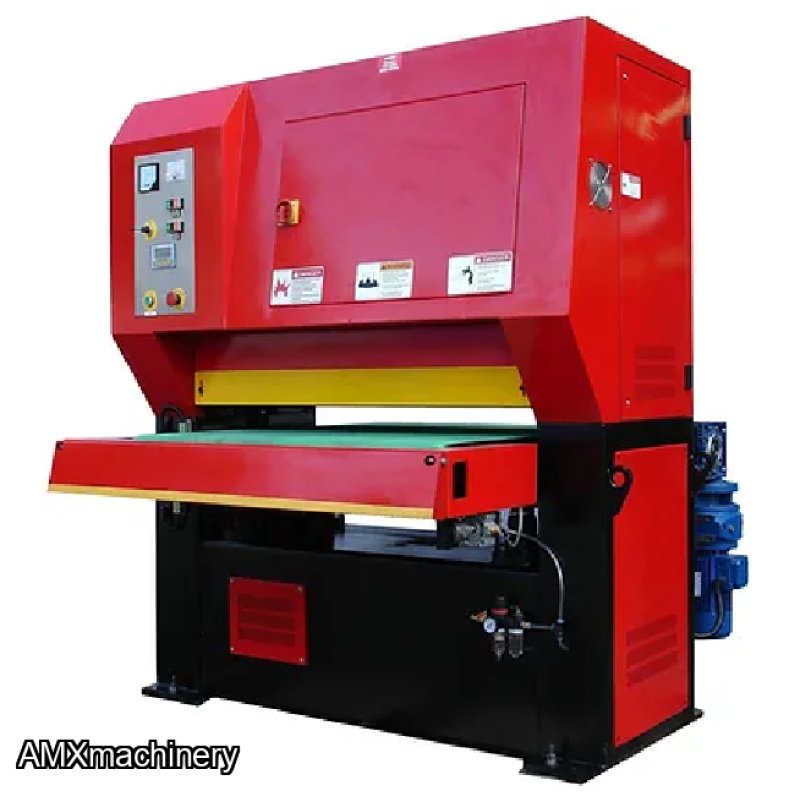

LIJADORA 63'' x 85'' 40 HP PARTE: 2GM-FP-6385
- Abrasive belt size: 63” x 85”
- 10” diameter heavy duty drum for perfect graining
- 3-1/8” wide opening
- Motorized Table Lift with LED display
- Variable Speed Conveyor
- Conveyor Forward & Reverse

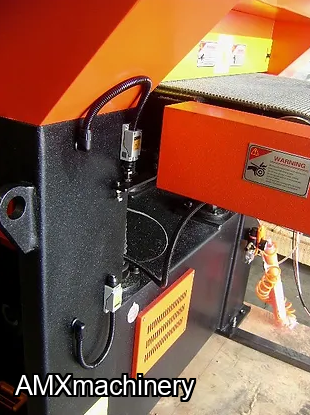

- Belt Safety Overtravel Switches
- Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts

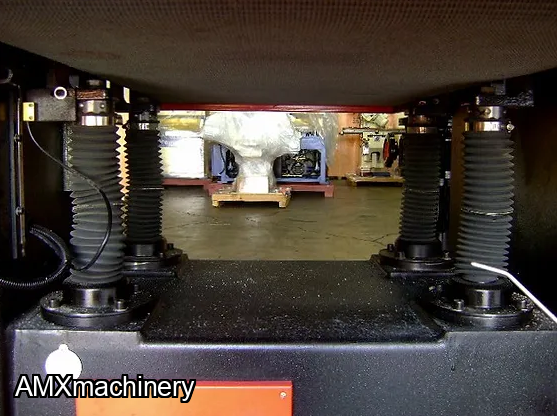

- 4-Jackscrew Table Support
- Double Infeed & Outfeed Pinch Rolls with protective guards
- Conveyor Belt Tracking System
- Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

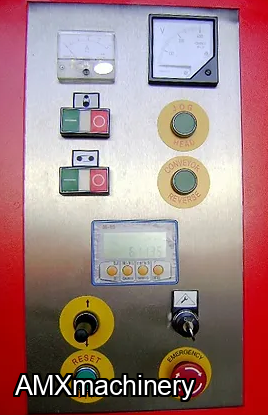

- Table Height Digital Readout
- Load Meter indicates percentage of full motor loads
- Belt change door electrically interlocked for safety purpose
- Air tensioning of belt for accurate tensioning & compensation of belt stretch
- Quick release sanding head support for fast belt change
- Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
- Emergency stops from almost any point
- Noise level bellows 82 dba
- Operation manual, control tags, danger signs, and warning labels in English on machine
- 208/230V, 3-Phase ( 440/460V is available )
| Max. Part Width | 63" |
| Abrasive Belt Size | 63" x 85" |
| Contact Roller Size | 10" Dia. |
| Passline Height | 31" - 37" |
| Max. Thickness Capacity | 3-1/8" |
| Conveyor Drive Speeds | 8 - 40 FPM |
| Infeed Conveyor Length | 20" |
| Dust Colector Capacity | 3,800 CFM |
| Main Motor | 40 HP, 230V / 460V, 3PH |
| Conveyor Motor | 3 HP, 230V / 460V, 3PH |
| Table Lifting Motor | 3 HP, 230V / 460V, 3PH |
| Net Weight, Approx. | 8,650 LBS |
| Machine Dimensions LxWxH | 79" x 95" x 83" |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery1
TRANSPORTADOR DE MATERIAL - MOTORIZADO AW
PARTE: 2CK-AW - TRANSPORTADOR DE MATERIAL - MOTORIZADO
Belt Width
BW
12″
15.75″
19.7″
23.6″
27.5″
31.4″
Machine Width
FW
13.4″
17.3″
21.25″
25.2″
29″
33″
Std. Material
Width (max.)
PW
9″
13″
17″
21″
24...
AMXmachinery1
PARTE: 4NE-4AXISCLASSIC - TORNO PARA MADERA CNC - 4 EJES - 4 AXIS CLASSIC
PARTE: 4NE-4AXISCLASSIC - TORNO PARA MADERA CNC - 4 EJES - 4 AXIS CLASSICControl Unit: HSC RTEX• Control Unit: TPA(İtalian)• Remote Control: YES• Servo Motors : Panasonic• Spindle Motor: HERTZ - 24000rpm with ceramic bearing• Tool Holder ( 5 Pieces )• Self Lubrication System: YES ( Automatic )• Welding Tip Debarker Blade• Triangle Blade for Gouger ( 10 Pieces )• Rounded Blade for Gouger ( 2 Pieces )• Pegasus Cad Cam 4 Axis Standard Program (Italian)• Working Dimension: Max...
AMXmachinery1
TALADRO MULTIPLE - SISTEMA 23
PARTE: EJG-MAG-SYSTEM23 - TALADRO MULTIPLE - SISTEMA 23Provides a 23 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.Accurate positioning of the boring unit to the table with digital readout.0 to 2.5" adjustable drilling depth with patented spiral setting device.(2) patented quick release material clamps with auto-setting to firmly hold m...
AMXmachinery1

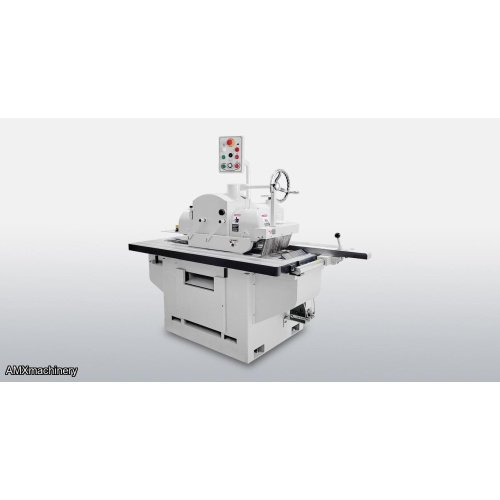

SIERRA MULTIPLE - 1 SIERRA POSTERIOR
