PARTE: 2CK-PS37DA

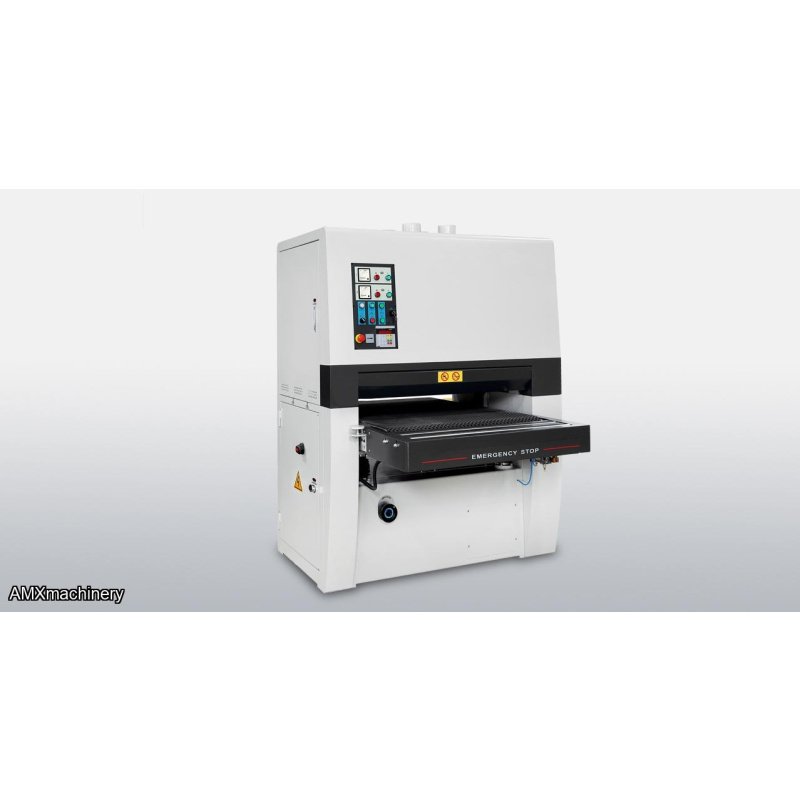

Combines a solid machine frame with unparalleled machine features resulting in superior sanding quality & reliability. The dual sanding heads result in less passes through the sander resulting in increased efficiency and throughput. The first sanding head is a steel contact drum with superior calibration capacities and durability. The second head consists of a versatile combination head with rubber contact drum and adjustable sanding platen to perform further calibration or finish sanding with finer sanding grits. The 75” long belts allow for longer runs between belt changes.
- Heavy duty construction with upgraded horsepower for production use
- Dual sanding heads for increased productivity
- First sanding head is steel with superior calibration results while the second head is a combination unit with adjustable platen for calibration and finish sanding capabilities
- Accurate digital thickness control to 0.001” (0.026mm) resolution
- Micro sanding drum height adjustments with dial indicators
KEY ADVANTAGES
- Heavy duty welded steel frame with cast iron sanding head assemblies for vibration free sanding.
- Dual rubber covered pressure rollers on infeed and outfeed for consistent material hold down.
- High quality rubber conveyor with automatic pneumatic belt tracking

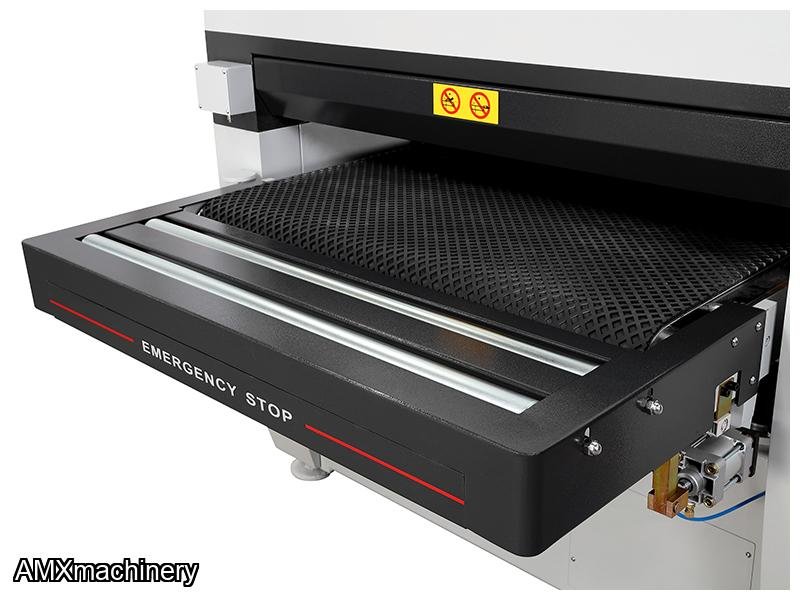

- Extended infeed bed with two table rollers
- Table is adjusted using four heavy duty jack screws driven by robust chain system.
- Electronic sanding belt tracking
- Pneumatic belt tensioning & quick release outboard support for fast belt changes
- Automatic disc brakes for the sanding heads allows for fast belt changeover
- Safety switches on all access doors.
- High quality Schneider electrical controls and Comozzi pneumatic valves
|
|
Inch |
Metric |
|
Abrasive belt size |
37” x 75” |
914 x 1900 mm |
|
Main motor first head |
20 HP |
|
|
Main motor second head |
15 HP |
|
|
Feed motor |
2HP |
|
|
Table rise/fall motor |
½ HP |
|
|
Maximum sanding width |
36” |
915 mm |
|
Minimum part length |
17.5” |
440 mm |
|
Minimum material thickness |
1/8” |
3 mm |
|
Maximum material thickness |
5.9” |
150 mm |
|
Feed speed: variable |
12 to 46 FPM |
3.6 to 14 m/min |
