MOLDURADORA SWT-XS

PARTE # 4KU-SWT-XS - MOLDURADORA 4 CABEZALES - KUPER

Nueva con garantia

Hecha en Alemania

Llamenos para recibir toda la informacion y una cotizacion formal

The entry-level model for small companies – for planing and profiling.

profile-groove depth up to 20 mm

uncomplicated application without a control

3 standard configurations

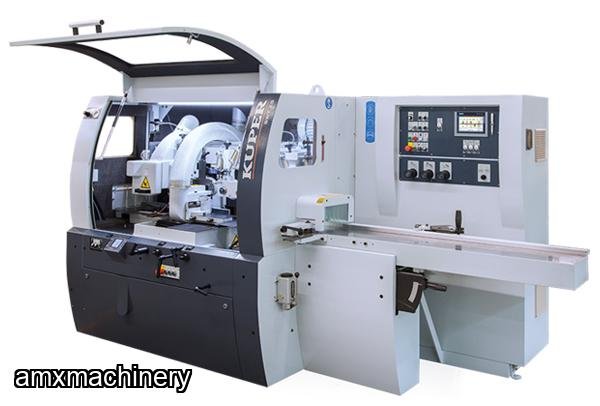

KUPER SWT XS – user-friendly and smart.

The KUPER SWT XS is the unbeaten champion of simplicity and user-friendliness.

The KUPER SWT XS impresses with its generous standard equipment with the option of chamfering or profiling up to 20 mm deep. And its practical quick-clamping system ProLock® makes make-ready a walk in the park.

Advantages at a glance:

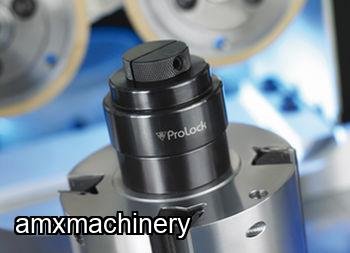

- practical tool quick-clamping system ProLock®

- hard-chromium plated infeed and machine table

- feed speed infinitely controllable via frequency converter

- end-to-end feed path, power transmission via several worm gears and cardan joints

- feed and spindle motors designed as IE3 energy saving motors

- pneumatically damped pressure shoe downstream of the top shaft, improved dynamics due to linear guides

- electric height adjustment of the feed support

- start-stop system for all spindle motors

Spindle arrangement:

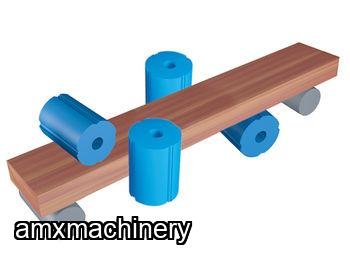

XS 4

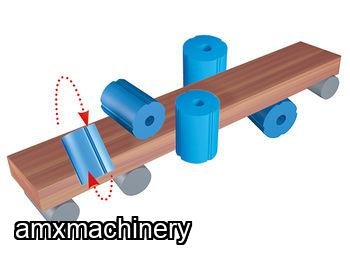

XS 4 U

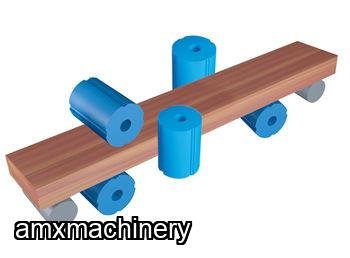

XS 5
