Identificador: 1553
Abierta
Descripción

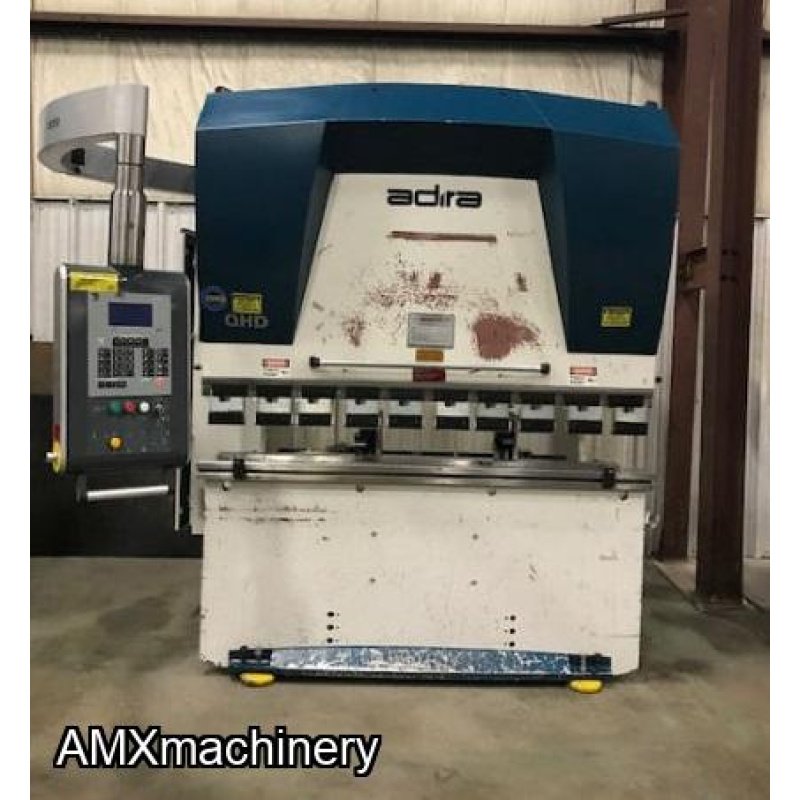

PARTE: 12321 - DOBLADORA DE CORTINA - 6'6" x 10 GA
USADA - BUENAS CONDICIONES
Model no. QHD-6020
Bending capacity: 6'6" x 10 ga. mild steel
Tonnage capacity: 70 tons
Overall length of bed & ram: 80"
Distance between housings: 61"
Stroke: 6.3"
Open height: 12.2"
Throat depth: 13"
Width of bed: 4.9"
Speeds approx.: 2.2"/second fast approach
.39"/second bend
1.7"/second return
EQUIPPED WITH: 24" Cyblec 'DNC60' two axis back gauge with vertical
adjustment
1" high x 6' long die rail
Sectional ram die clamps (10 universal die adapters)
Free standing control with electric foot switch
Pushbuttons for start - stop
Key selector switch for inch - single stroke auto -
manual return
Tonnage control with indicator
T-slots in front & back of bed
Hydraulic pump, driven by
4.8 HP 220/440/3/60 motor
Weight approx. 10,000 lbs.
Overall dimensions approx. 91" L-R x 75" F-B x 105" H
