Identificador: 2282
Abierta
Descripción

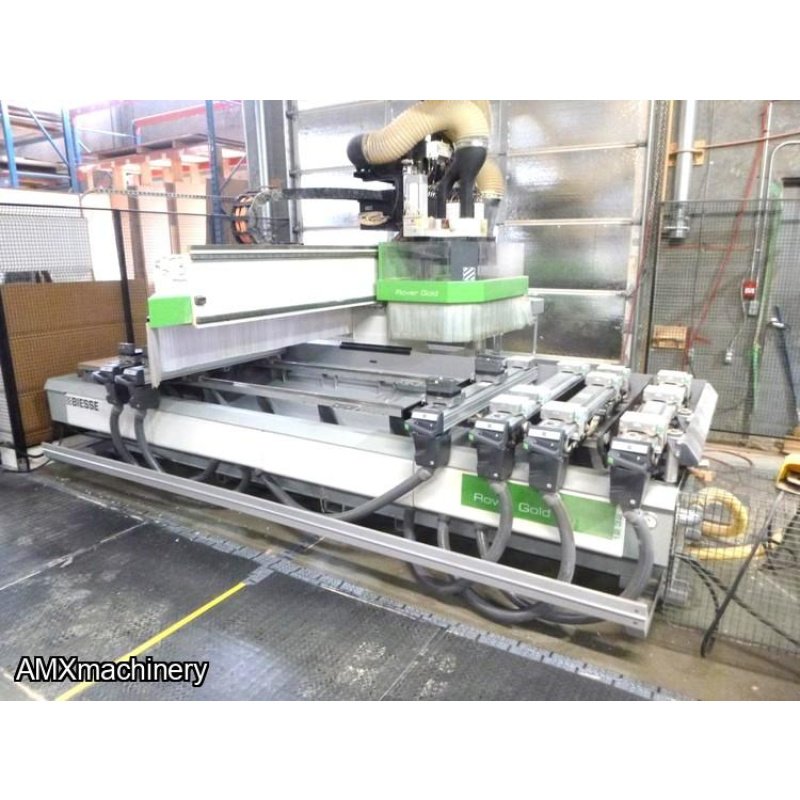

PARTE: 12526 - CENTRO DE TRABAJO CNC - ROVER GOLD 1232
USADO - MUY BUENAS CONDICIONES
Numerically
controlled machining centre ROVER GOLD 1232
Working fields: X = 3.280 mm; Y = 1.260 mm; (electrospindle axis)
Z Clearance = 180 mm with H=74 mm modules – Z Stroke = 364 mm
WORKING TABLE
6
ATS panel supports - L = 1240 mm - 18 sliding bases for vacuum
6
back stops of 115 mm stroke and 26 mm height spacers
6
front stops of 140 mm stroke
4
side stops of 140 mm stroke (2 RH + 2 LH) including the pneumatic system
12
Vacuum modules with dimensions 132 x 146 x H74 mm
6
Vacuum modules with dimensions 132 x 75 x H74 mm
12
CLAMPING UNITS for the locking of narrow pieces
OPERATING GROUP
13.2 kW (17.7 HP) Electrospindle with ISO 30 adaptor and air cooling
Main specifications:
11 kW (13.6 HP) from 12,000 to 15,000 rpm in S1 duty
13.2 kW (16.1 HP) from 12,000 to 15,000 rpm in S6 duty
ceramic bearings
Rh and Lh
rotation
rotation speed from 1,000 to 24,000 rpm, programmable by N.C
It includes a dust extraction hood with 6 different positions in Z controlled
by the NC, in relation to the length of the tools or the different programs.
The hood is automatically deactivated when the electrospindle is not working.
