PARTE: 12545 - LINEA DE PINTURA UV - SUPERFICI MINI PLUS

PARTE: 12545 - LINEA DE PINTURA UV - SUPERFICI MINI PLUS

USADA - MUY BUIENAS CONDICIONES

Passline Height: 900 mm
Operating side: RH, as viewed from inlet of line, LH available as a special order.
Workpiece Dimensions (Approx.):
Min. - max. length: 300 mm - 4880 mm (12" - 16')
Min. - max. width: 25 mm - 1300 mm (1" - 51”)
Min. - max. thickness: 3 mm - 90 mm (1/8" - 3-1/2")
Max. weight: 3# per sq. ft
Speeds:
Mechanical speed: 1-3 m/min
Avg. production speed: 2 m/min
Connections:
Voltage: 480 V/ 3 Ph + Ground / 60 Hz
Standard distribution system: TN-S
Compressed air: 6 bars
Thermal connection (NOT required for sprayer – if optional dryer is
purchased, the heating coil is electric)With paper protective system for belt conveyor.

CONVEYING SYSTEM AND PAPER PROTECTION DEVICE
In-feed and out-feed driven roller conveyor system.
Central belt conveyor with protective paper device.
The paper function is to absorb the overspray, thus protecting the conveyor
belt underneath.
The machine is equipped with a paper roll unwinding system at the in-feed
and rewinding system at the out-feed.

GENERAL DESCRIPTION

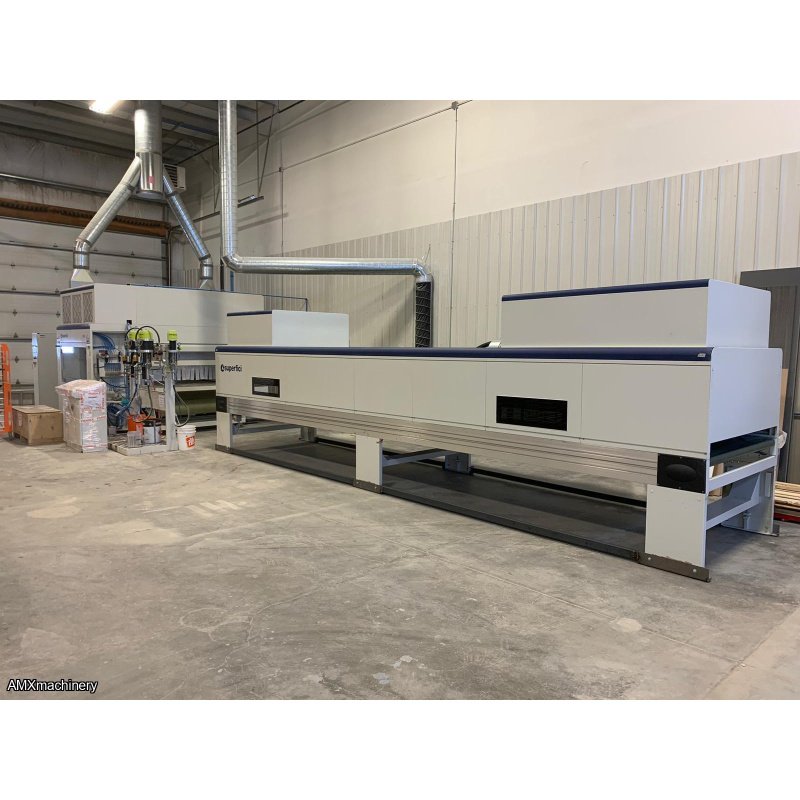

The automatic through-feed spraying machine mod. MINI achieves the
advantages of automatic spraying process with a limited investment.
SPRAYING ARM AND LACQUER CIRCUITS
Lacquer application system consisting of a reciprocator with single arm
driven by brushless motor and sliding on a high precision linear guide.
Accurate motion guaranteed by high precision reducer.
The arm is equipped with guns holder supporting up to max four guns, with
two lacquer circuits.
To achieve a higher level of flexibility, the MINI features, as standard, the
QUICK-CHANGE system for the guns holder.

Approx size if unit is

Mini pluis sprayer is 12'

dryer is 25'

infeed table 8'

approx 45 feet long
