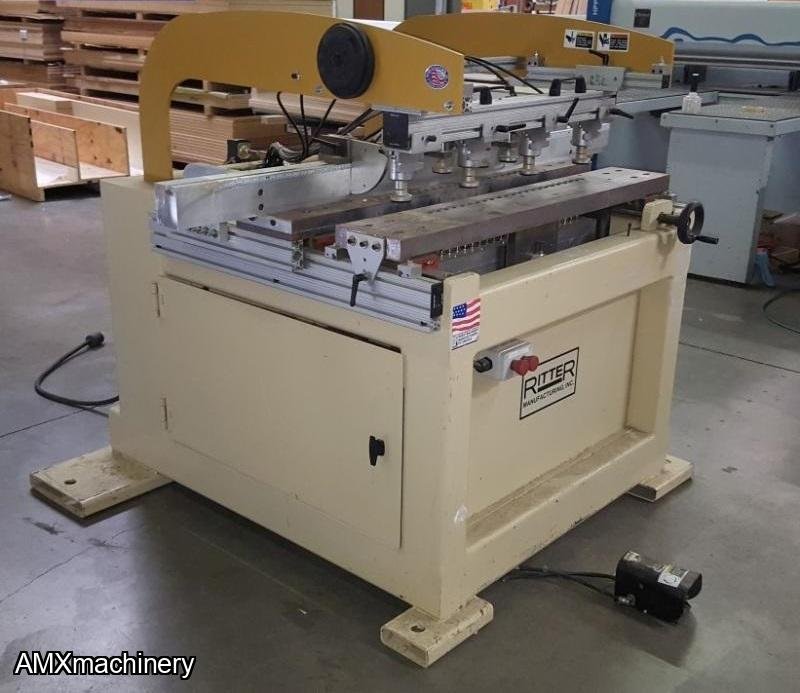

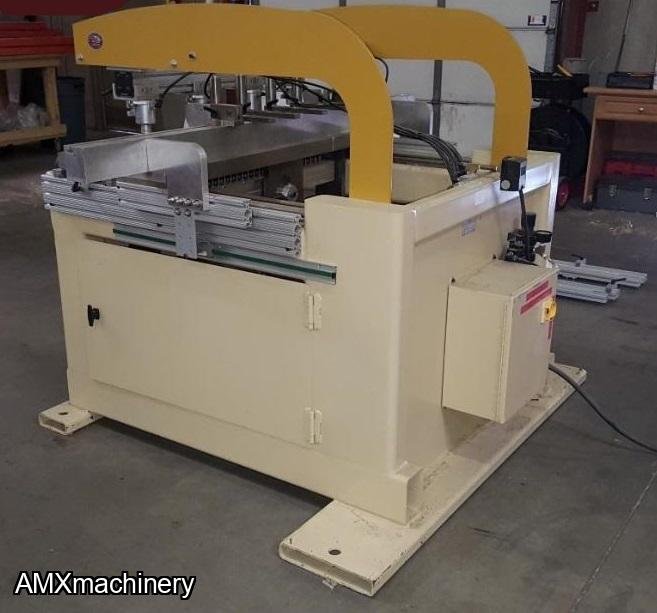

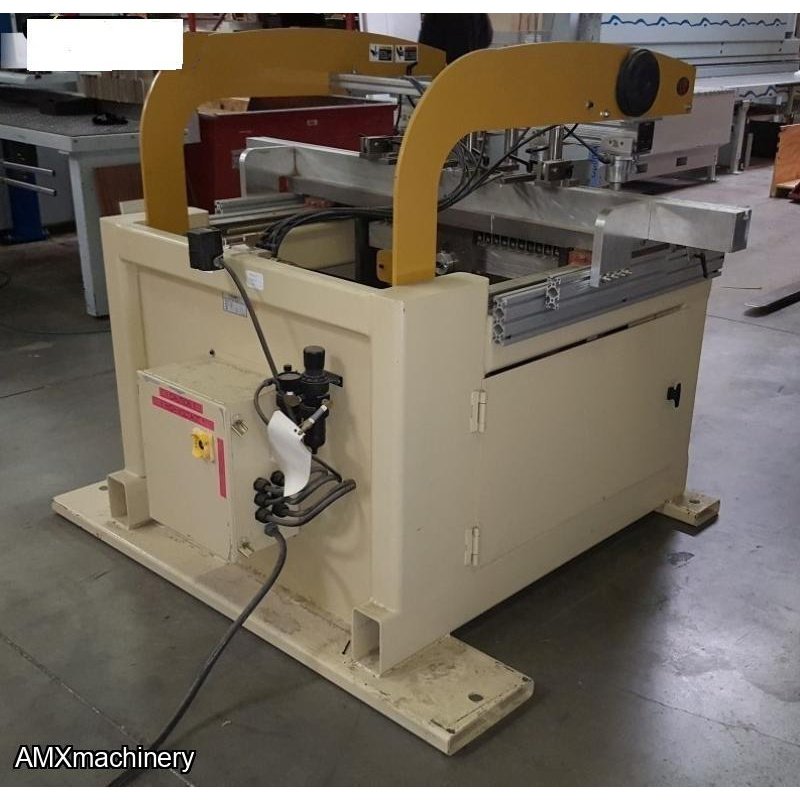

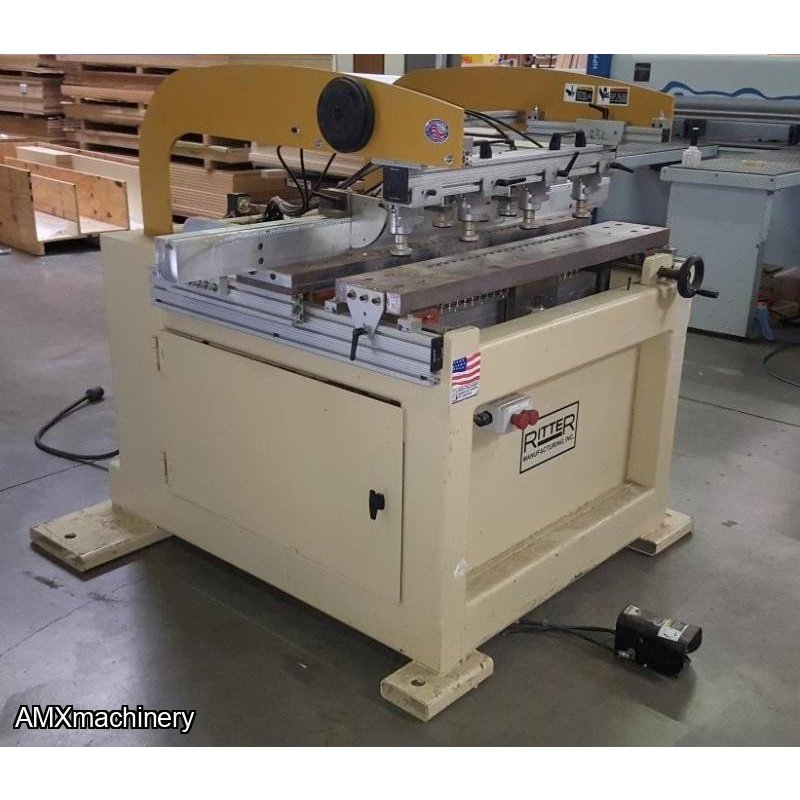

PARTE: 12584 - TALADRO MULTIPLE – RITTER R246

USADO - MUY BUENAS CONDICIONES

(2) Bottom vertical drill heads, each with (23) gear driven spindles on 32 mm centers (24 RH and 22 LH rotation), (2) 3 HP motors, 3,450 RPM spindle speed.

Row & boring head spacing adjustable from 5" - 24" with mechanical digital readout, pneumatic cylinder drill head advance, 0" - 1-1/2" adjustable stroke and 3-position turret depth control.

Equipped with: (4) Overhead adjustable pneumatic holddowns on each head, 72" long "traveling" back fence system with 0" - 3" adjustment from rear head spindle center line, hand wheel adjustable (fence line & rear head move together or the rear head can be manually adjusted independent of the rear fence line).

(2) Adjustable Heavy Duty material flip stops and (2) 53" left & right fence extensions each with (3) adjustable material stops.

Each head with 49" long x 8" wide panel support table (front table moves with front drill head), above table tool change positions.

Includes & features: 10 mm Dia. spindle collets, single or double row drill head stroke control, foot pedal activated and magnetic push button motor starter with overload.

Dimensions: 72" L  x  60" W  x  52" H

Weight: 3,040 Lbs (estimate)

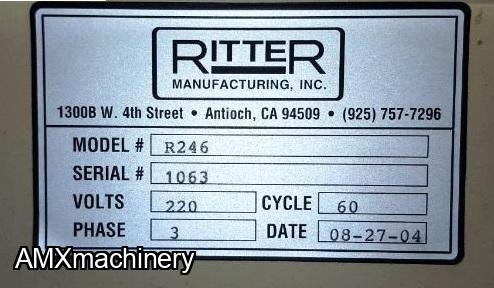

Elect./Voltage: 220V, 60 Cy, 3 Ph.

Year MFG: 2004
