PARTE: 2AM-U-300P - ARMADORA DE MARCOS - SEMIAUTOMATICA - PRODUCCION

PARTE: 2AM-U-300P - ARMADORA DE MARCOS - SEMIAUTOMATICA - PRODUCCION

NUEVA CON GARANTIA

Con la maquina viene incluido:

(1)        7mm Nail Head

(1)        10mm Nail Head

(1)        12mm Nail Head

(1)        Single Vertical Positive Placement Clamp

(1)        Single Metal Pressure Plate

(1)        Magnetic Support for Vertical Placement Clamp

(1)        Blue Rubber Pads (SW)

(1)        Yellow Rubber Pads (MW)

(1)        Black Rubber Pads (HW)

(1)        4mm Allen Wrench

(1)        5mm Allen Wrench

(1)        Magnetic V-Nail Pick-up Tool

(1)        Machine Manual

Accesorios opcionales:

Pedestal de piso

Extensiones Kit de alas

Soporte para mesa

Video: https://vimeo.com/493480055

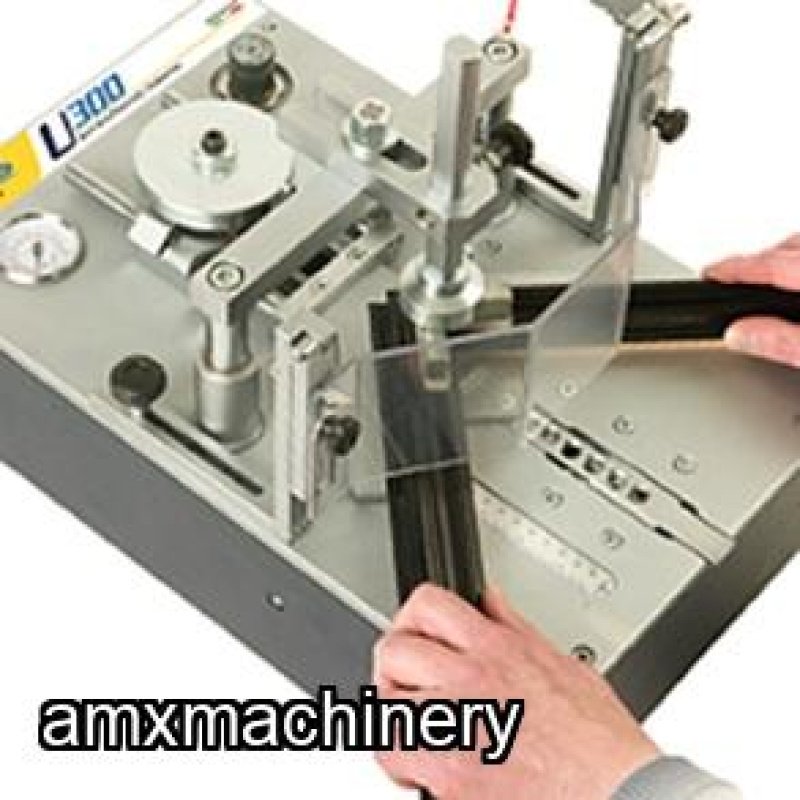

The U-300P is a bench top, base model for production joining applications where the customer is looking for speed and repeatability of joining the same sized moulding.

The design of the U-300P allows the operator to set up to 3 position stops for V-Nail insertions. The nail head pneumatically moves underneath the fixed frame and the joining cycle is actuated first by the hand lever locating the pre-set V-Nail position and then the V-Nail is inserted by actuating the foot pedal.

For those customers looking a similar type of joining machinery but require flexibility of joining different moulding sizes, refer to our U-300 unit
