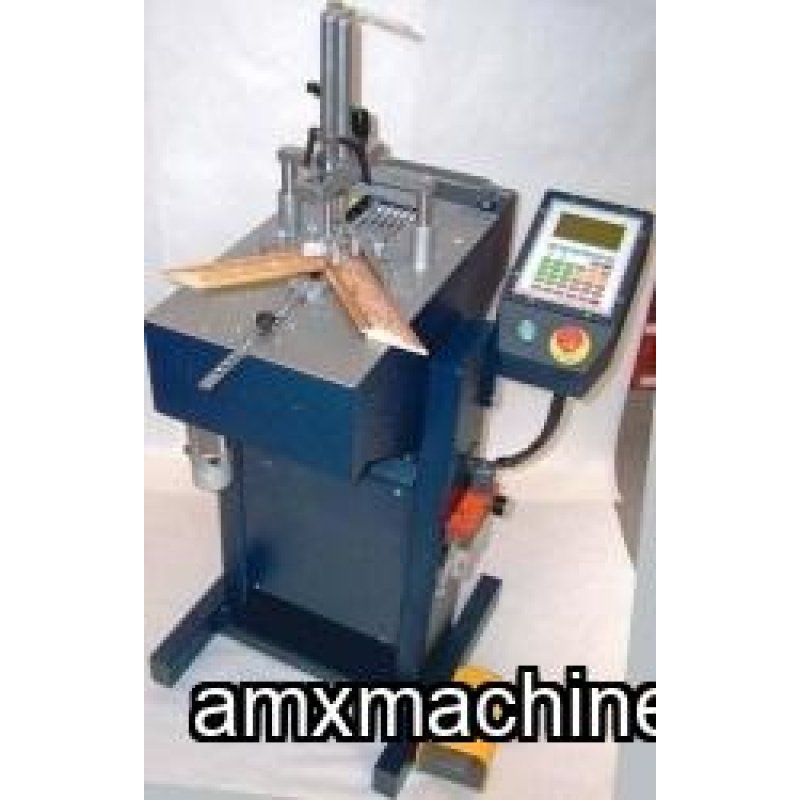

The U-600 is the most advanced frame joining machine in the picture framing and woodworking industries. It balances sophistication, performance, and operating flexibility for joining picture frames, door and window frame assemblies.

This machine is ideal for medium type production facilities requiring flexibility for different sized V-Nail fasteners or a common mm size through a patented*, configurable channel feature.

With profile data storage of 5,000 different frames, the operator can easily recall any frame profile either alphabetically, numerically, or using the barcode reading option.

The U-600 now includes a new operating function with its C.A.P.S (Computerized Air Pressure System) feature. See tab below for more details.

Unique Performance Features

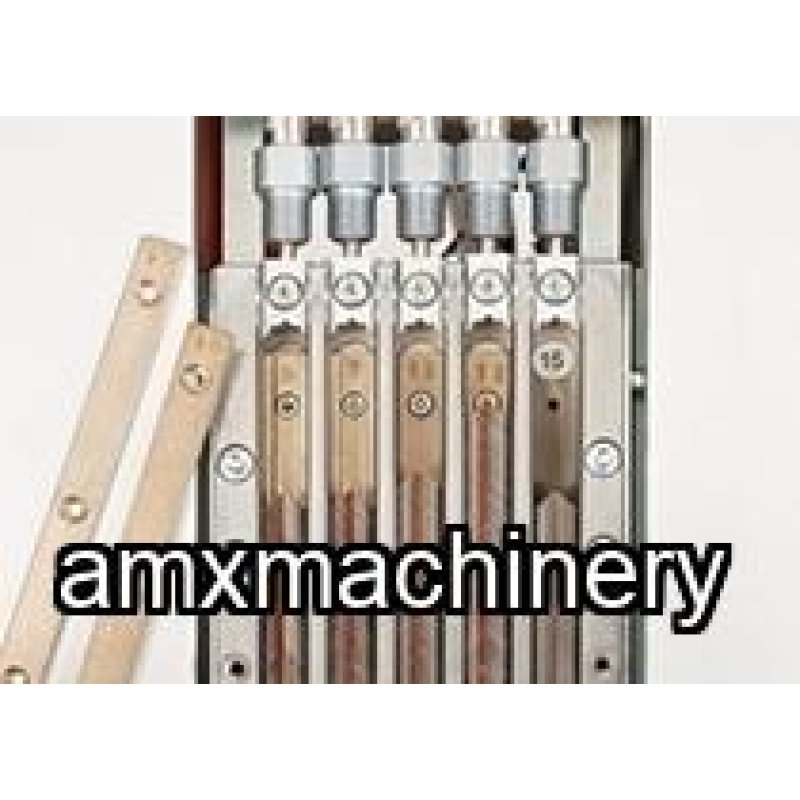

UPF_alfa_u_600.pngEquipped with five individual V-Nail storing channels, capable of holding up to 220 V-Nails each

V-Channels can store multiple sizes or one common size for production uptime and productivity

Easy table tilt adjustment for operator comfort

User friendly touch-screen P.C. operation with data storage for 5,000 frame profiles

Bar Code Scanner option for production integration and efficiency

Join from front or back of machine

Machine handles all types of wood, plastics, and MDF materials

Frame Joining Capabilities

Moulding Width (min to max): ¼” up to 4 ¼” (6-105 mm)

Moulding Height (min to max): ¼” up to 3 ¼” (6-80 mm)

Max Distance Between V-Nails (stroke): 5 ¾” (145 mm)

Pre-set V-Nail Position Stops: Multiple

V-Nail Sizes: 5, 7,10,12,15 mm (SW-HW-HDF)

V-Nail Channel Capacity: Adaptable to single size or multiple V-Nail mm sizes 5 individual channels – 220 V-Nails/channel

Computerized Air Pressure System

Alfamacchine’s U-600 Computerized Air Pressure System (C.A.P.S.) is the latest operating feature for frame joining eliminating the need to making manual air pressure adjustments for the Vertical Clamping Mechanism. The software includes the functionality of applying a soft vertical clamping motion reducing moulding damage with soft materials or delicate finishes.

This new system provides the following production features...

Eliminates the need of making manual air pressure adjustments for Vertical Clamping Mechanism

Maximizes production efficiently with pre-set clamping pressures

Eliminates moulding material damage by controlled vertical clamping pressure

"Soft" vertical clamping option reducing the chance of moulding surface damage with very soft materials or surfaces with gesso or other delicate finishes

To utilize this new feature, the operator stores in the air pressure values needed depending on the moulding hardness for each of the frame profiles stored in memory. By setting a pressure setting into the memory database, programs recalled through the key pad or barcode scanning option automatically sets the clamping air pressure needed.

All new equipment purchases for the U-500 and U-600 now include the C.A.P.S feature and a field retrofit kit, P/N 298390450, is available for upgrading current customer machines looking to use this new operating feature.

U-600 Purchase Package

(1) “Multi-Sized” Nail Head

(1) Single Vertical Positive Placement Clamp

(1) Single Metal Pressure Plate

(1) Double Metal Pressure Plate

(2) Blue Rubber Pads (for SW)

(2) Yellow Rubber Pads (for MW)

(2) Black Rubber Pads (for HM)

(1) C.A.P.S Operating Software Feature

(1) Front Horizontal Clamp

(1) Each of 4, 5, 6 & 8mm Allen Wrenches

(1) Star Wrench (to change 12mm configurable shim)

(1) 2.5 Allen Wrench (to change 5, 7, 10 & 15mm configurable shims)

(1) Magnetic V-Nail Pick-up Tool

(1) Touch Screen PC Panel

(4) Machine Base Levelers

(1) 3 Stage Air Pressure Filter Regulator

(1) Adjustable Fence - 3 knobs

(1) Machine Manual

Machine Dimensions & Weight

Length 730mm (29")

Width   800mm (31 1/2")

Height  1310mm (52")

Weight 150kg (330lbs.)

Power Requirements

115/220 Volt 50/60 Hz.

Compressed Air 4NI at 5 Bar

Options

Multi‐Sized Nail Head

Support Table ‐Bracket Kit (Includes Brackets, Washers, M8 Bolts, Screws)

Support Table, Wood ‐(Brackets not included ‐See 04‐046)

Barcode Scanner ‐(Cables not included ‐See 04‐073 / 04‐074)

USB Cable for Barcode Scanner

RS232 Cable for Barcode Scanner
