Identificador: 2639
Abierta

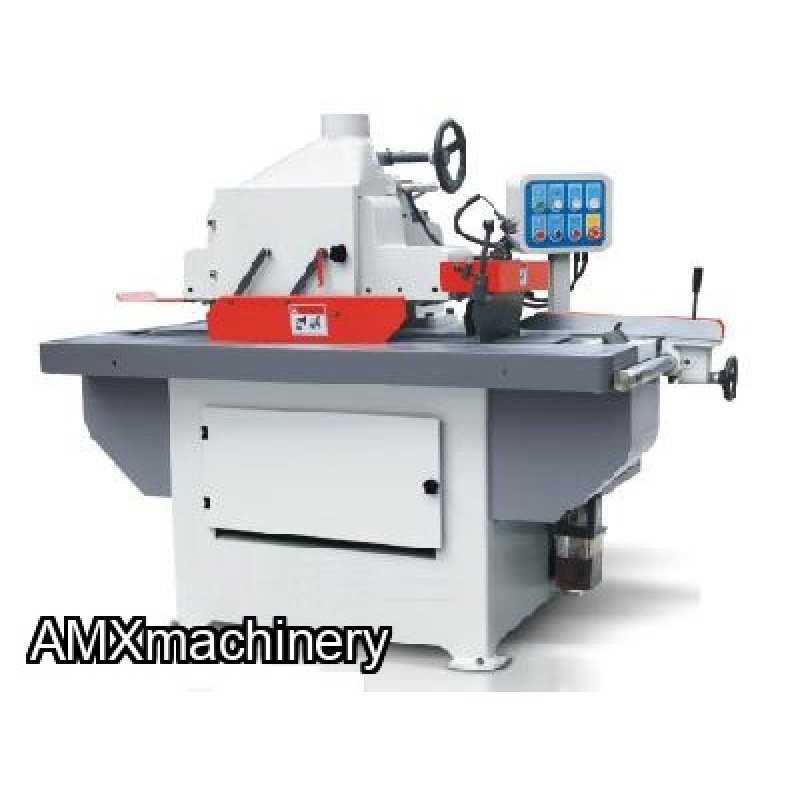

PARTE: 2CA-TRS-1112 - SIERRA RAJADOR - 1 HOJA – UNION PEGADO – MOTOR 15 HP – SIERRA 12”
AMXmachinery
Descripción
PARTE: 2CA-TRS-1112 - SIERRA RAJADOR - 1 HOJA – UNION PEGADO – MOTOR 15 HP – SIERRA 12”
Nueva con garantía
- Their precision machining and attention to operator safety and the production needs make these machines some of the most cost effective machines available in the world today.
- Hard chrome-plated table for maximum wear resistance.
- Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge.
- Double anti-kickback fingers mounted at the infeed end provides maximum safety protection.
- Heavy-duty industrial motor for powerful cutting capacity.
- Ruggedly constructed sheet metal frames for durability usage.
- The variable feed speed enables the machine to meet different requirement of work.
- V-way track and chain block surface are heat-treated for long wear resistance.
- Automatic lubrication to V-Way track facilitates chain running smoothly.
- Precision built saw head ensures accuracy for straight line rip saw operations.
- The saw arbor is manufactured from NI-Cr-MO alloy steel for durability and anti-fatigue, heat treated, precision ground and balanced providing precise cutting performance.
- Four bearing spindle mount ensuring rigidity & long life.
- Four pressure rollers for precise cutting of large and small workpieces.
- Heavy-duty cast iron table.
| SPECIFICATIONS | 2CA-TRS-1112 | 2CA-TRS-0016 | 2CA-TRS-0018 |
| Maximum Cutting Depth | 3-3/8" | 5" | 4-3/4" |
| Arbor Diameter | 1" | 1" | 2" |
| Max. Amount of Blades Per Spindle | 1 | 1 | 1 |
| Saw Blade Size | 12" | 10" ~ 16" | 14" ~ 18" |
| Table Dimensions | 28" x 61" | 40" x 70" | 58" x 78" |
| Spindle Speed | 3300 RPM | 3600 RPM | 3600 RPM |
| Feeding Speed (RPM) | 30 ~ 72 | 30 ~ 85 | 30 ~ 85 |
| Throat Depth (1st Blade) | 14" | 20" | 26" |
| Main Motor | 15 HP | 15 HP | 20 HP |
| Feed Motor | 1 HP | 1 HP | 3 HP |
| Feed Chain Width | 6" | 6" | 8-3/4" |
| Automatic Lubrication | YES | YES | YES |
| Minimum Workpiece Length | 12" | 12" | 8" |
| Exhaust Hood Diameter | 4" | 4" | 4" |
| N.W. | 1960 LBS | 2600 LBS | 3800LBS |
| G.W. | 2130 LBS | 2900 LBS | 4600 LBS |
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
SIERRA RADIAL - DISCO 15.75” - 4 HP - LARGO 27.75”
PARTE: 2MA-800CE -
SIERRA RADIAL - DISCO 15.75” - 4 HP - LARGO 27.75”
NUEVA CON GARANTIAHeavy castings and the eight bearing saw
carriage makes this machine very accurate and rigid. European quality made to last!4 HP, 2800 RPM motor400 mm (15.75") Blade diameter capacity
(Not included)30 mm Arbor diameter73.23" x 45.08" Table size27.75" Max crosscut length on 3/4"
thick material (90 deg)0 to 40.5" Rip capacity4.9" Max depth of cut19.68" Max cut length at 45 deg on right
side12.20" Ma...
AMXmachinery
PARTE: 2GM-HBR-05375-4R – ROLADORAS DE 4 RODILLOS – 5 – 10 PIES
PARTE:
2GM-HBR-05375-4R – ROLADORAS DE 4 RODILLOS – 5 – 10 PIES
Nueva con garantía
2GM-HBR-05375-4R – ROLADORA
DE 4 RODILLOS - 5’ x 3/8”, 7.5 HP, 220/440V, 3PH
2GM-HBR-06375-4R – ROLADORA
DE 4 RODILLOS - 6’ x 3/8” , 7.5 HP, 220/440V, 3PH
2GM-HBR-08375-4R – ROLADORA
DE 4 RODILLOS - 8’x 3/8” , 10 HP, 220/440V, 3PH
2GM-HBR-10375-4R – ROLADORA
DE 4 RODILLOS - 10’x 3/8” , 10 HP, 220/440V, 3PH
AMXmachinery
POSTFORMADORA EVANS 0100
PARTE: 12028 - POSTFORMADORA EVANS 0100USADA EN BUENAS CONDICIONES
AMXmachinery
PARTE: 12346 – LIJADORA BANDA ANCHA – 4 LIJAS - SUPERIOR E INFERIOR – 52” ANCHO - COSTA
PARTE: 12346 – LIJADORA BANDA ANCHA – 4 LIJAS - SUPERIOR E INFERIOR – 52” ANCHO - COSTA
USADA - BUENAS CONDICIONES
La
máquina se retiró trabajando en buenas condicionesWidth
Capacity: 53"Sanding
Belt Size: 53" x 103"Machine
#1Bottom
Head #1: ~10" Diameter Grooved Steel Drum, 47 HP, 460vBottom
Head #2: ~10" Grooved Rubber-Covered Contact Drum, 47 HPBottom
Head #3: ~10" Grooved Rubber-Covered Contact Drum, 32 HPBottom
Head #4: Finishing Platen, 23 HPMachine
#2Top Head
#...
