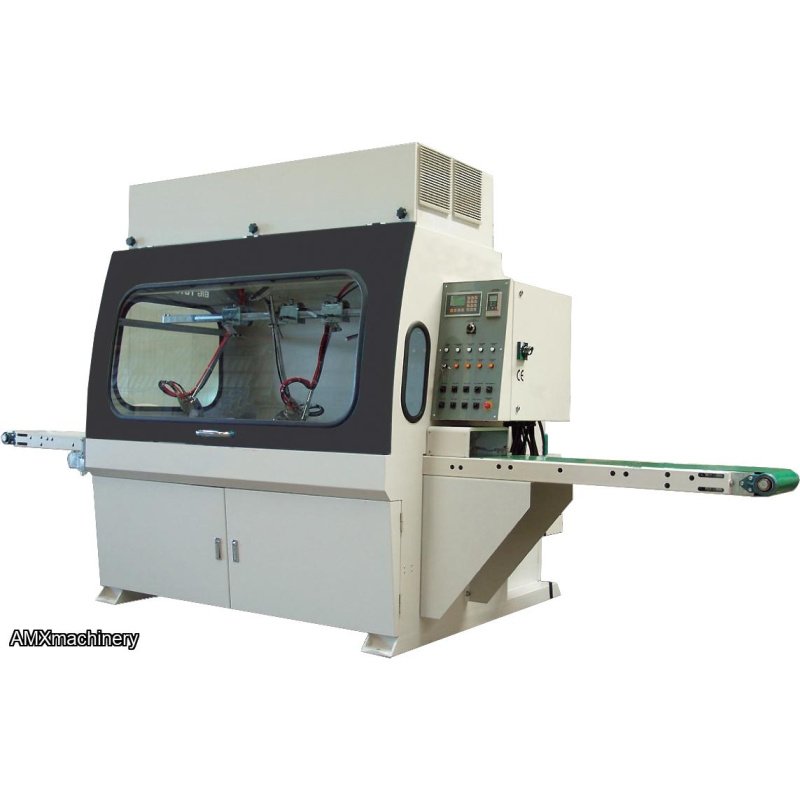

PARTE: 2CK-CD-305 - CASETA DE PINTURA - CONTINUA PARA MOLDURAS
Allows the automatic in line spraying of lacquers & stains on mouldings, picture frames, door, window & furniture components up to 305mm wide. The wide spraying booth contains 6 spray guns that are automatically timed by photocells to minimize material usage and waste. A PLC control system, equipped with LCD display, checks all the machine functions and setup.
- 6 High Quality, Gold River Spray Guns which are controlled by individual air pressure regulators
- PLC control for easy operation and set up
- Fast spraying processing for profile strips & edges
- The spray guns are controlled by photocell sensor for auto spray time and amount of spray – saves material
- Easy cleaning of guns with independent valve systems
- Internal components manufactured out of stainless steel
- Powerful collection fan for air purification through filter
- Totally enclosed Cabinet to minimize pollution with forced air unit
- Paint recycling unit included for collecting and reusing overspray.
- Variable feed speed control from 33~100 FPM (higher feed speed available upon request)
- Convenient rack & pinion lateral adjustment of the spray guns
- Paper filters are used on both sides of roller conveyer which is in the spray chamber & a fiber glass filter is used on the back side of spray chamber to ensure a clean machine & clean air
- Machine can be used for water based or UV coating material (solvent based product)
|
Max. Width |
12″ (305mm) |
|
Max. Thickness |
3.54″ (90mm) |
|
Max. Length |
Infinite |
|
Min. Length |
21.65″ (550mm) |
|
Feed Speed |
33~100+ FPM (10M~30M/min) |
|
Feed Motor |
1 HP |
|
Exhaust Fan Motor |
5 HP |
|
Electrics |
230/460 or 575/3/60 to CSA/UL Standards (specify) |
