PARTE: 2CK-MX340 – ENCHAPADORA DE CANTOS AUTOMATICA

PARTE: 2CK-MX340 – ENCHAPADORA DE CANTOS AUTOMATICA

NUEVO CON GARANTIA

High-quality edge banding results for cabinet parts and case goods.

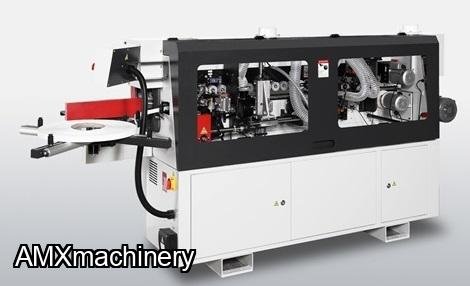

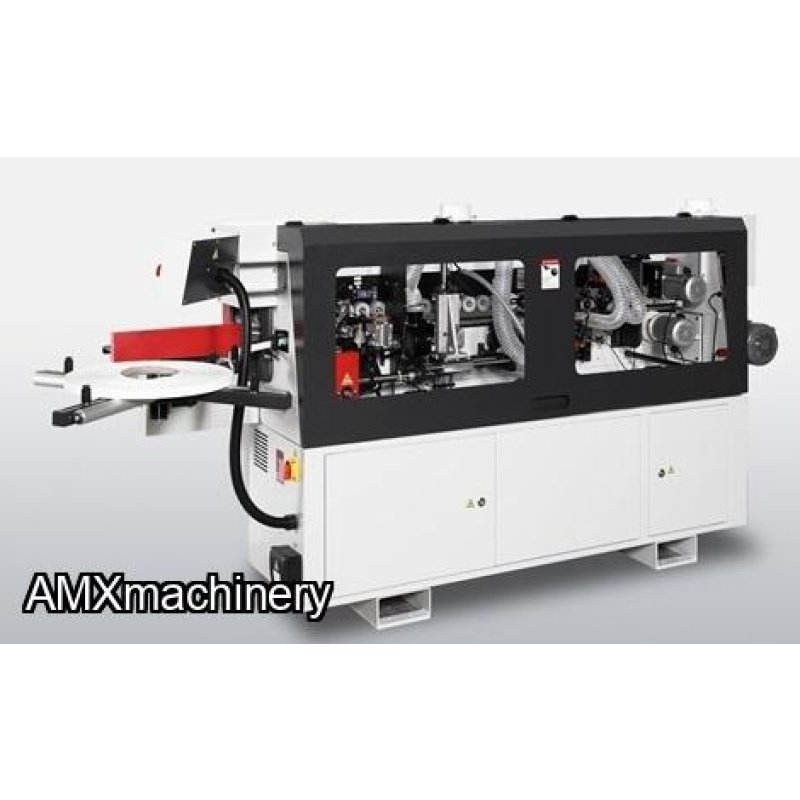

The MX340 Automatic Edgebander is a compact edgebander capable of applying up to 3mm thick edge tape on cabinet parts and more.  It comes equipped with high-frequency motors on both the end trim and top & bottom trim.  In addition, it is equipped with PVC radius scraping and buffing units.  Its compact design and affordable price point make it the ideal edge banding solution for the small cabinet shop that does not require pre-milling.

Why MX340 Automatic Edgebander?

·         Versatile edgebander capable of applying 0.4mm to 3mm edge tape.

·         Quick change glue pot allows you to change glue colours in minutes.

·         High-frequency end trim & flush trim motors produce fine edge finishing results.

·         Multi-function trimmers allow for flush or radius trimming on edge banding.

·         Radius scraping removes any knife marks on radius edges.

·         Buffing unit polishes the edge.

·         A powerful chain feed system ensures workpiece stability during application and processing a high-quality finish.

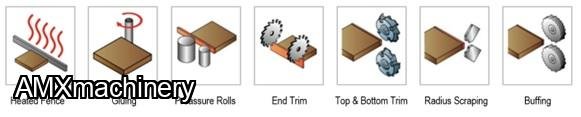

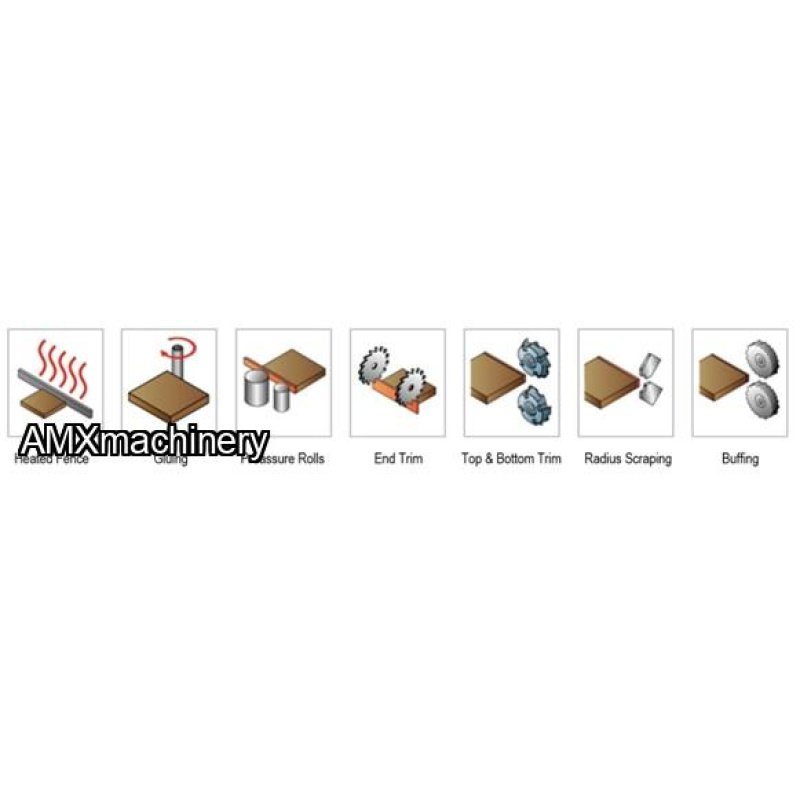

Key Advantages

·         Teflon-coated Quick Change glue pot can be removed and exchanged in only minutes. It comes with (1) a quick change pot, and others can be acquired for running different color glues.

·         Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed.

·         Conveyor chain feed system for reliable results.

·         Heated infeed fence for pre-heating the panel for optimum glue penetration.

·         PLC control system with LED display and keypad.

·         Workpiece is fed by chain.

·         Edge coil support plate: Ø 800mm (31 ½") for PVC/ABS.

·         Spring-loaded pressure unit with (2) pressure rollers.

·         Heavy-duty pressure beam with extendable workpiece support.

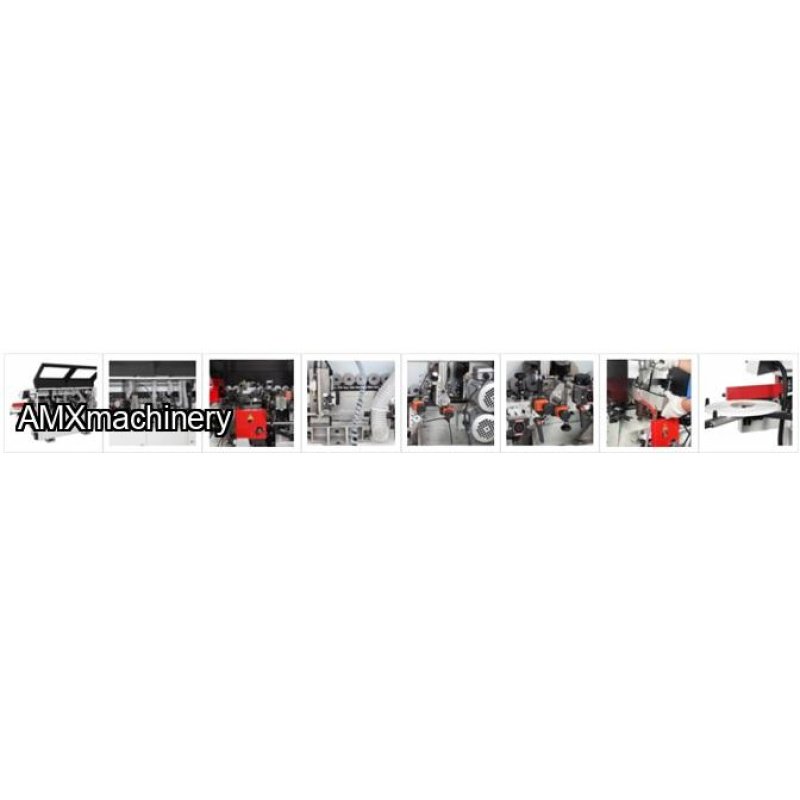

Operator controls

Edge feeding is automatic for coil materials with a thickness of 0.4–3 mm. Strips to 3mm can be fed individually. The operator control panel is conveniently located at the infeed of the machine.  It controls the glue temperature, on/off for each working unit, and emergency stop. It comes equipped with a heated infeed fence that pre-heats the panel's edge for superior glue absorption for a better bond.

Heavy-duty chain feed

The steady workpiece feeding system comprises a driven chain with rubber-covered chain pads and dual row of top idle pressure rollers.  This system ensures the workpiece is held firmly and travels smoothly during the machining process to ensure the optimum edge quality.

Quick change glue pot

The 1.2 kg Teflon-coated glue pot is designed for EVA hot-melt glue. The glue is applied by a roller, and the glue amount is adjustable. The glue pot is a Quick-Change type and can be removed and replaced in less than 1 minute.  Excellent for fast glue color change or maintenance. The machine comes with (1) glue pot, and additional pots are available (see options).

Guillotine shear

The guillotine shear can rough trim coiled material up to 3 mm in thickness.

Pressure rollers

The pressure roller unit consists of one large roller, followed by a smaller one. The purpose of the unit is to improve the glue bond between the edge and the material. Due to the "Quick" setup system, the unit is mechanically spring-loaded and can be adjusted exactly to the required edge thickness. The adjustable spring system allows for a perfect bond between the panel and edge every time.

High-frequency end trim

The end trim system is a single motor with (2) saw blades.  The unit is mounted on high-precision linear bearings, which ensure perfect cutting results for years to come. The high-frequency 12000 RPM motor meets any challenge regardless of edge type and thickness.

High-frequency top & bottom trimmers

Equipped with (2) high-frequency motors for top & bottom trimming of the panel.  Each motor has an inset knife cutterhead which can be adjusted from flush to bevelled finish for thin edges, and radius trimming (2mm radius) for thicker edges is quick and easy. The high-frequency 12000 RPM motors produce a fine finish on edge materials.  The motors are adjusted in and out using precision mechanical readouts for fast and accurate adjustment.

PVC scraping unit with 2mm radius knives and buffing motors

The radius scraping unit fine-tunes the edge radius while removing knife marks during the milling process on radius edging. Insert knives have a 2mm radius. The buffing unit leaves a super finish on ABS and PVC edging and removes any discoloration on the edges, especially when working with dark edge material.

Specifications

Options

Additional Quick-Change Gluepot

The quick-change glue pot can be exchanged in minutes. Purchasing an additional glue pot allows you to have one designated for clear glue and the other for a colour such as white.  All of this is to provide the optimum edge quality for your cabinet components and doors.

3 mm Tooling

Lower Trimming Cutter (R=3 mm) 4 Required

Upper Trimming Cutter (R=3mm) 4 Required

Scraper Cutter (R=3 mm) 2 Required
