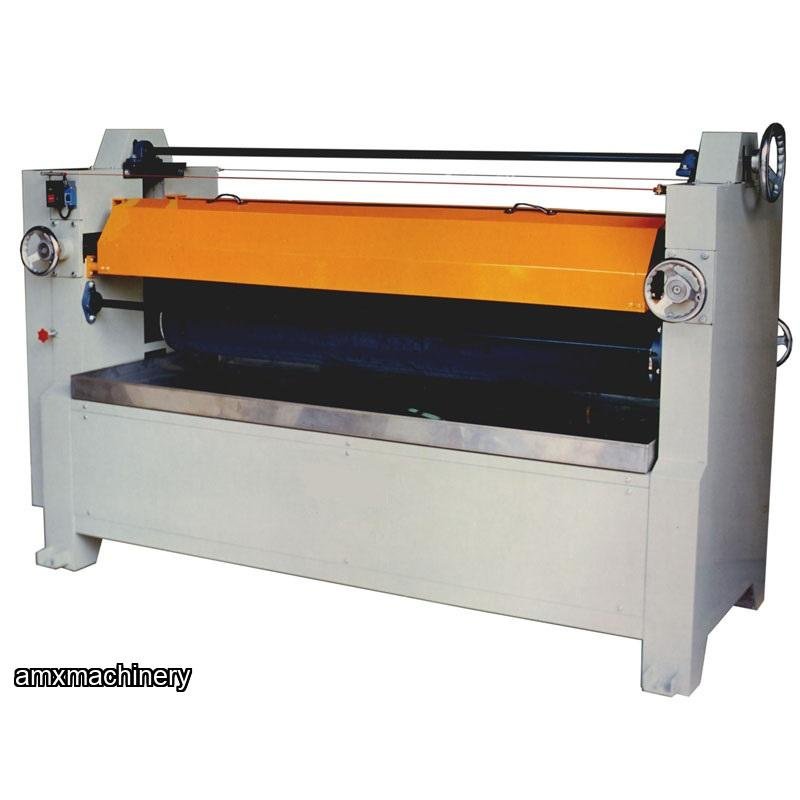

PARTE: 2QM-R-RCGS - ENGOMADORAS 1 Y 2 LADOS - ANCHO 24", 48" Y 63"

PARTE: 2QM-R-RCGS-1-24-1.75 - ENGOMADORA - 1 LADO   – ANCHO 24” - 1.75” ABERTURA

PARTE: 2QM-R-RCGS-1-24-1.75 - ENGOMADORA - 2 LADOS – ANCHO 24” - 1.75” ABERTURA

PARTE: 2QM-R-RCGS-1-48-1.75 - ENGOMADORA - 1 LADO   – ANCHO 48” - 1.75” ABERTURA

PARTE: 2QM-R-RCGS-1-48-1.75 - ENGOMADORA - 2 LADOS – ANCHO 48” - 1.75” ABERTURA

PARTE: 2QM-R-RCGS-1-63-1.75 - ENGOMADORA - 1 LADO   – ANCHO 63” - 1.75” ABERTURA

PARTE: 2QM-R-RCGS-1-63-1.75 - ENGOMADORA - 2 LADOS – ANCHO 63” - 1.75” ABERTURA

Nuevas con garantía

Opciones:

Guardas para Rodillos

Velocidad Variable (40-118 fpm)

Abertura 6” - $

Features:

• 1-sided (applies glue to 1 side [top side] of each panel) or 2- sided for 2-sided machine

• Working thickness: adjustable from 0 to 45mm (0 to 1.77"), adjustable via hand wheel

• Maximum material width: 630mm (24") or 1220mm (48”) wide or 1600mm (63”)

• Application rolls quantity: 1 or 2

• Application rolls material: SBR rubber, 60 durometer (Shore A)

• Application rolls diameter: 205mm (8") or 210mm (8.27”) for 48”, or 210mm (8.27”) for 63” wide

• Application rolls grooving: 20 grooves per inch

• Doctor rolls quantity: 1 or 2

• Doctor rolls material: Chrome-plated steel for 24” or NBR rubber, 98 durometer (Shore A) for 48” and 63” wide

• Doctor rolls diameter: 148mm (5.8") or 175mm (6.9”) for 48” and 63” wide

• Doctor rolls grooving: none (smooth rolls)

• Drive motor power: 1.5kw (2hp)

• Feed rate: fixed at 64fpm (optional: adjustable from 40 to 118 fpm)

• Includes emergency stop bars at front and back of machine

• Includes stainless steel waste glue drip pan

Note:

Electrical Requirements: 220v or 440v, 3-phase, 15 amps

The machine is designed to use water based PVA glue

For best glue for his application, your customer should consult his glue supplier (Franklin International, Wilsonart, etc.).

For countertops, we believe Wilsonart 3000 is quite popular
