Identificador: 2454 Abierta

PARTE: 2TA-SFJ-4500A - PRENSA ENSAMBLADORA FINGER JOINT - 181” LARGO

PARTE: 2TA-SFJ-4500A - PRENSA ENSAMBLADORA FINGER JOINT - 181” LARGO

AMXmachinery

Contacte al Vendedor

Descripción

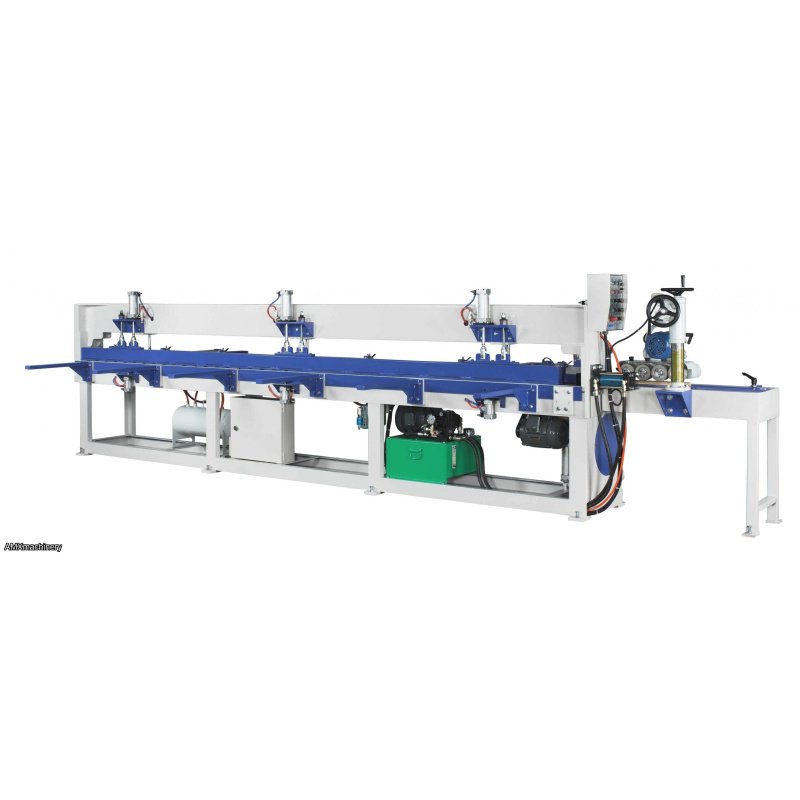

PARTE: 2TA-SFJ-4500A - PRENSA ENSAMBLADORA FINGER JOINT - 181” LARGO

Features:

Very efficient automatic machine that performs three functions:

Jointing of sectional sticks which have been glued

Cutting the jointed sticks to desired length

Final assembly is securely pressed by powerful hydraulic system

Then the jointed sticks be fed out regularly

Auto power feeder for fast feeding and auto stops at the desired length to be cut.

Furnished with cut-off saw as standard equipment for cutting workpieces to the length.

The maximum length of jointed stick is 16'.

Other sizes are available on request.

SPECIFICATIONS

2TA-SFJ-4500A

2TA-SFJ-4500C

Max. Length of Joint

181"

Max. Width of Joint

Max. Thickness of Joint

Working Speed

0 ~ 26 FT / Min

0 ~ 90 FT / Min

Cut-off Saw Speed

3500 FPM

Cut-off Saw Dia.

12" x 1" Arbor

Infeed Motor

1/4 HP

1/2 HP

Hydraulic Pump Motor

5 HP

Cut-off Saw Drive Motor

2 HP

3 HP

Machine Size (Lx W x H)

227" x 48" x 60"

286" x 57" x 60"

N.W.

3520 LBS

4180 LBS

G.W.

4300 LBS

4620 LBS
