Descripción

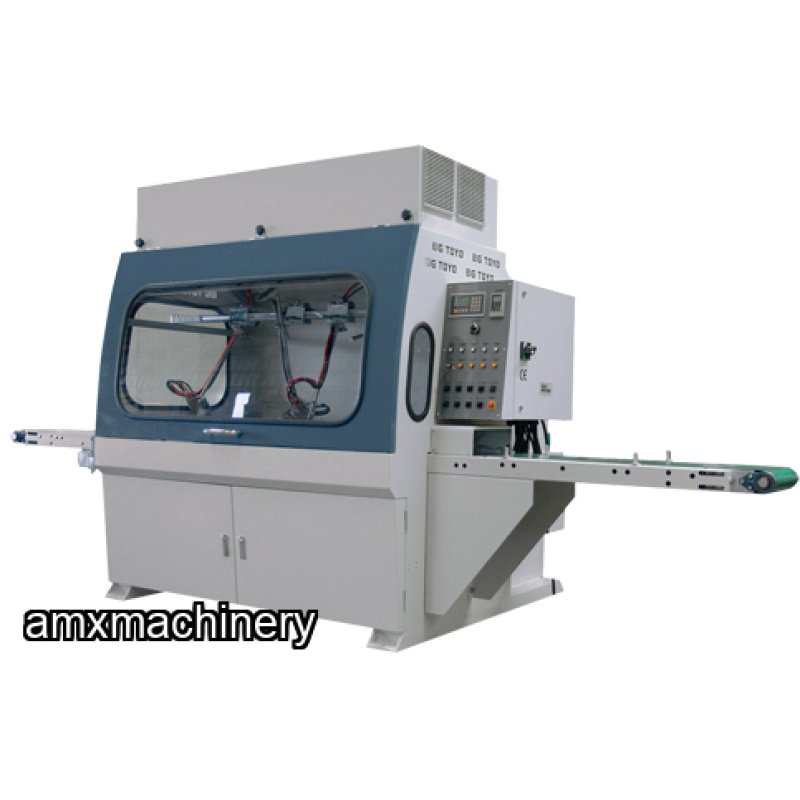

PARTE: 2TA-TS-12ATSP – CASETA DE PINTURA CONTINUA PARA MOLDURAS
Nueva con garantía
Features:
PLC control for easy operator and variability setup.
Fast spraying processing for profiles strips and two edges together or four edges at panels by one pass.
The spray guns are controlled by photocell sensor for auto spray time and saving the spray material.
Individual painting volume adjustment control for each spray gun.
Variable feed speed control for the best finish result.
Two trays to collect unused paints for re-used.
Powerful collection fan for air purifies by filter and totals enclose cabinet to achieve no pollution.
Heavy sheet metal total enclosure frames and see-through cabinet window.
Standard equipment with one pneumatic paint pump and four spray guns.
Extra spray guns are optional.
SPECIFICATIONS | TS-12ATSP | TS-24ATSP | TS-24ATAM | TS-36ATSP |
Max. Working Width | 12" | 24" | 24" | 36" |
Max. Working Thickness | 3-1/2" | 3-1/2" | 3-1/2" | 3-1/2" |
Max. Working Length | Infinite | Infinite | Infinite | Infinite |
Min. Working Length | 19" | 21-1/2" | 21-1/2" | 35" |
Feed Speed (Variable) | 32 ~ 96 FPM | 33 ~ 96 FPM | 34 ~ 96 FPM | 34 ~ 96 FPM |
Air Spray Gun | 4 PCS | 6 PCS | 4 PCS | 9 PCS |
Paint Pump | 1 Set | 1 Set | 1 Set | 3 Set |
Air Mix Spray Gun | - | - | 2 PCS | - |
Piston Pump | - | - | 1 Set | 3 Set |
Exhaust Fan Motor | 3 HP | 5 HP | 5 HP | 5 HP |
Machine Size (L x W x H) | 138" x 62" x 99" | 138" x 73" x 78" | 138" x 73" x 78" | 236" x 102" x 88" |
Net Weight | 3200 LBS | 3960 LBS | 3980 LBS | 5260 LBS |
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
TORNO COPIADOR - ASIMETRICO - ELIO VALERY
PARTE: 12291 - TORNO COPIADOR - ASIMETRICO - ELIO
VALERY
USADO - BUENAS CONDICIONES
2 MOTORES PARA LOS 4 COPIADORES 2
HP, 220V, 3 FASES
1 MOTOR DE AVANCE DE 0.8 HP, 220V,
3 FASES
1 MOTOR SISTEMA DE PULIDO
TOTAL 4 MOTORES
DISTANCIA ENTRE PUNTOS: 1.20 METROS
A 1.40 METROSEJEMPLO TIEMPO DE FABRICACION:En pata para silla o mesa de centro que es de 45cm de
altura, su tiempo estimado es de 8 a 10 minutos por la fabricación de cuatro
copias.
AMXmachinery
PARTE: 2NT-DC15SS – COLECTOR ASERRIN - 15 HP – 5000 CFM
PARTE: 2NT-DC15SS – COLECTOR ASERRIN - 15 HP – 5000 CFMNUEVO CON GARANTIABlower HP: 15HP Direct DriveShaker HP: 1/2HP3 phase, 460V26-3/8" 8-Blade ImpellerMachine CFM Rating: 5000Inlet Dust Port Size: 16" RoundOutlet Dust Port Size: 12"x15"Filters: Seventy-Two 5"x60 Clothe BagsBottom Bags: 22"x48"
AMXmachinery
LIJADORA DE MOLDURAS
PARTE # 2TA-SD-602T - LIJADORA DE MOLDURAS – 2 ARRIBAPARTE # 2TA-SD-603TU - LIJADORA DE MOLDURAS – 2 ARRIBA – 1 LADOPARTE # 2TA-SD-603TU - LIJADORA DE MOLDURAS – 2 ARRIBA – 2 LADOSNueva con garantiaDesigned for high production moulding sanding of straight stick of solid wood, veneered panel and finish between coats with profile, angular, or straight edge.Workpiece is through feed with power spring-load pressure rolls at top, without sliding for irregual surface.The brush, flap whee...
AMXmachinery
CUCHILLAS FINGER JOINT
CUCHILLAS PARA SISTEMA FINGER JOINTCuchillas de 2 alasMedidas: 160X4.0X50-2TMedidas: 160mm diametro exterior x 4mm espesor x 50mm diametro interiorPuntas de Carburo de Tusgteno2GB-FJ-00160-1 CUCHILLAS ENMEDIO - 2 ALAS2GB-FJ-00160-2 CUCHILLAS ESQUINAS - 2 ALAS
