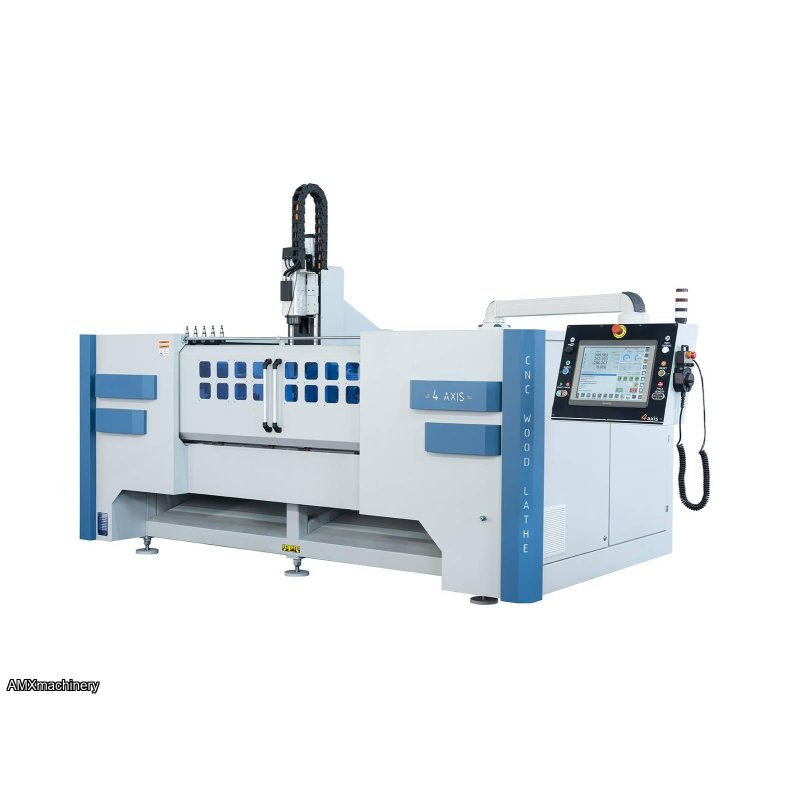

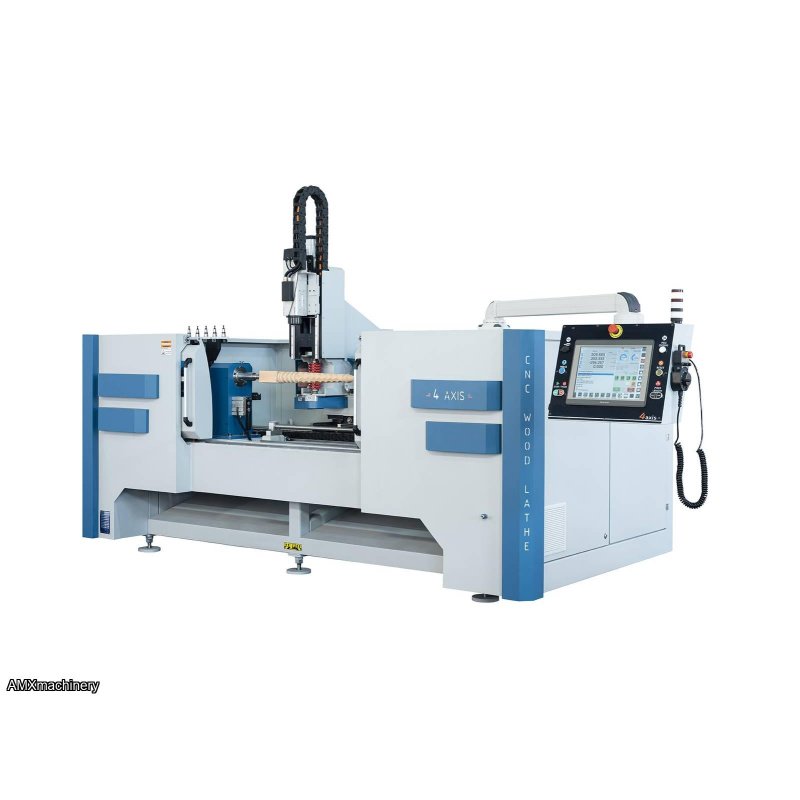

PARTE: 4NE-4AXISCLASSIC - TORNO PARA MADERA CNC - 4 EJES - 4 AXIS CLASSIC
AMXmachinery1
Descripción
PARTE: 4NE-4AXISCLASSIC - TORNO PARA MADERA CNC - 4 EJES - 4 AXIS CLASSIC
Control Unit: HSC RTEX
• Control Unit: TPA(İtalian)
• Remote Control: YES
• Servo Motors : Panasonic

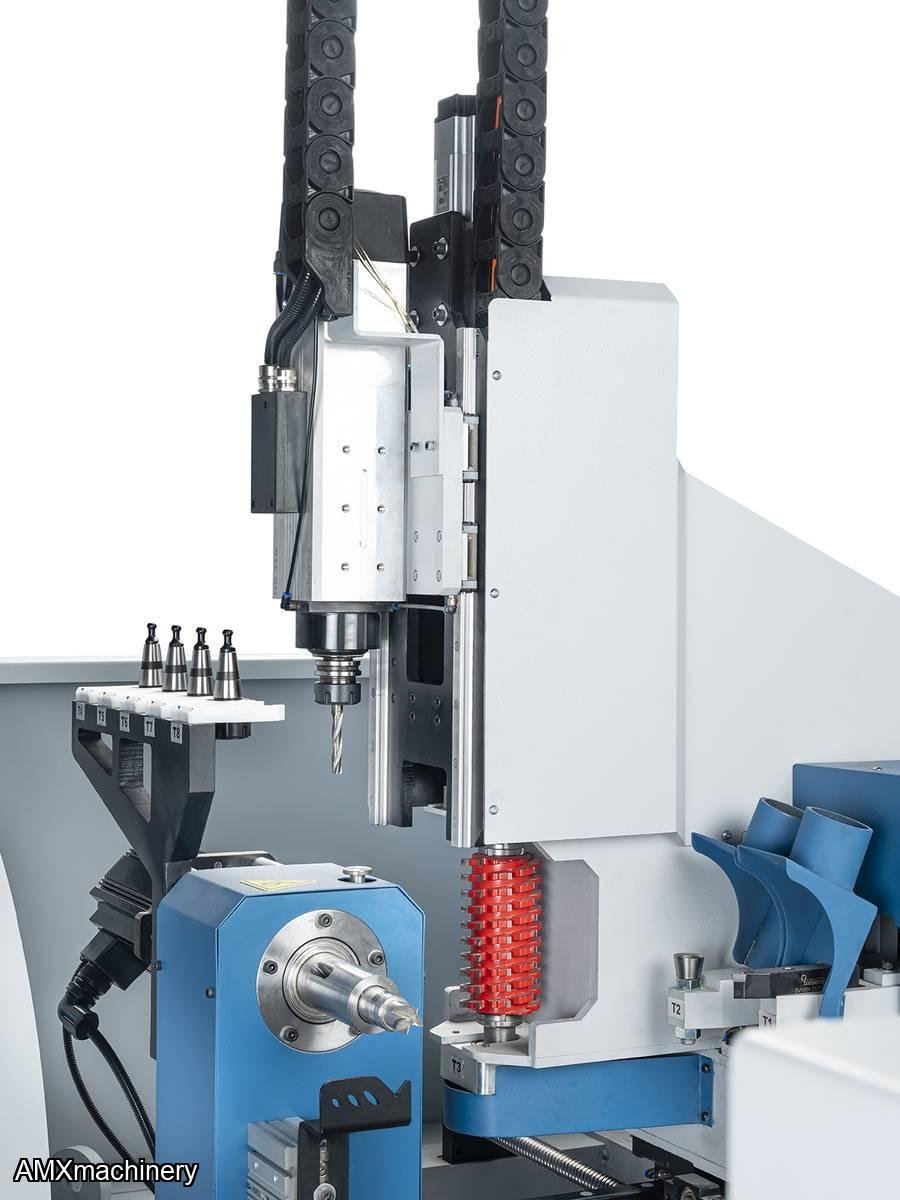

• Spindle Motor: HERTZ - 24000rpm with ceramic bearing
• Tool Holder ( 5 Pieces )
• Self Lubrication System: YES ( Automatic )
• Welding Tip Debarker Blade
• Triangle Blade for Gouger ( 10 Pieces )
• Rounded Blade for Gouger ( 2 Pieces )
• Pegasus Cad Cam 4 Axis Standard Program (Italian)
• Working Dimension: Max Diameter: 220mm Max Lenght:1000mm
• Total Power: 19 kw
• Weight: 2000 kg
• Machine Dimensions : Lenght:3870mm * Width:2450mm * Height: 2150mm
• Piece Lenght Adjustment: with button with out and screw and etc.
