Descripción

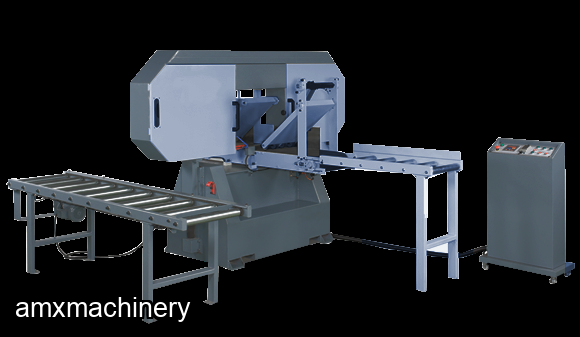

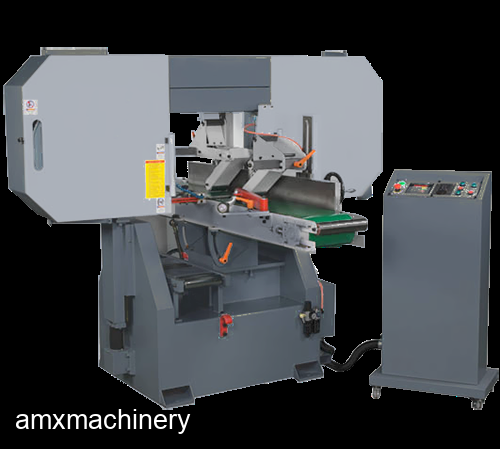

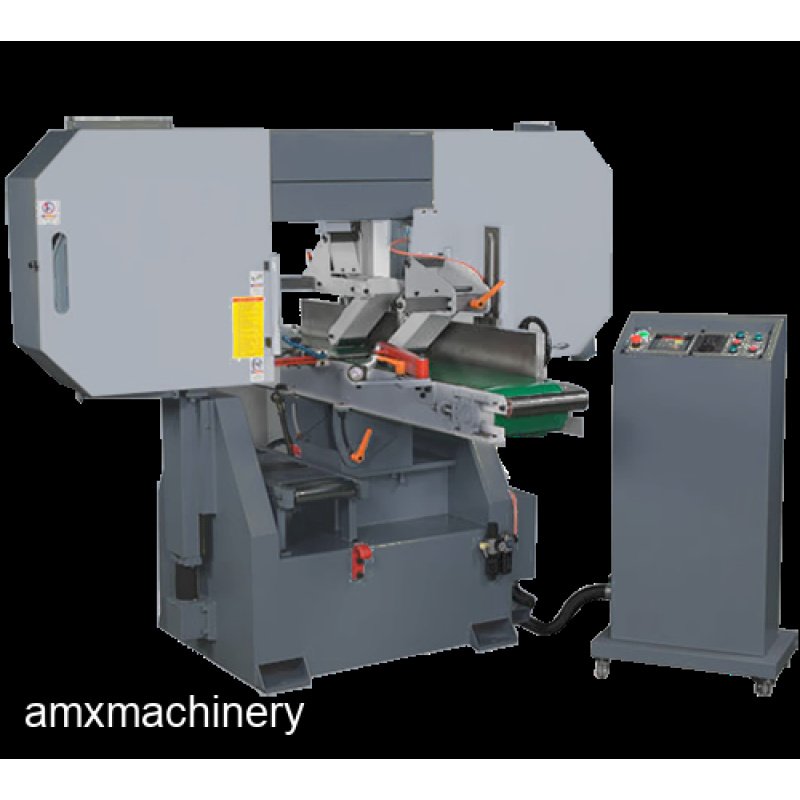

PARTE # 2TA-BS-1616HR - REASERRADORA HORIZONTAL – 1 SIERRA
NUEVA CON GARANTIA
| Specifications | BS-1616HR |
|---|---|
| Max. Cutting Capacity | 16½" x 16-1/8" (420 x 410 mm) |
| Distance Between Blade to Conveyor | ¼" x 10-5/8" (5 ~ 270 mm) |
| Minimum Cut Thickness | ¼" (5 mm) |
| Saw Wheel Diameter | 32" (800 mm) x 2 |
| Saw Blade Length | 231" ~ 231.1" (5860 ~ 5870 mm) |
| Saw Blade Width | 2" (50 mm) |
| Saw Blade Speed | 6150 FPM |
| Conveyor Belt Sizes (W x L) | 16" x 165½" (400 x 4200 mm) |
| Feed Speed (Variable) | 40" (1016 mm) |
| Return Conveyor Size | 100-3/8" x 24¾" x 32½" (2550 x 630 x 825 mm) |
| Conveyor Height From Floor | 40" (1016 mm) |
| Return Conveyor Motor / Inverter Motor | 1HP 3Ø / 2HP 3Ø |
| Saw Wheel Motor | 30 HP |
| Blade Lift motor | ½ HP |
| Dust Hood Outlet Diameter | 4" (100 mm) x 2 |
| Machine Dimension (L x W x H) | 128" x 130" x 79" (3250 x 3300 x 2000 mm) |
| Packing Dimensions (L x W x H) | 108" x 89" x 87" (2750 x 2250 x 2200 mm) |
| N. W. | 4321 LBS (1960 kg) |
| G. W. | 4763 LBS (2160 kg) |

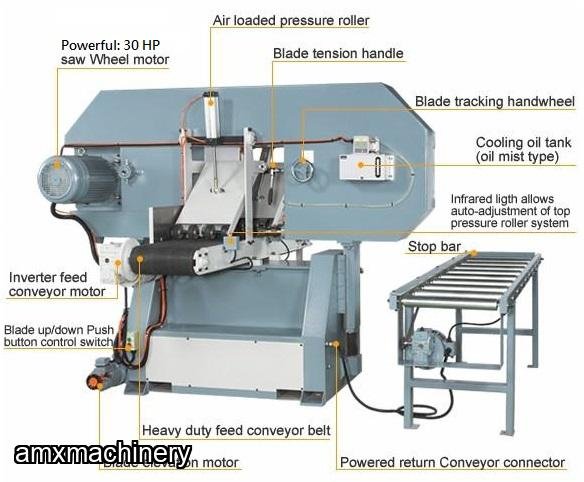

- Machine was built with ruggedly constructed throughout for maximum stability, high precision cutting and minimum trouble.
- It is equipped with a digital controller for convenient and accurate thickness setting.
- The feed conveyor has a tilting design allowing for maximum 30 degree bevel cuts.
- When the feed conveyor is tilted for bevel cutting a side support is applied for safe and stable cutting operations.
- Variable feed speed is controlled by a frequency inverter for best cutting requested.
- The infeed and outfeed pressure rollers are easily raised or lowered by a gear rack.
- The infeed and outfeed pressure rollers are spring loaded and easily adjusted for the horizontal or vertical direction to suit various workpiece thicknesses.
- Blade tension is adjusted by means of a hand wheel.
- A tension scale allows the operator to correctly adjusted the tension for different blade thickness.
- The cast iron saw blade wheel is dynamically balanced for smooth running.
- Blade guard is easily lifted up, supported by two nitrogen gas cylinders for convenient blade change.
- The roller type return conveyor equipped at left side of the machine provides easily repetitive cutting.
