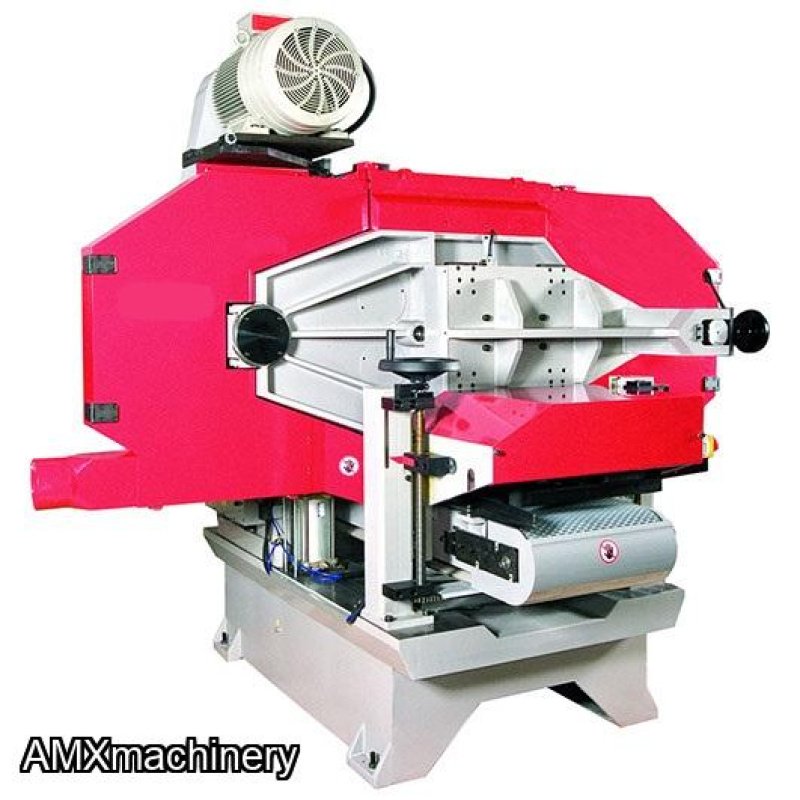

REASERRADORA DE PRECISION - CORTE DELGADO - REMAX

PARTE: 2OG-REMAX - REASERRADORA DE PRECISION - CORTE DELGADO - REMAX

NUEVA CON GARANTIA

ReMax

Unlike other resaws, the REMAX 500 is built from solid cast iron and incorporates a durable and effective guiding system. The thin-kerf saw blades are tensioned hydraulically enabling the machine to produce smooth, glueable surfaces with superior tolerances.

The REMAX 500’s modular construction gives your company room to grow. A single, stand alone unit can be purchased initially; additional units can then be added in line as production requirements demand.

FEATURES

• Infinitely Variable Blade Cutting Speed, Depending Upon Type of

Wood and Feed Speed

• Adjustable Saw Blade Tensioning

• Cast Iron Main Frame Offers Sturdy Construction for Minimal Machine

Vibration During Operation

• Air-Loaded Hold-Down Shoes Prevent Movement of Lumber During Cutting

• CNC Touch-Screen Control Panel for Easy Height Adjustment of One

or Multiple Heads

• Modular System Can Be Purchased With a Single Sawing Unit or Multiple

Sawing Units That are Controlled Via a Central Touchscreen

BENEFITS

• Heavy-Duty, Cast-Iron Construction – Built For Longevity and

Superior Tolerances

• Uses Thin-Kerf, High-Tension Blades to Minimize Saw Kerf Waste

• Produces a Smooth Surface

APPLICATIONS

• Flooring

• Windows

• Doors

• Furniture

• Musical Instruments

Machine Specifications

• Number of Heads - 1 or Multiple

• Machine Voltage - 3x 480V / 60Hz (Standard)

• Main Motor - 22kW (30HP)

• Feed Speed - Adjustable up to 50 m/min.

• Pulley Diameter - 1000mm

• Cutting Width - up to 300mm

• Maximum Thickness (Height) of Wood - 150mm

• Minimum Board Length - 800mm

• Minimum Slat Thickness - 2mm

• Saw Kerf (Depends on Tools & Application) - From 1.4mm

Optional Equipment

• Cutting width - maximum 500mm

Band Saw Blades

• Recommended body thickness - 0.9mm to 1.1mm

• Total width - 35 to 90mm

• Recommended length - 6170mm

• Minimum length - 6130mm

• Maximum length - 6230mm
