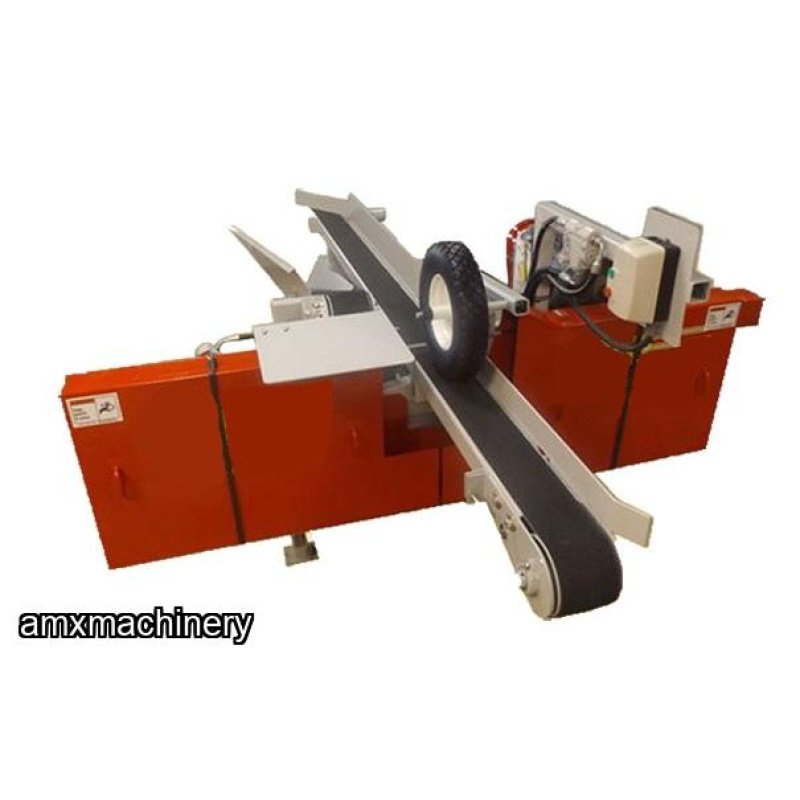

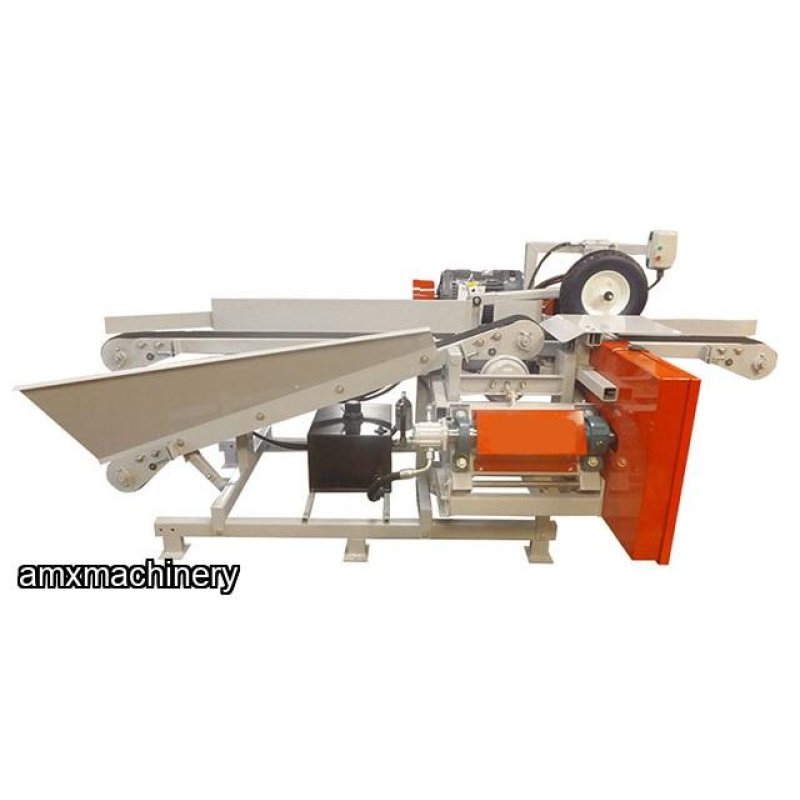

REASERRADORA HORIZONTAL – 1 BANDA – ANCHO 6” - 15 HP - REGRESADORA

PARTE: 2FA-RM6X6 - REASERRADORA HORIZONTAL – 1 BANDA – ANCHO 6” - 15 HP - REGRESADORA

NUEVA CON GARANTIA

Very similar to our 6 x 8

This automatic machine is equipped with a powered hold-down and an innovative powered belt return, which is self adjusting and offers operators the ability to fine-tune the return belt height and angle to fit your specific mix of products.

When setting the sawblade to the desired board thickness, the feed belt conveyor and the return belt are all simultaneously adjusted to maintain optimum height for peak performance

- ¼” – 6” Tall Cut Height, 8” Wide, Unlimited Length Capacity

- 4” Dust Connection (No dust collector required)

- Heavy Duty 2-7/16” Blade Arbors and Bearings

- 20” Band Wheels

- Air Tensioned Blade Mechanism

- Powered Belt Return w/ Adjustable Height Sheer Plate

- Self- contained Hydraulic System: Adjustable Infeed Speed (0-150 ft/ min)

- Easy Crank for Adjustable Blade Position

- 3” Right Side Fences

- Feed Belt Height: 34”

-Dimensions: 70” L, 93” W, 47” H

- Approx. Weight: 1840 lbs

GUIDE KIT

- 15’1” Long X 1” Wide Bandsaw Blade

- 3/4" Composite Guide Blocks

*** 1.25" Blade Available

*** Roller Guides Available

PWR_HD_6X6

- Top Mounted Powered Tire Hold Down Wheel

RM6X6 HYD_KIT

6 x 6 RESAW HYD COMPONENTS

15HP_480/3/60

- 15 HP Motor (230/480/3/60 TEFC)

- Completely Prewired for 480V

- Motor Starters with Start/ Stop Buttons and Circuit Overload Protection

- Mounted at Operators Station

- 18.1 FLA

STARTUP KIT 1

- 25 Blades

- Extra Set of Guides

- Grease gun with tube of grease

- 9/16 Wrench

- 3/4 Wrench

- 1-1/8 Wrench

- Toolbox

POPULAR OPTIONS:

- Multiple Support Heads

- Air Tension Hold Over Plate (For Ripping Material)

- Pre-wired for 230, 480, 575V 3 Phase

- Pre-wired 220V 10HP Motor Single Phase

- Gas Powered Honda GX690 Power Plant

- 6” Height Right Side Fences

- Left Fences for Ripping

*** Other options available
