Identificador: 1263
Abierta
Descripción

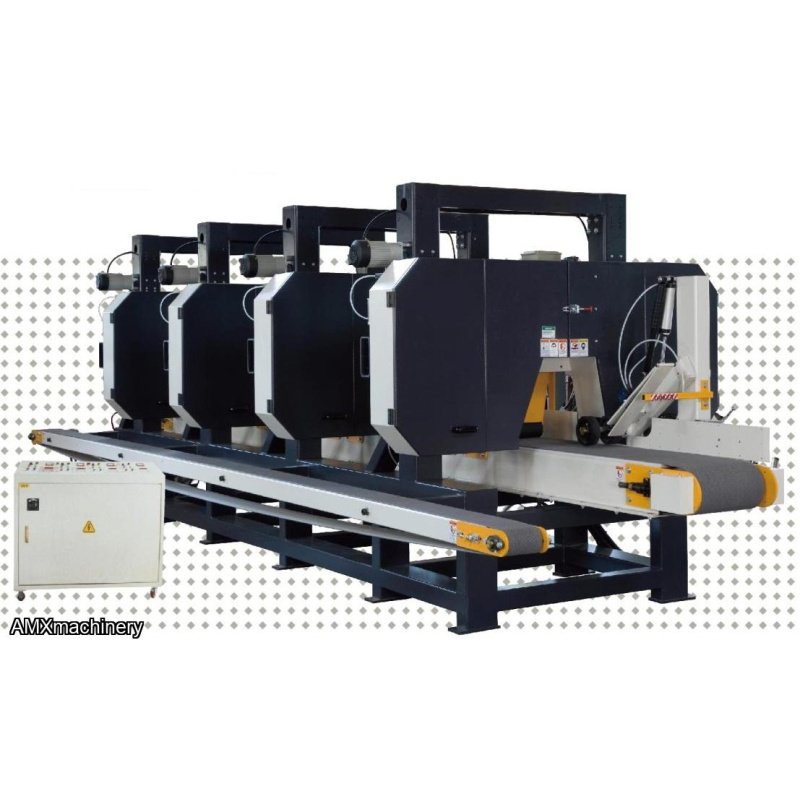

PARTE: 3HP-HP-400-4 - REASERRADORA HORIZONTAL – 4 SIERRA BANDAS – CON REGRESADOR
Nueva con garantía
Para mas informacion, solicite una cotizacion detallada,
1.With Digital Readout
2.Max. Workpiece Size: 400mm(W) x 250mm(H)
3.Conveyor Belt Size: 385mm(W) x 14840mm(L)
4.Saw Wheel Dimension: Φ28" x 2"(Thickness)
5.Saw Blade Size: 208"(L) x 2"(W)
6.Dust Hood Diameter: 4" x 8
7.In-feed Speed: 4-20M/min
8.Cutting Size: 4-250mm(T)
9.Saw Blade Tensioning by Hydraulic Compensation System
10.Main Motor: 30HP x4
11.Hydraulic Motor: 3HP
12.Elevation Motor: 1/4HP 6P x4
13.Machine Dimensions/Weight: 5700 x 2130 x 2000mm /6800kgs
Packing Dimensions/Weight: 5760 x 2230 x 2160mm /7000kgs
14.Mist Coolant System
15.Air Cylinder Hold Down Pressure Roller
16.Min. Length of Working Piece: 600mm
17.With Inverter Motor: 30HP x4
18.Rubber Pressure Roller
19.With Return Conveyor
20.Saw kerf: 1.35mm
21._______Volt, _______Hertz
Accuracy of cut: - 0.1 mm
Production parameters: continuous production
Oak Laminated board
Humidity 50-80%
Length 400 - 2300
Width 100-300
Thickness up to 4-7mm
In feed speed 7-10 M/min.
8 hrs. / per day
22 days/ per month
Production 225-300 m^3/month
