PARTE: 2CK-303S

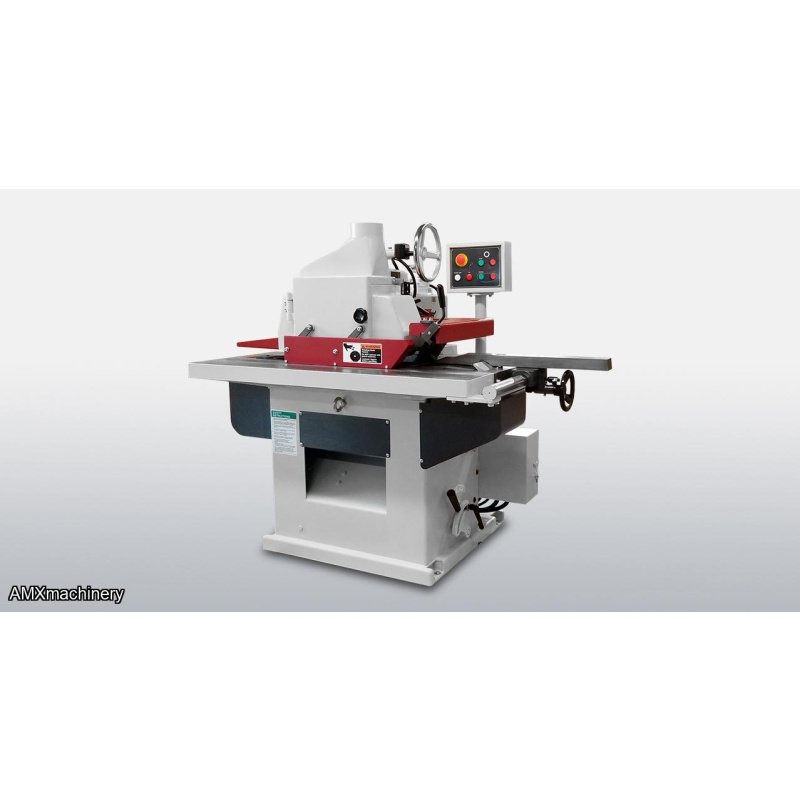

Is a straight line ripsaw that is the ideal ripping upgrade for those looking to prepare material for a moulder or for producing face frame material. Automatically feeds the material for consistent rip results. The cast iron feed chain runs on double V guide rails and holds the material firmly for precision straight cutting. A powerful 10 HP motor with maximum 12” blade provides a cutting depth up to 3.35”. A micro adjustable infeed fence allows for quick setups to ensure precise rip widths with fast adjustments.
- Rigid machine body consists of a thick welded steel frame with an integral table which is fitted with a sturdy cast column.
- Precision built saw arbor constructed to ensure precision cutting without vibration.
- Cast iron upper assembly & cast iron table with superior vibration damping for optimum results

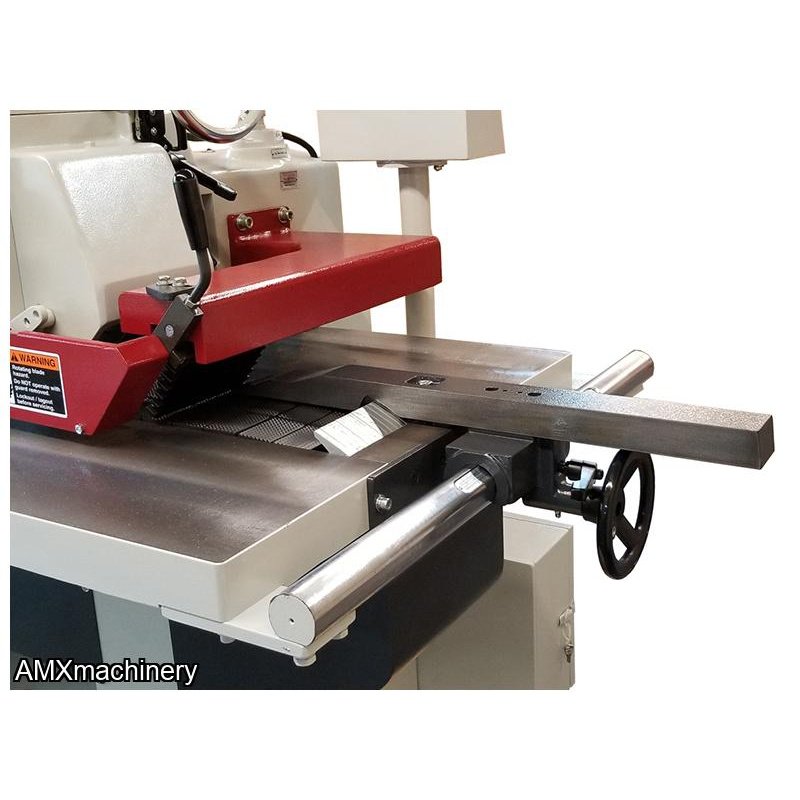

- Micro adjustable fence by rack and pinion for fast setups with precise results
- Cast iron chain and track assembly is precision machined and hardened for maximum wear resistance with superior cut quality
KEY ADVANTAGES
- Two rows of anti-kickback fingers for safe operation
- Swing down rear table prevents short workpieces and thin edgings from jamming in the machine
- Electronic chain lubricator provides consistent lubrication to the chain track for optimum wear resistance
- Powerful 10HP motor
- Three feed speeds can be externally adjusted for operator convenience
- Mechanical digital readout for setting the workpiece thickness
- 12” blade is included

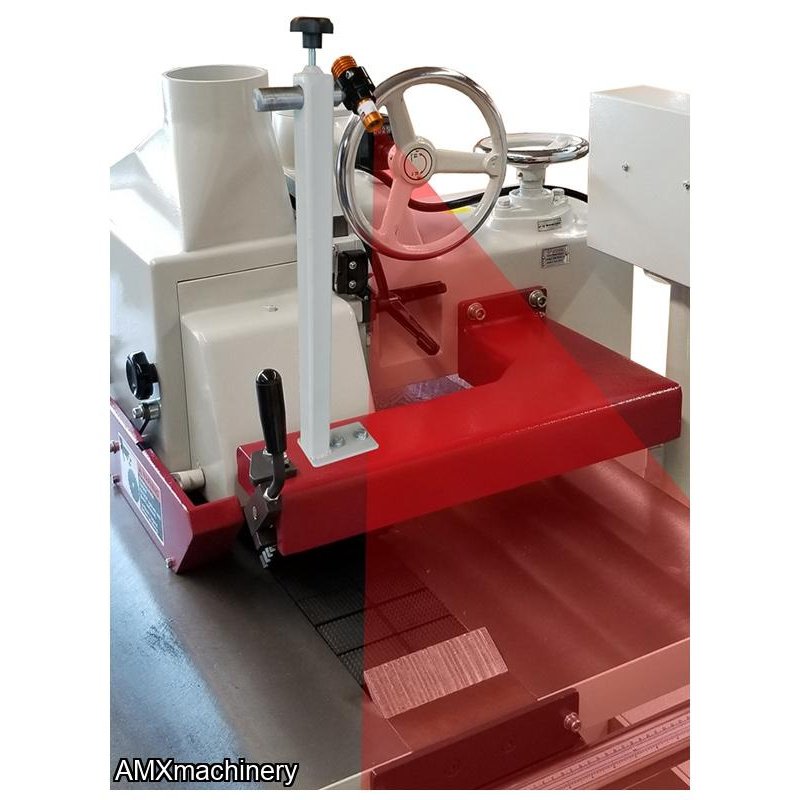

- Optional laser light for projecting the cutting line
|
Saw arbor diameter |
1″ |
|
Saw blade diameter |
8 – 12″ |
|
Saw arbor speed |
4500 RPM |
|
Feed speeds |
3 (50, 65, 85 FPM) |
|
Maximum workpiece thickness |
3.35″ |
|
Minimum workpiece length |
8″ |
|
Pressure rollers |
4 rows (6 rollers) |
|
Distance between saw and column |
13 ¾” |
|
Arbor motor |
10 HP |
|
Feed motor |
1 HP |
|
Table size |
30″ x 50″ |
|
Table height |
31-7/8″ |
|
Net weight |
1870 Lbs |
|
Machine dimensions |
61″ x 38″ x 53″ |
