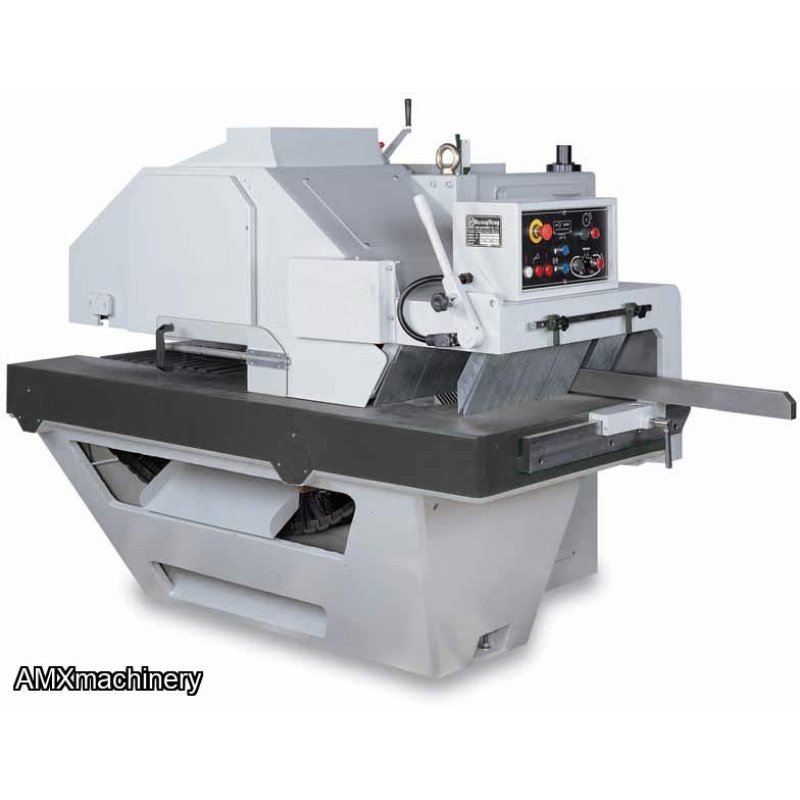

PARTE: 2CK-MRS155
FEATURES
- Extra Robust 100 HP motor
- Great Cutting Thickness of 155mm (6.1″)
- Continuous duty 100 HP arbor motor allows deep cutting speeds of thick lumber
- MRS-155 has a massive cast iron base, composing the majority of total machine weight of 2700kg. This design provides incredible absorption characteristics under deep cutting, especially while performing thick lumber ripping with a multi-blade set up
- Precision chain and rails (dip chain) system facilitates accurate cutting operations
- Link Chain Feed made of special cast iron, high-grade steel connecting pins are heat-treated and precision ground
- 3 anti-kickback fingers. 2 top and 1 bottom row
- Digitally controlled lubricator for feed chain ensures a permanent oil film between the chain and the guide rails. If there is insufficient oil in the tank, the warning lamp lights up and the feed chain stops running automatically
- Electrical Amperage Display protects overload of the saw motor by slowing the link chain down automatically
|
Max. cutting thickness |
155mm |
|
Max. cutting width |
350mm |
|
Distance of fixed inside blade to column |
380mm |
|
Min. working length |
700mm |
|
Max. sawblade diameter |
450mm (18″) |
|
Min. sawblade diameter |
355mm (14″) |
|
Sawblade bore |
70mm |
|
Saw arbor diameter |
55mm |
|
Saw
arbor speed |
2500 rpm |
|
Saw
arbor speed |
3000 rpm |
|
Saw arbor motor |
75 HP |
|
Feed motor |
3 HP |
|
Variable feed speed |
2.5-24 m/min |
|
Powered raise and lower of roller group |
1 HP |
|
Dust hood diameter |
200mm |
|
Table height (pass line) |
745mm |
|
Table area (L x W) |
1840 x 790mm |
|
Overal
dimensions |
23040x1720x1600mm |
|
Net weight |
2700 kgs |
|
Gross weight |
3000 kgs |
