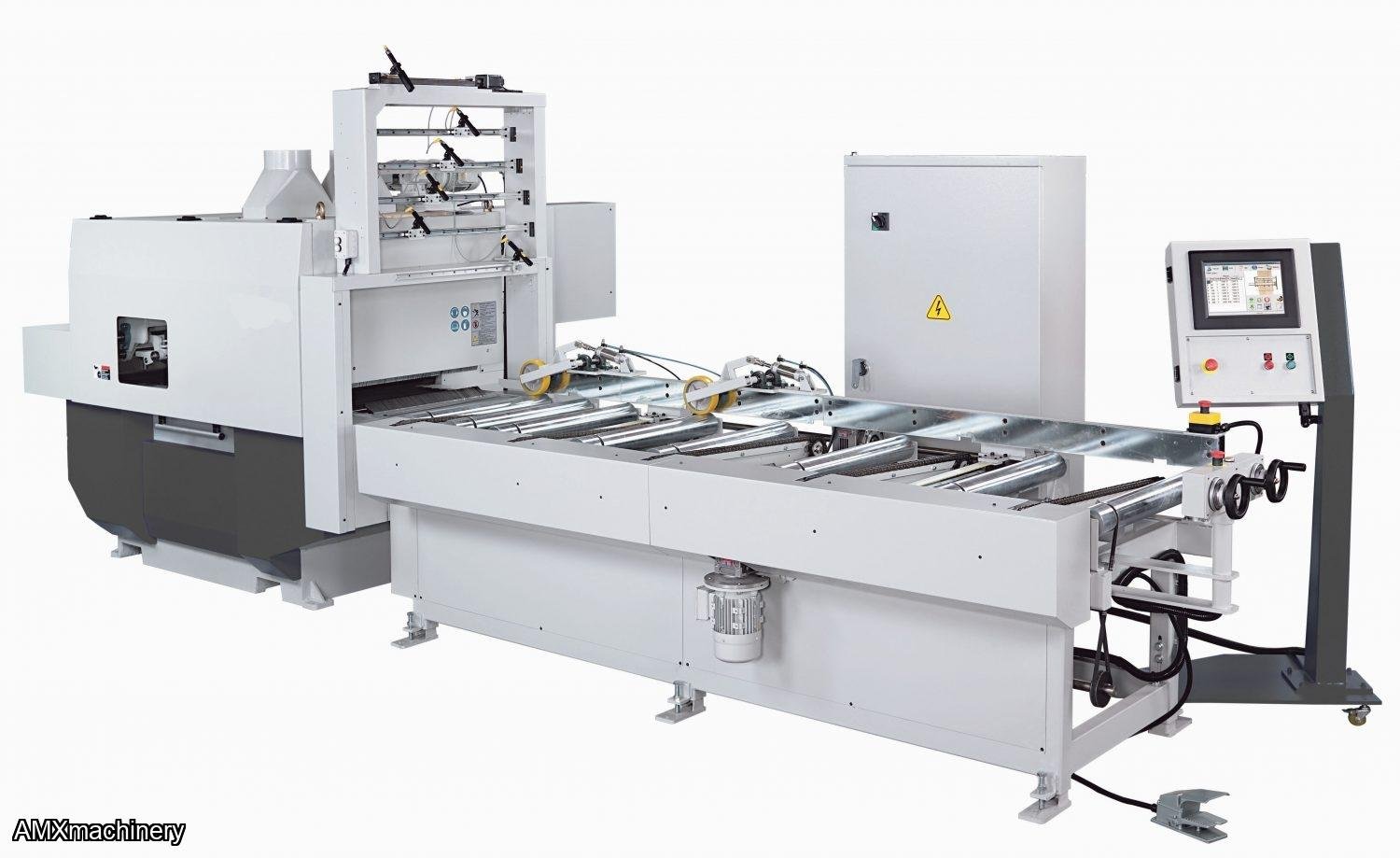

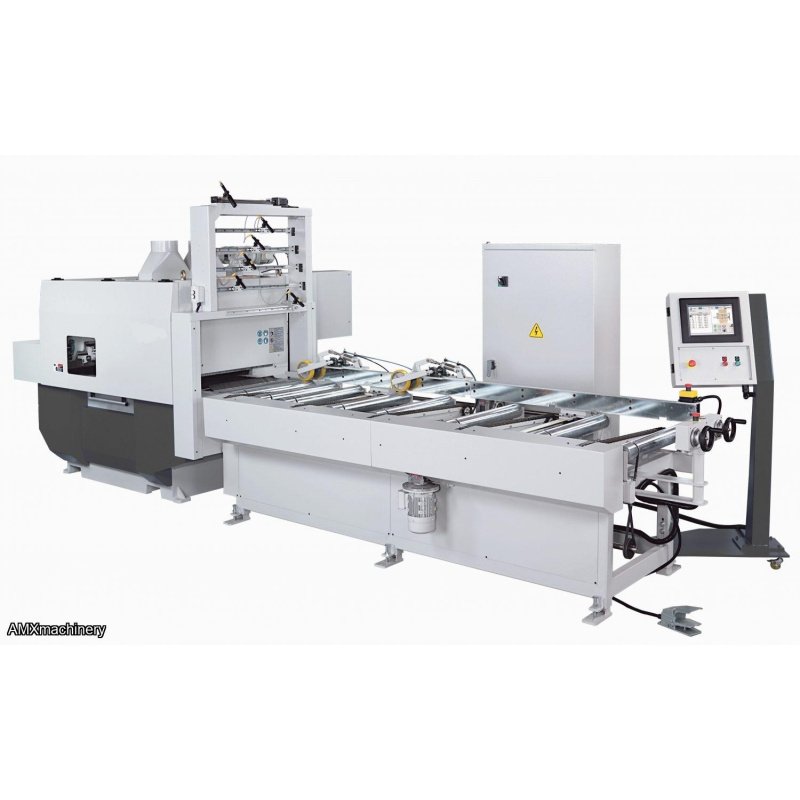

PARTE: 2CK-MRS610M
- The Main Frame is Cast Iron
- HD Precision Straight Line Feeding caterpillar Chain type
- Fully Programmable Position sets or Infinitely variable foot pedal position set
- User friendly Touch Screen control
- Quick Saw Blade positioning by Servo Motor
- Blade positioning by Electronic Joystick Control (Efficient & Quick) or the touch screen controls
- Equipped to shift 4 saws independently or 2 saw per shifter (optional as a cluster) on the with a single or bank of saws on the inside or the saw can be set up to gang rip if desired
- Short Stock Cutting device – included
- Pneumatic Pressure to the Holdown Feed Rollers
- Specially Designed and Patent Pending Precision Glide Lock – Nickel chrome steel Saw Arbor & 4 Shifting Saw Bushings are equipped with specially designed rollers
- 3 rows of anti-kickback fingers (2 Top & 1 Bottom)
- Variable feeding speeds of 16′ – 200′ min. (5-60m/min)
- Laser Light system including 6-15mw Lasers. This laser light package provides the optimum in both defecting and maximum yield (Included)
- Powered Top & Bottom Outfeed Rollers
- Digitally controlled Centralized Lubrication System
- 14″ dia. Precision Carbide Saw Blades
- Automatic Star-Delta Starter (low amperage soft start)
- All electrical components are CSA, UL, CE and NEMA approved
- Electrics to 230/460 or 575 volts 3 phase 60 cycles to UL/CSA Standards or 380 or 415/3/50
|
Max. Cutting Width |
24″(610mm) |
|
Max.
Cutting Thickness of moveable saw |
3.3″(3.9″) 85(100)mm |
|
Max.
Cutting Thickness of multiple rip saw |
3.7″(4.3″) 95(110)mm |
|
Number of moveable saws |
3 – 6 |
|
Max. material width of pass-through |
35.4″(900mm) |
|
Max. sawblade diameter |
14″(355mm) |
|
Saw arbor diameter |
2.8″(70mm) |
|
Saw arbor motor |
50
HP |
|
Variable feed speed |
25 – 200 FPM (8-60M/min) |
