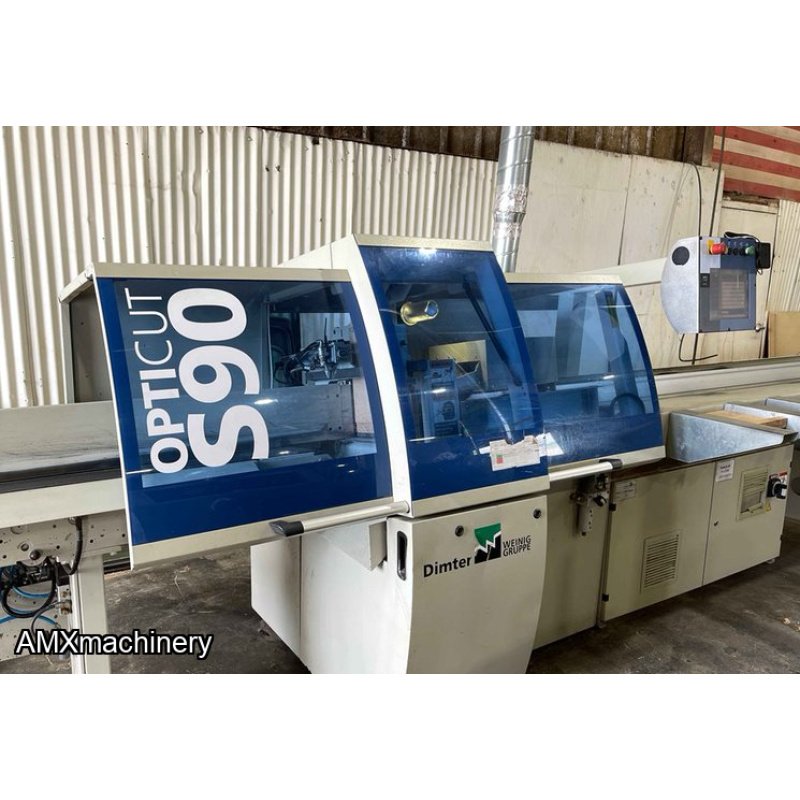

SIERRA OPTIMIZADORA – DIMTER WEINIG S90

PARTE: 12392 – SIERRA OPTIMIZADORA – DIMTER WEINIG S90

USADA – MUY BUENAS CONDICIONES

Incluye 2 empujadores para Clasificar

Year of Manufacture: 2005

Condition: Good

Electric: 480 Voltage, 60 Cycle, 3 Phase

 GREAT PUSHFEED SAW WITH ACCURATE CUTTING, CRAYON DEFECTING OF INBOUND LUMBER UP TO 14'0" LENGTHS.

Working dimensions: Width 2" to 8"; thickness 3/8" to 2" and length 3' to 14-3/4" (4.5M).

Motor: 10 HP saw motor at 4,800 RPM. with 16" saw blade.

Feed: Variable speed PUSH up to 393 FPM with return up to 750 FPM.

Pusher: Automatic pusher arm controlled by servo motor that travels the length of the board measuring: length, grade zones, and defects. Positioning accuracy to +/- 1 mm. Swivelling positioning pusher with photo eye for automatic length detection.

Software: OPTICOM DIRECT control system with 12" color "touch" screen. Controls for: maximum yield, maximum value, quantity of pieces, diagnostics. (100) board groups with (8) grades. Auto width measuring. Ethernet connection.

Sort line: Driven by a 2 hp motor with outfeed belt 10" x 32' with (2) mechanical kickers for sorting as inputted from the OPTICOM DIRECT.

Outfeed belt: 33' foot out feed with (2) kickers
