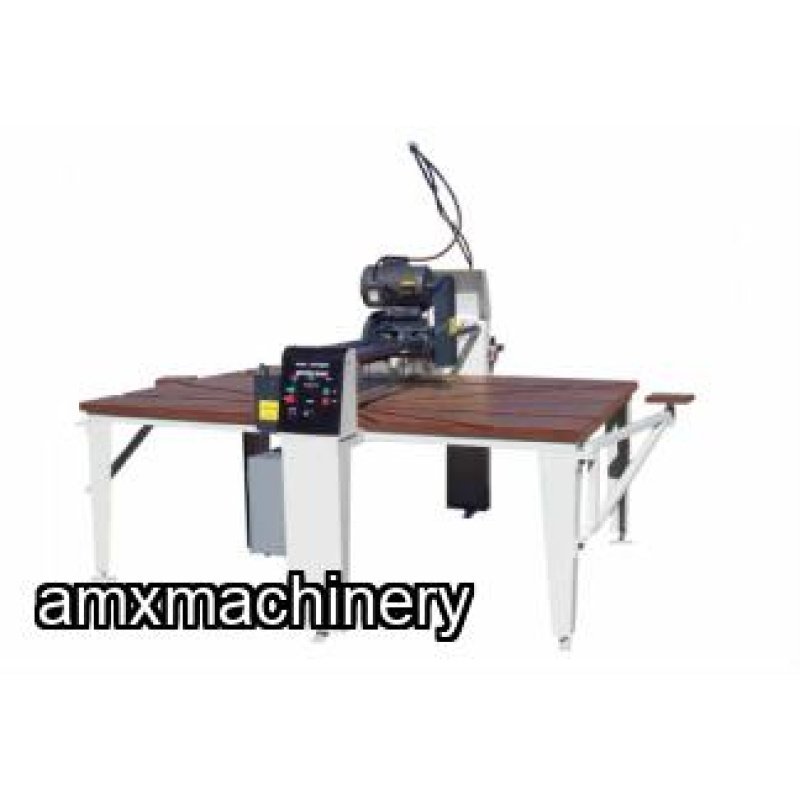

SIERRA RADIAL AUTOMATICA

PARTE: 2EV-0710 – SIERRA RADIAL - AUTO - EVANS 0710

Power feed with variable speed control

35 1/2 " working height. Adjustable leveling feet.

NEW: Additional guarding on both sides of the blade and around the controls

Preset 90°, 45°, and 22-1/2° Cut Guides

16” Saw Blade with a 1” Arbor

Pneumatic Saw Guard

Swing Out Supports for Longer

Lengths

4” Dust Port

Variable Speed: 0-50 FPM

Max Cut Stroke: 50”

Work Surface: 60” X 96”

Drive Motor: 3 HP

Electrical: 230 V, 3 PH, 60 Hz

Air Requirement: 80 PSI

Crated weight 1540 LBS. Shipping dimensions 104" long X 90" wide X 68" high

Options:

Pneumatic hold down device with 4 cylinders

220 Volt 1 Phase

380 Volt 3 Phase

440 Volt 3 Phase

Extra saw blade 08038

5 HP 220 Volt 3 Phase

The 0710 guarantees precision cut every time. The custom designed top ensures accurate 22 1/2”, 45°, and 90° cuts without gauges, guides, or fences. The electric power feed mechanism has positive forward and reverse actions. Every 0710  comes equipped with a fitted saw guard specially designed to provide maximum operator safety without sacrificing accuracy, workability, or production flow. The 0710 has proven itself to be both reliable and dependable within the countertop fabricators industry. (Manual Feed 0700 also available)
