Identificador: 1967
Abierta
Descripción

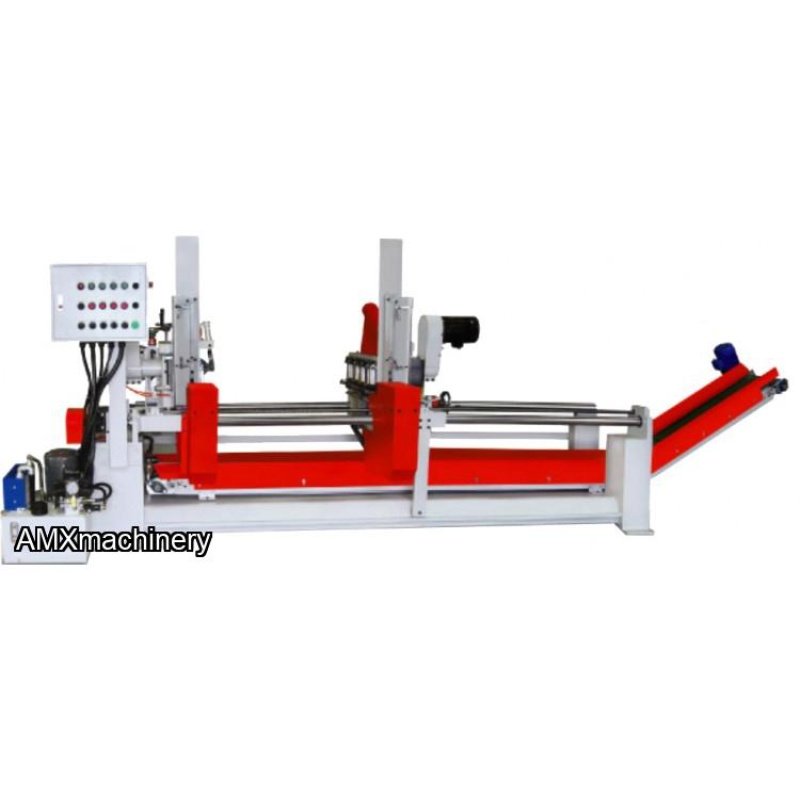

PARTE: 2CK-CK-2200 - SIERRA TRIMMER - 60", 98" & 120" LARGO
- Through feed double cut off saw with loader for linking with 4 sided moulders leads to a reduction in man power requirements
- Easy loading using hopper ensures maximum throughput capacity reached
- System will cut boards to desired length, and automatically feed the cut boards continuously through the moulder butt to butt
- System comes complete with automatic waste conveyor for easy removal of offcuts to disposal area.
- Also available in different length capacities to 1500 mm (60”), 2500 mm (98”), and 3050 mm (120”)
|
Range of workpiece length |
10″ – 60”, 98”, or 120” |
250 mm – 1500 mm, 2500 mm, or 3050 mm |
|
Range of workpiece width |
6″ (8” optional) |
150 mm (200 mm optional) |
|
Range of workpiece thickness |
0.8″ – 2.7″ |
20-70 mm |
|
Spindle motor |
3HP x 2 |
3HP x 2 |
|
Spindle speed |
3000 rpm / min |
3000 rpm / min |
|
Spindle diameter |
Ø 1″ |
Ø 25.4mm |
|
Saw blade dia. |
Ø 14″ |
Ø 355.6 mm |
|
Table height |
35″ |
900 mm |
|
Hydraulic pump motor |
3HP x 2 |
3HP x 2 |
|
Waste material conveyor motor |
3000 rpm / min |
3000 rpm / min |
|
Maximum waste cut off length |
3” |
76.2 mm |
