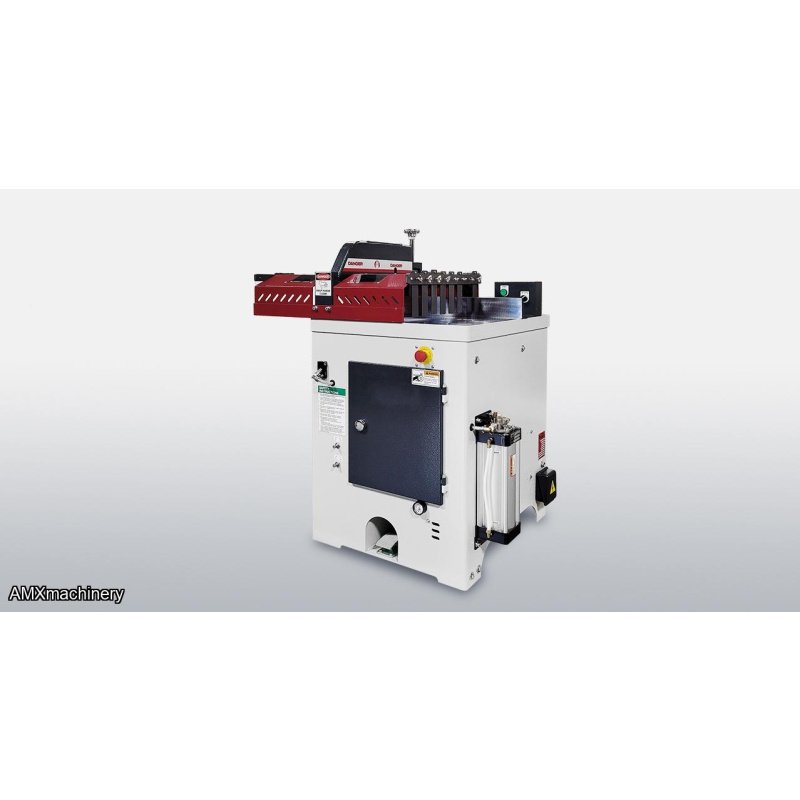

PARTE: 2CK-PCS18M
Is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 10HP motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, security bolt on the saw access door, blade misting system, and solid chrome table. Available in either left hand or right hand operation depending on your ideal production flow.
- Large cutting capacity of 2”x12” up to 4”x10”
- Adjustable cutting stroke to ensure optimum cutting speed and cut quality
- Reliable performance day in and day out
- Added safety features
KEY FEATURES
- Available in Right Hand & Left Hand configuration
- Cut off capacity (thickness x width): 2″ x 12″, 3″ x 11″, 4″ x 10″
- Powerful 10HP main motor

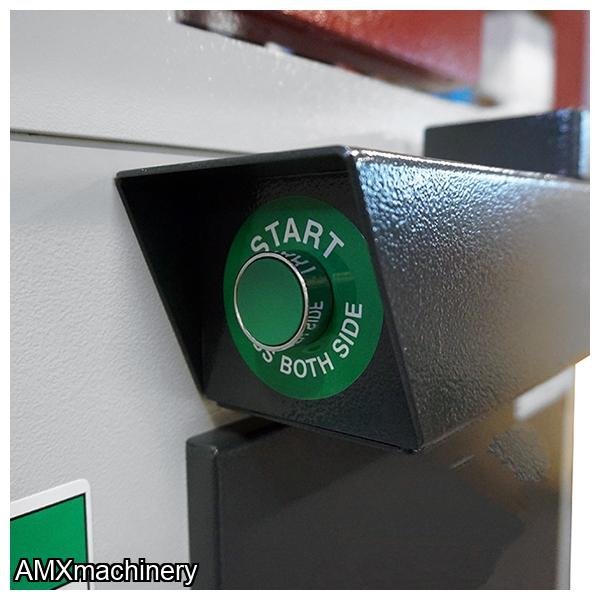

- Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push bottom control)
- Fast cutting cycle with up to 45 strokes per minute
- Non-ferrous cutting blade
- Air over oil for precise speed control
- Blade misting system that applies a thin film of lubricant for preventing friction build up, and maximizes saw productivity and blade life
- Corrosion resistant solid chrome table
- Zero cut line with T-clamp that increases precision cuts and reduces possibility of tear out
- Material clamp is easily adjusted for workpiece thickness variation.
- CSA/UL magnetic switch
|
Cutting capacity (thickness x width) |
2″ x 12″, 3″ x 11″, 4″ x 10″ |
|
Cycle speed |
45 strokes/min |
|
Cycle operation |
Air |
|
Saw blade size (optional) |
18″ |
|
Saw arbor diameter |
1″ |
|
Saw blade speed |
3600 RPM |
|
Dust exhaust diameter |
Ø4″ |
|
Air consumption |
9.8 CFM |
|
Motor |
10 HP |
|
Table size |
26” x 27 ½” |
|
Net weight |
770 lbs. |
|
Gross weight |
902 lbs. |
|
Machine dimensions (LxWxH) |
42” x 27” x 48” |
