Identificador: 1665
Abierta
Descripción

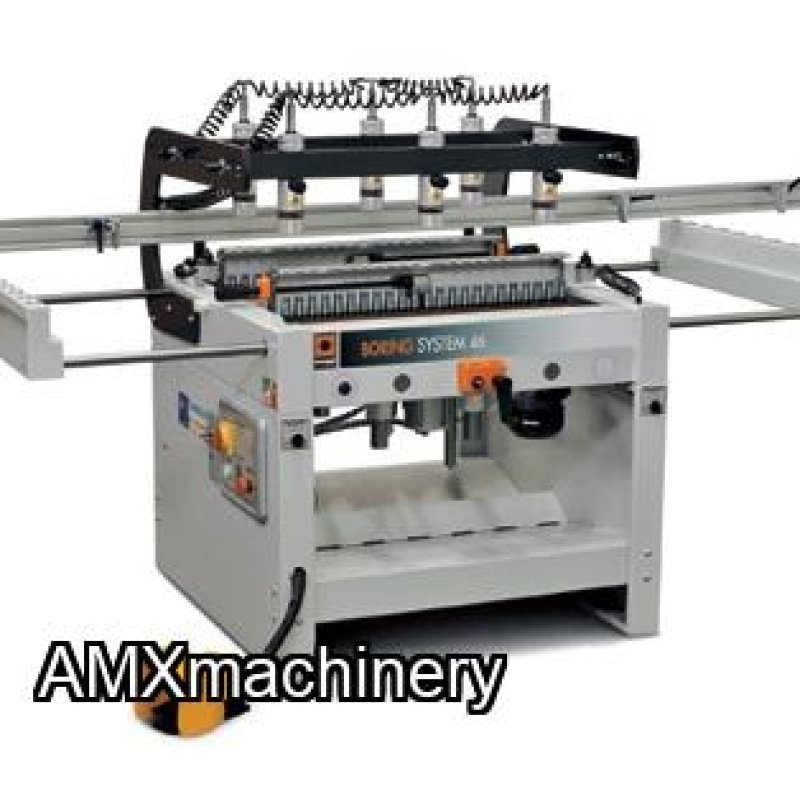

PARTE: 2JG-MAG-SYSTEM46 - TALADRO MULTIPLE - 46 DOBLE FILA
Provides (2) 23-spindle heads on 32 mm centers; distance between first and last spindle center of each head is 27-23/32" (704 mm).
- Front end adjustment for quick and easy set-up.
- (2) 1.5 HP 2,800 RPM motors; max.
- Boring depth is 2-1/16" (55 mm).
- Side depth counter system; extractable 400 mm support rollers for long panels.
- Maximum distance between heads is 25-19/32" (650 mm) and minimum width is 5-1/8" (130 mm).
- Complete with: 46 quick change chucks, 10' extension fence with (4) flip-stops and (2) pneumatic reference pins; (6) patented safety clamps
- This machine can be used for single or double row line drilling.
- Uses 24 LH (red) and 22 RH (black) boring bits.
- Working air pressure 94 psi.
- Voltage: 230V 3-Phase
- Net weight: 820 lbs.; Crated weight: 940 lbs.
- Call for LTL Freight pricing outside the Continental United States at 919-776-8341.
