Descripción

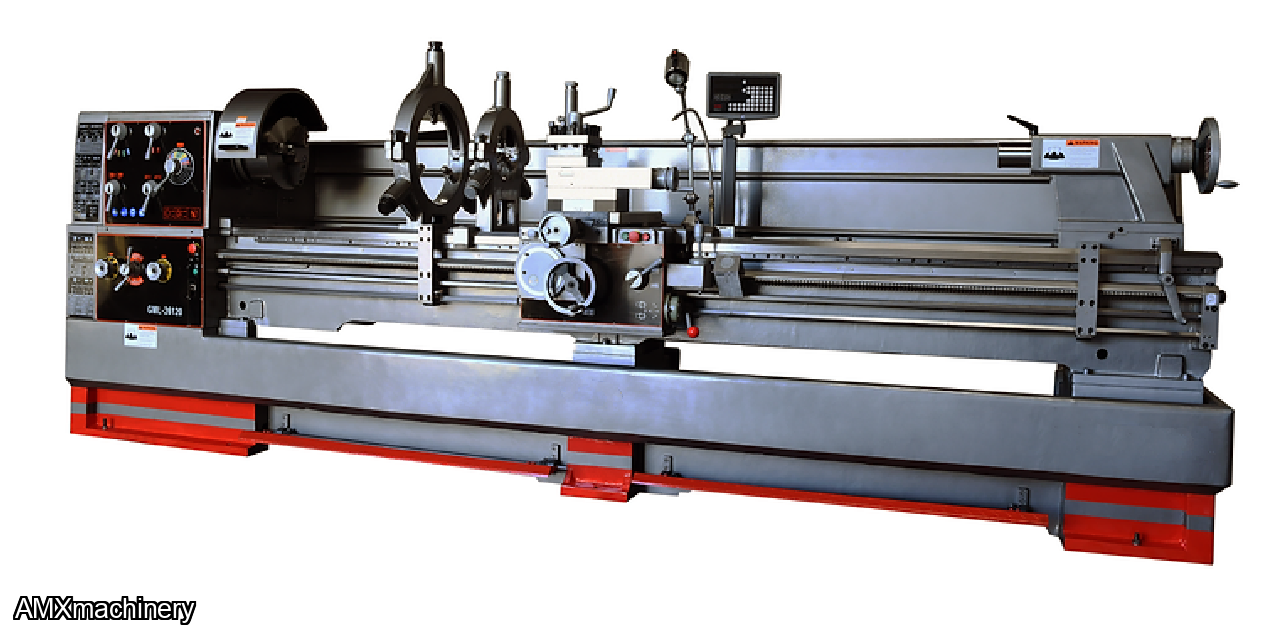

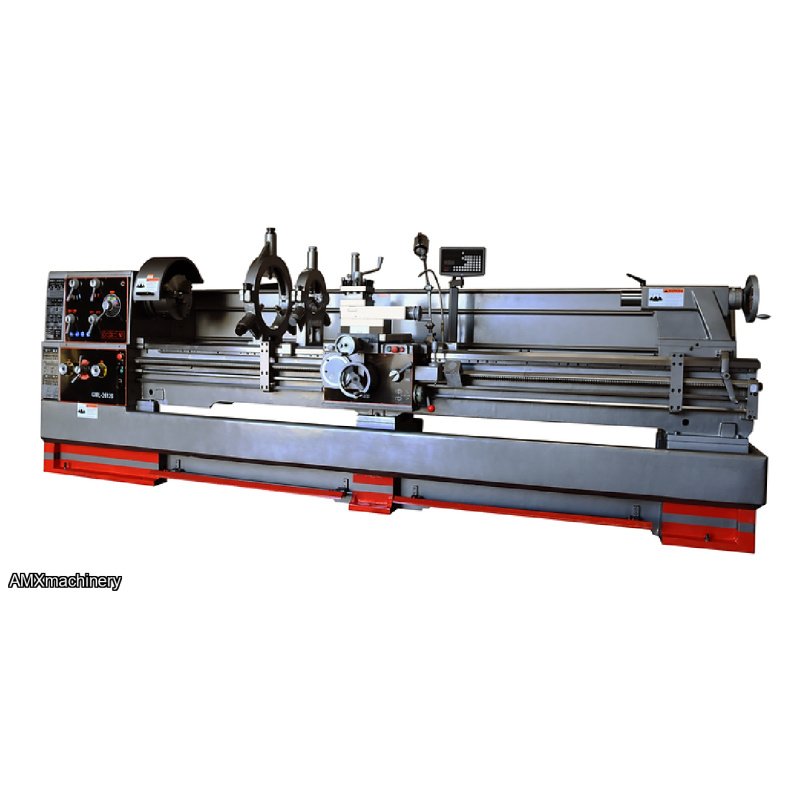

TORNO 32'' X 160'' 15 HP PARTE: 2GM-GML-32160
Heavy Duty Precision Gap Bed Lathe 32” x 160” 4-1/8” bore, 15HP Motor.
- ISO 9001 certified
- Large spindle bore 4-1/8”
- 4-way rapid traverse on Longitudinal and cross ways
- All dual inch/metric dials.
- Solid cast iron machine base
- Heavy Duty main motor 15 HP
- 12 spindle speeds from 25-1,600 rpm
- 54 kinds of inch threads and metric threads
- Threading and feeding rate change by levers
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- Tools box with leveling pads
Max. swing over bed | 32” |
Max. length of workpiece | 160” |
Max. swing over cross slide | 26-7/16” |
Max. Swing in gap | 46-1/2” |
Width of Bed | 16” |
Effective length in gap to spindle | 10” |
Effective length in gap to chuck jaws | 7” |
Spindle bore | 4-1/8” , D1-8 |
Taper of spindle center | MT#5 with1:20 reducing sleeve |
Spindle speeds | 25-1,600 rpm / 12 steps |
Longitudinal feeds | 0.0016-0.055 IPR, 60 kinds |
Cross feeds | 0.0008-0.027 IPR, 60 kinds |
Inch threads | 80-7/16”TPI, 54kinds |
Metric threads | 0.45-120 mm , 54 kinds |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery1
PARTE: 2TA-GS-24RO2 - ENGOMADORA 2 LADOS – CAPACIDAD ANCHO 24”
PARTE: 2TA-GS-24RO2 - ENGOMADORA 2 LADOS – CAPACIDAD ANCHO 24”
Nueva con garantíaRoller coaster type are efficiently & effectively apply glues with a minimum of setup and easily maintained.Set of three rolls (one doctor roller) for top-only or four rollers (two doctor roller) for top and bottom glue application.We designed our glue spreaders with high quality grooved rubber glue rollers with hardened rubber doctor rolls for durability usage.Stainless drip pan catches the over spread glue...
-500x500.png)
AMXmachinery1
CORTADORA DE METAL HIDRAULICA
CORTADORA DE METAL HIDRAULICA PARTE: 2GM-HS-0610MD6 foot hydraulic metal shears can cut up to 10 gauge by 72” wide mild steel sheet metal. A hardened shearing blade is installed and pre-gapped ready for buyers to operate upon arrival. Our light duty hydraulic shears are dependable and deliver sharp razor cuts with ease.Taiwan machinesISO 9001 certifiedHD all steel construction for maximum rigidityGerman logic quiet Rexroth hydraulic systemAdjustable stroke ...
AMXmachinery1
CANTEADORA - 16 PULGADAS
PARTE: 2CK-J168LHIs a truly industrial long bed jointer capable of producing perfectly jointed material used in the production of wood furniture, doors, face frames. and more. The heavy-duty cast iron infeed & outfeed table and back fence provide superior vibration damping which results in an optimum jointed finish. The spiral insert cutterhead with its two-sided solid carbide inserts provides optimum stock removal with a superior finish. The insert knife cutterhead in its spiral pattern r...
AMXmachinery1

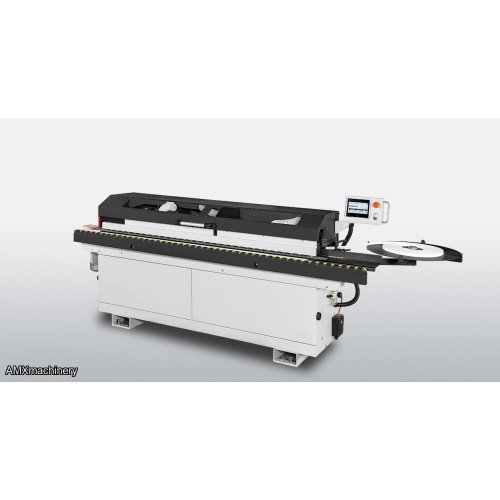

ENCHAPADORA DE CANTOS
