Identificador: 2628
Abierta
Descripción

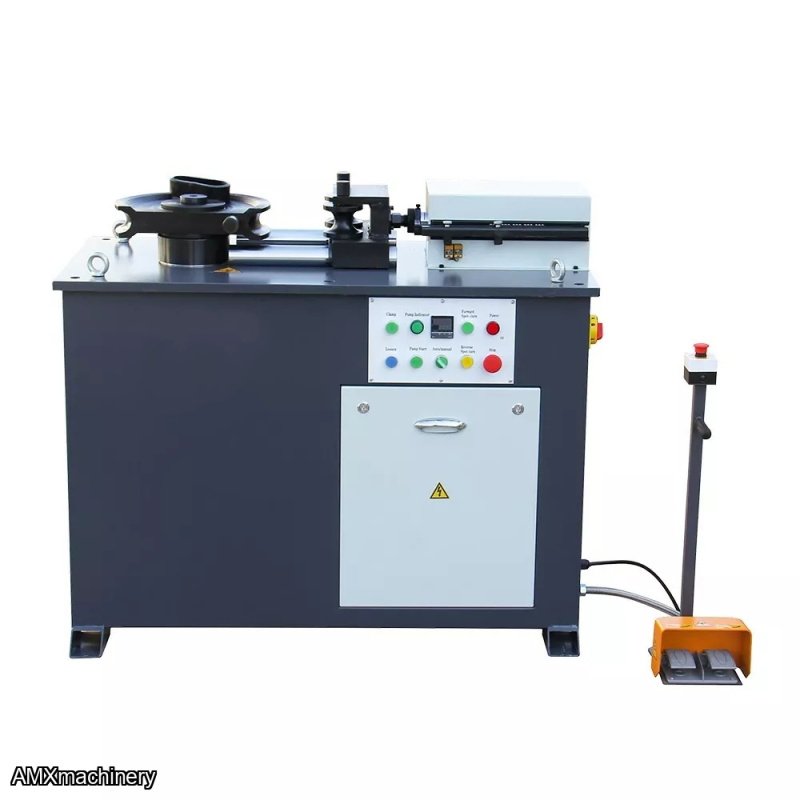

PARTE: 2KA-JTB-50 - DOBLADORA DE TUBO HIDRAULICA – CAPACIDAD 2”
Nueva con garantía
Features
Standard dies: 1〞,1-1/4〞,1-1/2〞,1-7/8〞
Wall thickness: 0.04〞-0.19〞
Hydraulic power drive, PLC Control
Bending workpieces such as low carbon round tubes, stainless round tubes, square tubes, and round steel bars to achieve desired shapes.
The equipment features "one-touch" operation on a single workpiece and data-program controlled mass processing.
Easy to operate, reasonable in composition, and low power consumption with high work efficiency.
Technical Specifications
Dimensions of Workpieces：
Round pipe： Max. 2” Min. ：5/8”
Stainless steel pipe： Max.1-1/2” Min. ：5/8”
Square pipe： Max. 2x2" Min. ：5/8”x 5/8”
Angle of Bending：180°
Rate of Main Shaft Rotation r/min : 5
Performance of Motor : 2.2 kW 1400 r/min
Hydraulic Motor for Specific Purpose ：1.1kW 1400 r/min
Packing Size ：57x27x46 in
N.W./G.W. : 1212 kgs / 1366 lbs
